3/4-inch Hydraulic Trailer Master Cylinder – 313001
Price
$25.00 Inc.GST
Shipping

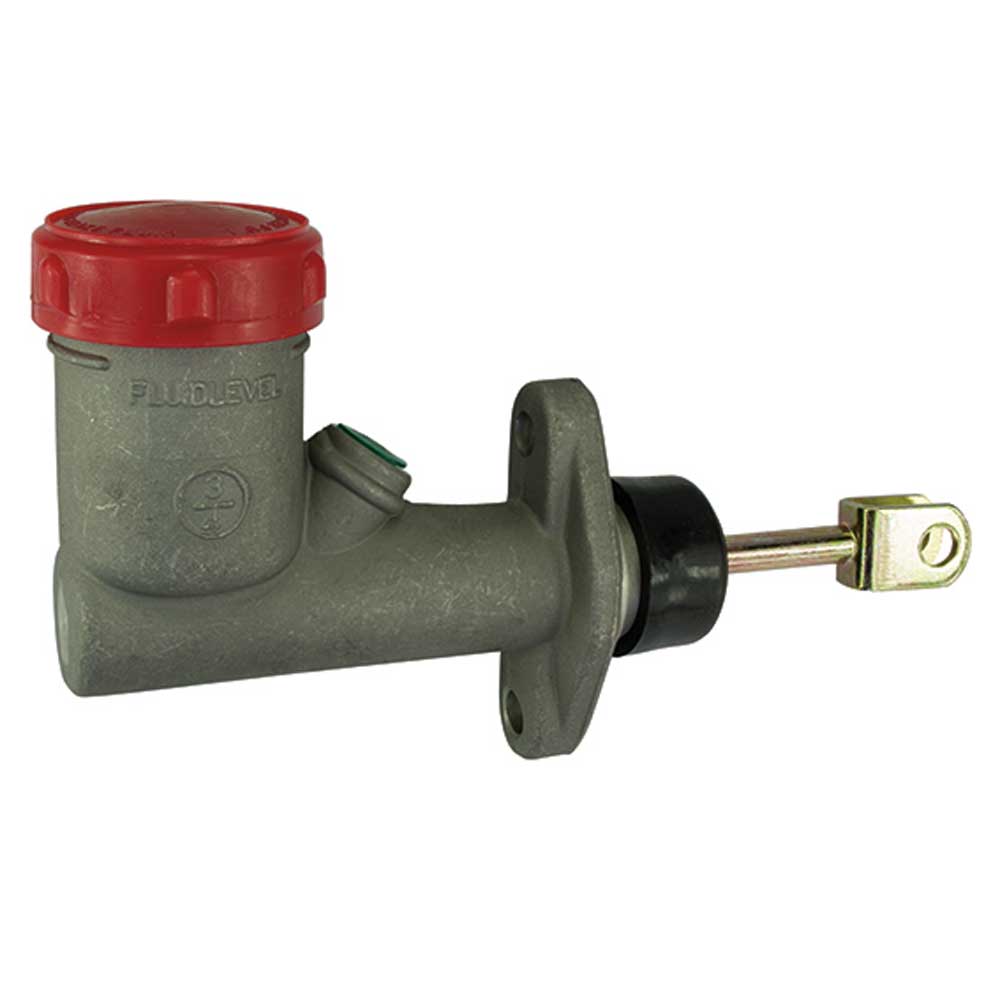

3/4-inch Hydraulic Trailer Master Cylinder
3/4-inch Hydraulic trailer master cylinder, 3/4 inch to suit 1450kg override couplings towing single axle trailers. Best suited to 14-inch, 15-inch and 16-inch wheels.
Bleed and adjusted brakes are the key to an efficient hydraulic braking system. Once the brakes bleed, tighten the nut on the back of the brake lever.
A zinc bracket is required brake for hydraulic braking systems.
- Fit the master cylinder bracket on the rear bolt mounts
- Bolt hole mounts are 54mm between centres
- Select 1/2-inch bolts that bolt right through your bracket, coupling and drawbar
- Disconnect the parking brake
- Adjust the lower nut 2mm from the back of the override, then lock it off.
Further, we have more information from our engineer
- you must have at least 2mm free play, between 2mm and 5mm when the hydraulic brake pads start to wear
- if there is no free play, as soon as the brakes start to work and get a little warm, you will begin to get brake build-up, increasing heat and burning out your brakes or even popping the seals in the master cylinder
3/4-inch inch Master Cylinder
The 3/4-inch master cylinder is the crucial braking component used on single-axle braked trailers with two-wheel cylinders.
3/4-inch inch refers to the piston bore size.
You’ll also buy various braking system components, such as 9-inch hydraulic brake shoes, hydraulic drum brakes, and electric brake parts.
What type of brake fluid should I use?
DOT 3 or DOT 4 should be used in your boat trailer. This type of hydraulic oil does not absorb water, and the silicone in DOT 5 makes the seals swell and can bind up caliper pistons.
Purchase spare parts and other trailer parts here
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 12 × 8 cm |
