60mm Standard Tandem Rocker Arm
Price
$115.00 Inc.GST
Shipping

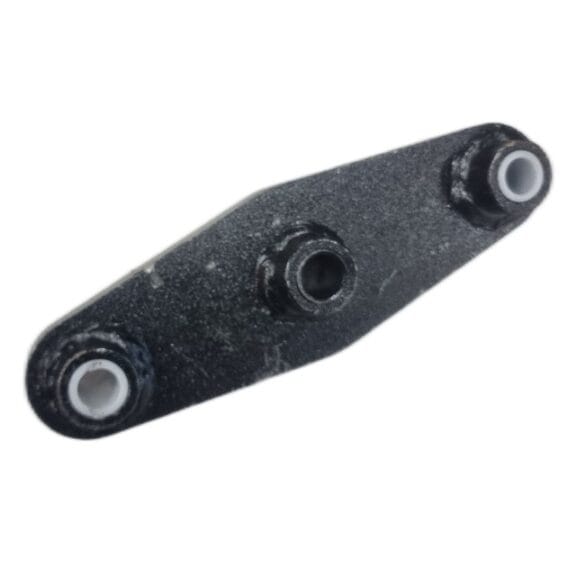

60mm Standard Tandem Rocker Arm
60mm standard tandem rocker arm fits AL-KO spring sets 576005, 576006 and 576007 series springs.
This tandem rocker arm fits these 60mm springs below
- 5 Leaf x 60mm Jayco Leaf Spring – 705mm
- 6 Leaf x 60mm Jayco Leaf Spring – 705mm
- 7 Leaf x 60mm Jayco Leaf Spring – 705mm
Specifications
- Material: K1045
- Spring bolt holes ID 16mm : OD 7/8-inch
- Centre bolt” 18mm
- Hole Centres: 200mm
- Made in Australia
Question: How do I measure the rocker arm in the correct size?
Answer: First, measure the arm’s diameter and the centres of the two outside bolt holes.
Select Shackle Bolt and Bush
- M16 Non-Greaseable Shackle Bolt
- M16 Greaseable Shackle Bolt
- M18 Standard Tandem Greaseable Shackle Bolt – 590710
- 60mm x 16mm Polyurethane Spring Bush
- 60mm Caravan Tandem Shackle Kit
Available Rocker Arm Centres
- 150mm – 45mm Wide Springs – (Australian Made)
- 45mm x 240mm Tandem Rocker Arm
- 245mm – 45mm Wide
- 245mm – 60mm Wide – G & S Chassis incl bushes
- Rocker Roller Arm – 18mm PIn
- Rocker Roller Arm – Zinc – 19mm Pin
9/16 x 7/8 spring bushes and a 5/8 or 16mm bush for the centre pin.
Shackle plates are generally placed on the rear of each spring; however, this rocker requires shackle plates to be attached to the rear of the front spring and the rear of the back spring.
To accurately locate the front and back holders, follow these instructions.
- Locate your centre hanger.
- Measure the spring from the centre of the eye to the centre of the eye—for example, 710mm.
- Measure from the rocker’s eye and add (spring length) 710mm, then add 25mm and clamp the hanger into position.
- Repeat the process for front and rear hangers.
The loop part of the spring points towards the rear of the trailer.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 20 × 10 × 10 cm |
