Manutec Rocker Roller Spring Kit – 60mm
Price
$540.80 – $794.00 Inc.GST
Shipping
Manutec Rocker Roller Suspension Springs (up to 4.5t)
Manutec rocker roller springs suit tandem trailer setups with 60mm wide leaf springs that provide a ride between air and standard rocker suspensions.
Individual springs are boxed, and hangers, bolts, and rocker arms are supplied separately.
Below is an image of perfectly installed rocker roller springs. Notice the hangers are stretched as far as possible so the loop is on the back of the holder.
This robust spring is ideal for the long haul, including caravans or horse floats, livestock, and other trailers where the ride is more forgiving than standard suspension systems.
When building a new dual axle trailer, it is advisable to allow 10% for consumables and non-consumables as Payload for your customer.
For example, if the desired payload is 3t, build the ATM to 3.3t or 3.5t.
If upgrading, check the capacity of your tow bar.
Checking your tow ball weight for better towing is a great idea. 5.5% -7% for tandem trailers.
Rocker Roller Suspension Vs Slipper Springs
60mm wide springs twist less and are more robust to withstand better shock loading events like potholes, railway lines, cattle grids and corrugations, to name a few.
If you are considering 45mm wide springs and a cheaper suspension system, you must consider whether your trailer will be susceptible to some harsh conditions or merely be a run-around town trailer.
The location of your spring hangers can create problems if installed incorrectly. Read more here.

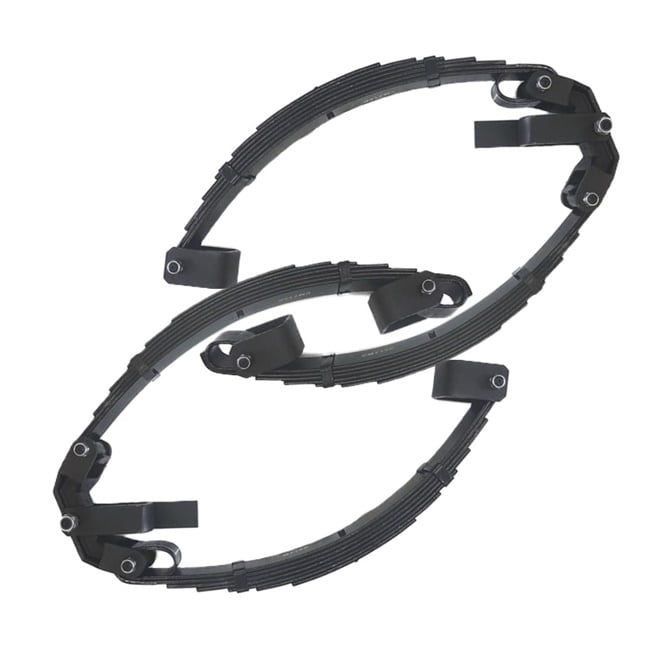

The rocker Roller Kit includes
4 springs, 2 x centre rocker, 2 x centre hanger, 2 x front and back hangers, bolts, and nylocks.
It is always advisable to install shock absorbers on trailer suspension systems.
Shock absorbers cushion spring rebound during pothole shock loading events. The cushioning effect increases bearing, hub, spring and trailer life.
Specifications
- 60mm
- Eye to Eye length 687mm
- Rocker Roller 60mm Steel Bush
- Free Camber 117mm
- Shackle Bolt Diameter 16mm
- Main Rocker Shackle Bolt 19mm
- Centre rocker hanger
- Front and Rear Hanger
- Rocker Arm
- Bush Dimensions 16mm x 22mm x 60mm
Rocker Roller Suspension ratings for the full range are here:-
- 5 Leaf – 2t on 14″ Wheels.
- 6 Leaf – 2.5t on 14″ Wheels.
- 7 Leaf – 3t on 14″ Wheels.
- 6 Leaf – 2.5t to 3t on 16″ Wheels.
- 7 Leaf – 3t on 16″ Wheels.
- 8 Leaf – 3.5t on 16″ wheels.
- 9 Leaf – 4t on 16″ wheels.
- 9 Leaf -4,5t on 16″ wheels.
- 8 Leaf x 6t x 65mm Rocker Roller Springs
- 8 Leaf x 6t x 65mm Rocker Roller Spring – Single
Tandem Trailer Rocker Roller Spring Setup
The length of rocker roller springs can vary from 1mm to 5mm. The best method to install is as follow:
- Weld the Center bracket into position, connect the centre rocker, and attach springs to the centre rocker.
- Install front and back spring hanger brackets onto the springs.
- Stretch the front spring as far as it will go and tack it onto your chassis rail.
- Stretch the back spring as far as it will go and tack it onto your chassis rail.
Other rocker roller parts found here
- Replacement Rocker Roller Spring Only
- Rocker Roller 60mm Steel Bush
- Galvanised Rocker Roller Springs – 60mm
- Single Rocker Roller Spring – Galvanised
Further, Manutec rocker roller springs are available by calling our sales team on 0733483822.
Finally, spring choices are important when considering new springs or upgrading old springs.
Replacement Spring Suspension Parts Available below
- 5 Leaf Front- 500kg per spring on 14-inch Wheels
- 5 Leaf Rear – 500kg per spring on 14-inch Wheels
- 6 Leaf x 14-inch Front Rocker Roller Replacement Spring (650kg)
- 6 Leaf x 4-inch Rear Rocker Roller Replacement Spring (650kg)
- 7 Leaf x 14-inch Rear Rocker Roller Replacement Spring (750kg)
- 7 Leaf x 14-inch Front Rocker Roller Replacement Spring (750kg)
- 5 Leaf x 16-inch Rocker Roller Replacement Spring (500kg)
- 6 Leaf x 16-inch Rocker Roller Replacement Spring (650kg)
- 7 Leaf x 16-inch Rocker Roller Replacement Spring (750kg)
- 8 Leaf x 16-inch Rocker Roller Replacement Spring (875kg)
- 16-inch x 9 Leaf Rocker Roller Replacement Spring (1000kg)
Additional information
| Weight | 59 kg |
|---|---|
| Dimensions | 100 × 40 × 15 cm |
| Select Spring Capacity | 5 Leaf – 2t – 14" Wheels, 6 Leaf – 2.5t – 14" Wheels, 7 Leaf – 3t – 14" Wheels, 6 Leaf – 2.5t – 16" Wheels, 7 Leaf – 3t – 16" Wheels, 8 Leaf – 3.5t – 16" wheels, 9 Leaf – 4t – 16" wheels, 9 Leaf – 4.5t -16" wheels . |
