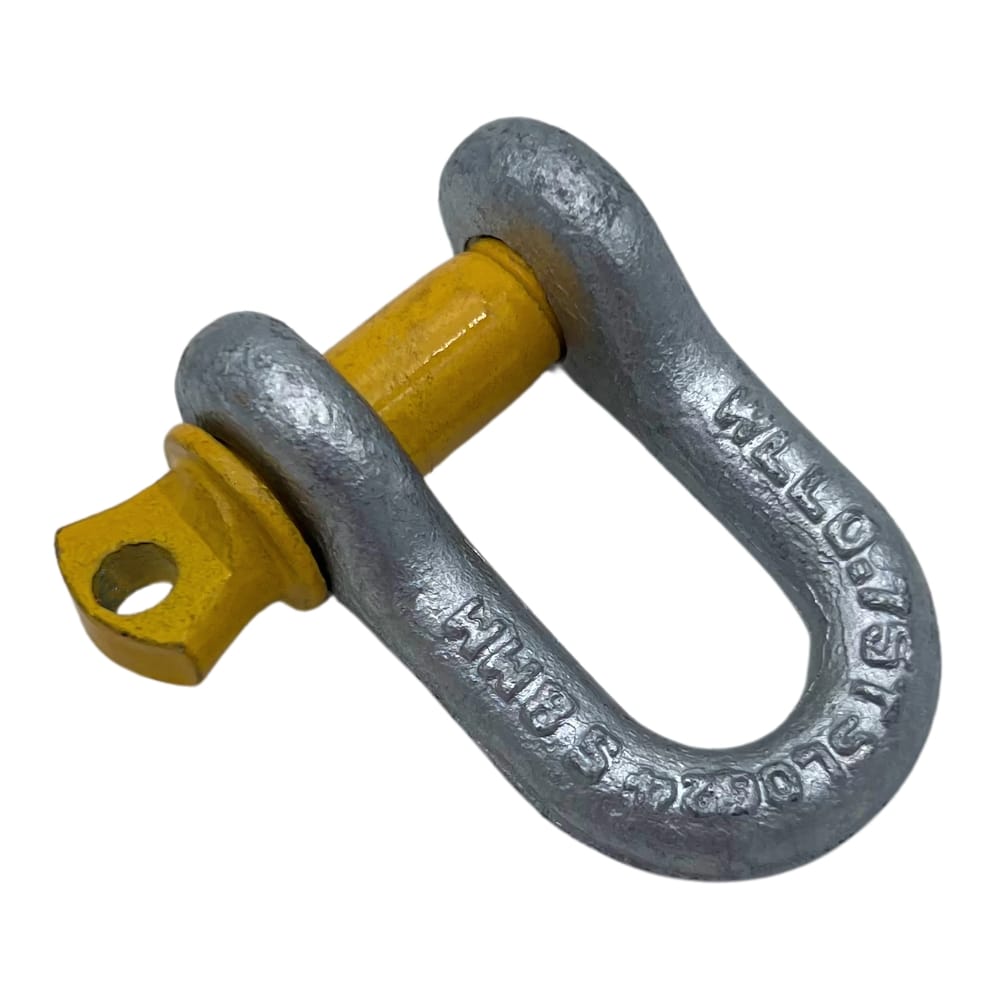

3.0t ATM Tow Bar D-Shackle (9.5mm)
$2.80
3.0t ATM Tow Bar D-Shackle joins trailer and caravan safety chains to vehicle tow bars.
✓ Secure and safe way to connect trailer chain.
✓ Suits caravans and trailers up to 3000kg (3.0t) ATM.
✓ Embossed (written) with capacities for road rule compliance.
Shipping
Safety Chain D-Shackle for Tow Bars | Maximum 3.0t ATM
All trailers in Australia, including caravans and campers, must be connected to the tow vehicle through a rated chain.
It’s common to use D-shackles as connectors between the safety chain and the tow bar. D-shackles are cheap, simple to attach/detach, and provide a secure connection, making them an easy choice for trailer and caravan owners.
Some find the pin’s size difficult to remove, in which case this 6mm chain hook set may be a more convenient option.
Regardless, D-Shackles are simple and get the job done!
D-Shackle Specifications & Applications
It’s essential to ensure you select the correct size D-Shackle for your trailer chain.
- Maximum ATM: 3.0t
- Pin Diameter: 9.5mm
- Proof Load: 14.8kN
- Break Load: 44.2kN
- Declaration of Compliance: AS2741
- WLL: 0.75t
Can you use D-shackles to extend the trailer safety chain? No, D-shackles cannot be linked together to extend chain length. Couplemate™ recommends using our rated G80 hammerlocks if you want to extend your safety chain.
Similar Tow Bar Components
Dee and Bow Shackles links
- 3.0t ATM Off-Road Galvanised Bow Shackle
- 6.0t ATM Off-Road Galvanised Bow Shackle
- 13.0t ATM Large Galvanised Bow Shackle
- 3.0t ATM Tow Bar D-Shackle (9.5mm)
- 4.0t ATM Tow Bar D-Shackle (10mm)
- 6.0t ATM Tow Bar D-Shackle (11mm)
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 10 × 13 × 3 cm |
| Max. ATM | 3000kg (3.0t) |
| Working Load Limit (WLL) | 0.75t |
