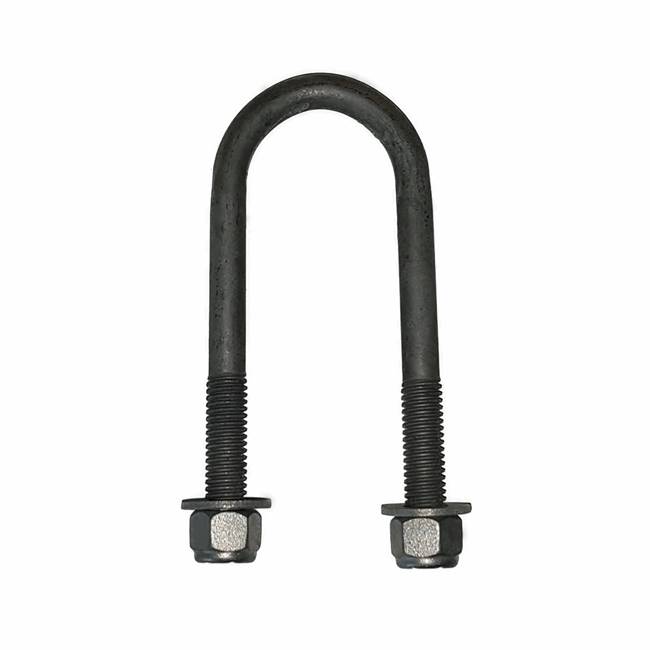

45mm x 140mm Round Galvanised U-Bolt
Price
$6.50 Inc.GST
U-bolt available from 100mm to 175mm lengths.
✓ Galvanised U-bracket with 60mm thread length.
✓ Includes 2 x Galvanised Nyloc nuts (1/2″ BSW).
✓ Measurements reflect internal U-Bolt dimensions.
Shipping
45mm x 140mm Round Galvanised U-Bolt
45mm round galvanised u-bolt by Couplemate, Available Sizes 100mm, 115mm, 125mm, 140mm, 150mm, 162mm, 175mm
Rolled threads with gal flat washer plus gal nylock. The thread length is 60mm.
How do I calculate the correct length, measure
- Spring width plus
- Axle Pad 8mm plus
- Axle width plus
- Nyloc plus
How to Measure U-bolts
Measure U-bolts from the inside of the U-bolt to the tip of the thread.
It would be best to retighten u-bolts approximately 200lkms after installation due to steel’s ability to stretch a little under load.
Furthermore, we stress that we tested these U-bolts during the manufacture and batch tests until their destruction.
Destruction loads exceed 17,000kg for 1/2-inch galvanised U-bolts.
Finally, our u-bolts are derated to 375kg each or 1500kg per set of 4 or enough u-bolts to suit a single axle.
The max rating of 750kg axles is 750kg with a u-bolt rating of 1500kg.
45mm Round U-Bolt Lengths
- 100mm x 45mm Round
- 115mm x 45mm Round
- 125mm x 45mm Round
- 140mm x 45mm Round
- 150mm x 45mm Round
- 165mm x 45mm Round
- 175mm x 45mm Round
News Articles
- Read why U-bolts could be the primary cause of accidents.
- This article is the catastrophic result of the incorrect tightening of the U-bolt on a truck chassis.
Galvanised U-bolt clamp lits are listed below
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 6 × 6 × 6 cm |
| U-Bolt Width | 45mm |
| Bolt Diameter | 12.7mm |
| Fastener Type | U-Bolt |
| Coating | Galvanised |
| Stud Thread | 1/2" BSW |
