50mm Round Axle & Spring U-Bolt Kits
$49.81 – $53.55
✓ Suits 50mm round axles.
✓ Uses galvanised u-bolts and plates (great for boat trailers).
✓ Easily DIY spring and axle maintenance at home with this complete kit.
See technical diagram for u-bolt measurements.
Shipping
50mm Round Axle U-Bolt Kits
The Couplemate™ 50mm u-bolt kit for round axles includes u-bolts, nylock nuts, and fish plates.
Spring U-Bolt Kits are designed to safely secure leaf springs to trailer and caravan axles. U-bolts are link between your trailer and the road, hence the importance of using u-bolts made from high-quality materials.
Why U-bolts May be the Major Cause of Accidents. Click here
This U-Bolt Kit is supplied with:
- 4 x U-Bolts (choose preferred length)
- 8 x Washers
- 8 x Nyloc nuts
- 2 x Fish Plates
- 2 x Axle Pads/Spacers
50mm Round U-Bolt Specifications

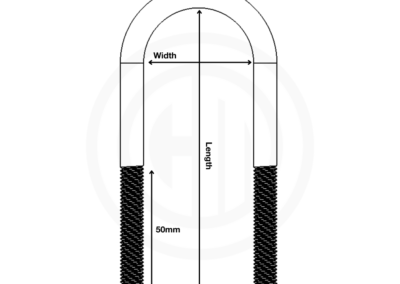

U-Bolts are measured on their internal dimensions to ensure proper fit and alignment with the equipment. See our technical diagram for a visual reference.
- Internal U-Bolt Width: 50mm
- Internal U-Bolt Leg Length:
- 125mm (5″)
- 150mm (6″)
- 175mm (7″)
- Thread: 1/2″ UNF (12.7mm)
- Coating: Traditional hot-dipped galvanised
Couplemate™️ supplies these 50mm round u-bolt kits for leaf spring suspension systems.
Installation (User Guide)
Couplemate™️ 50mm Round U-Bolt Kits are easy for trailer spring maintenance.
- Place U-shaped curve over axle beam.
- Align the centre spring bolt and U-bolt legs with the fish plate holes.
- Secure fish plate to leaf spring through supplied washers and nylock nuts. Tighten nuts to 60Nm with a socket.
Important: Check U-bolts and re-tighten nuts after the first trip and every 250 km thereafter.
Safety Precautions
- Do not re-use nyloc nuts. Nyloc nuts are often less effective after the first use. This is because the nylon material (the key component of a nyloc nut) has already once conformed to the thread profile.
- Do not use a rattle gun to tighten. Rattle guns often tighten u-bolts too fast, too tight, and uneven. This can cause nylon overheat and risks undue wear.
- Ensure the axle has welded axle pads. If not, use the axle pads supplied with the spring U-bolt kit.
Available U Bolt Kits
Additional information
| Weight | 4.9 kg |
|---|---|
| Dimensions | 25 × 15 × 5 cm |
| U-Bolt Length | 125mm, 150mm, 175mm |
| U-Bolt Width | 50mm |
| Coating | Galvanised |
| Stud Thread | 1/2" BSW |
| U-Bolt Application | Spring U-Bolts |
| Bolt Diameter | 12.7mm |
| Spacer Plate Type | Fish Plate, Spring Spacer |
| Fastener Type |
