45mm Square Heavy Duty U-Bolt Kit (150mm)
Price
$85.00 Inc.GST
The Couplemate™️ 45mm Square U-Bolt Kit (M16) provides a strong and secure connection. It is perfect for trailers and caravans up to 4500kg ATM and is suitable for saltwater applications.
✓ Strong steel U-bolts and plates.
✓ Electro-plated for corrosion resistance.
✓ Includes galvanised nyloc nuts and zinc washers.
Shipping
45mm Square Heavy-Duty U-Bolt Kit – Medium & Heavy-Duty Trailers
The Couplemate™ CM601 is a Spring U-bolt kit for 45mm square axles. Designed to secure leaf springs to the axle safely, Couplemate™️ calls these the “heavy-duty” kits because they have thicker U-bolts and fish plates.
Product Specifications
- Internal U-Bolt Width: 45mm
- Internal U-Bolt Leg Length: 150mm
- Thread Type: M16x2 (or 5/8″ UNF)
- Coating: Electro-Plated
Couplemate™️ often supplies Heavy-Duty u-bolt kits with trailer axle rebuilds over 1600kg (up to 4500kg ATM).

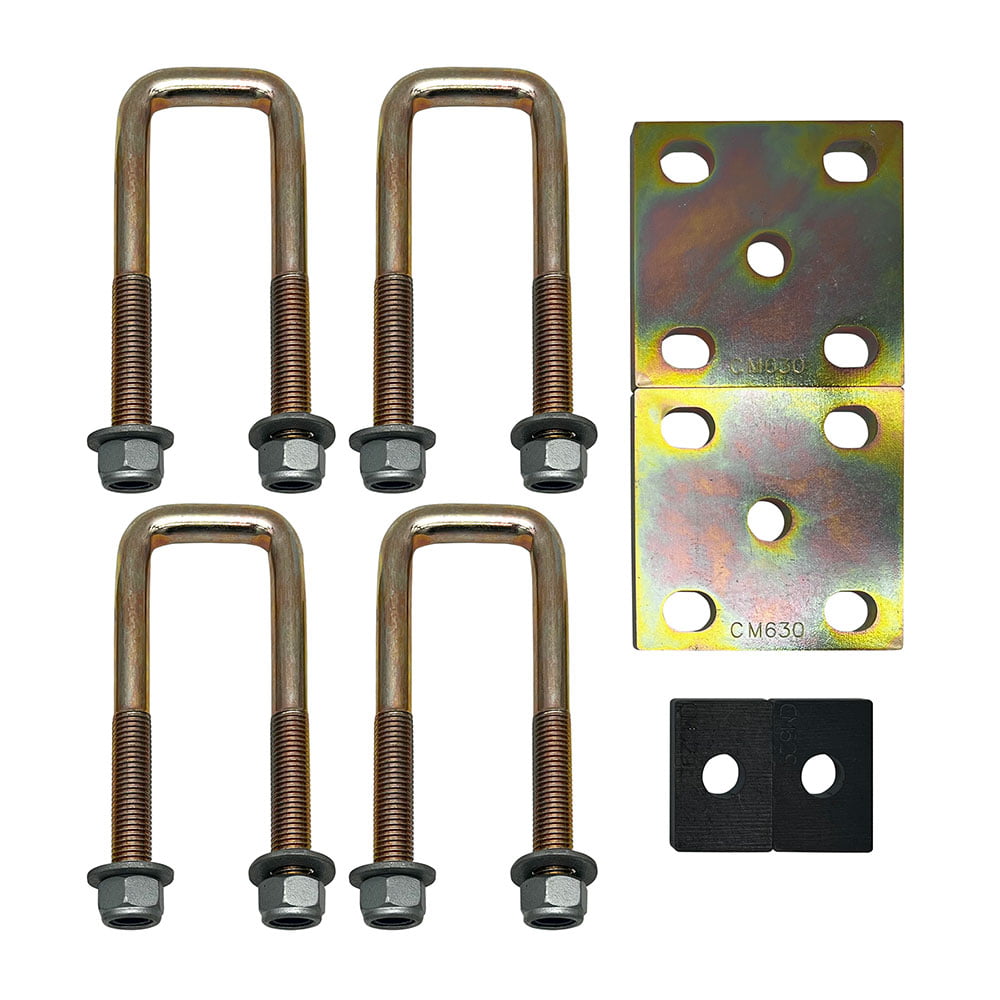

This kit is supplied with:

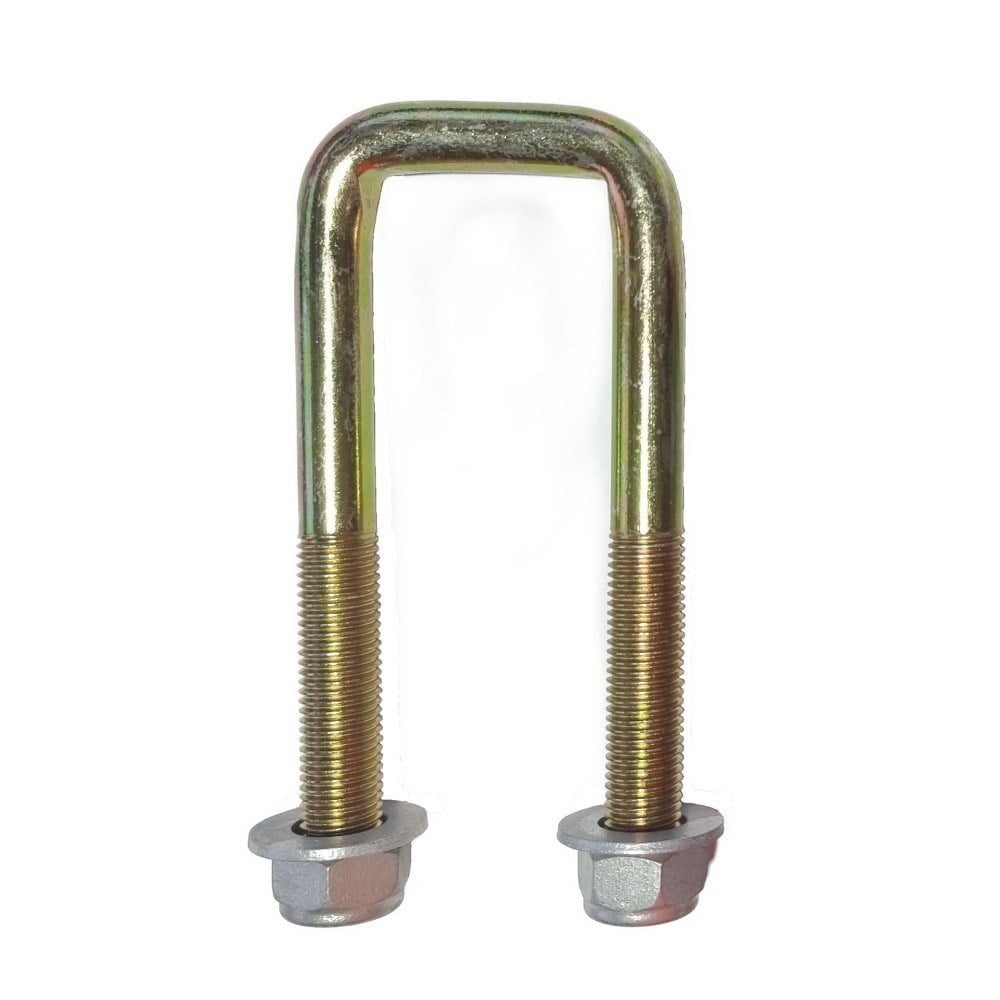

- 4 x U-Bolts
- 8 x Washers
- 8 x Nyloc nuts

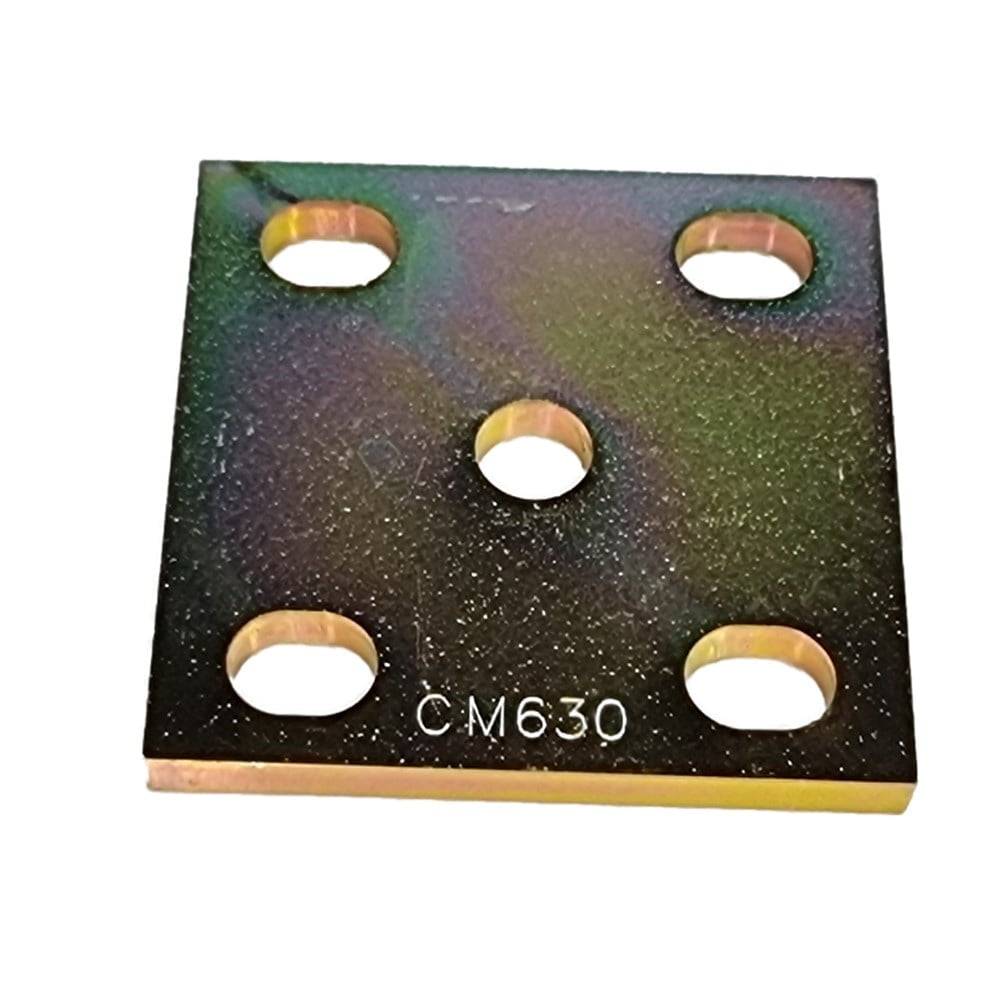

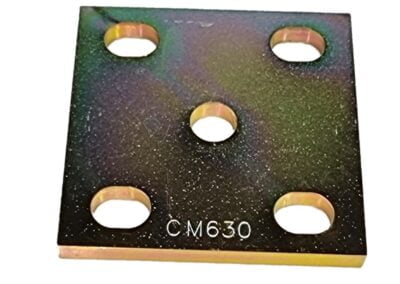

- 2 x Fish Plates

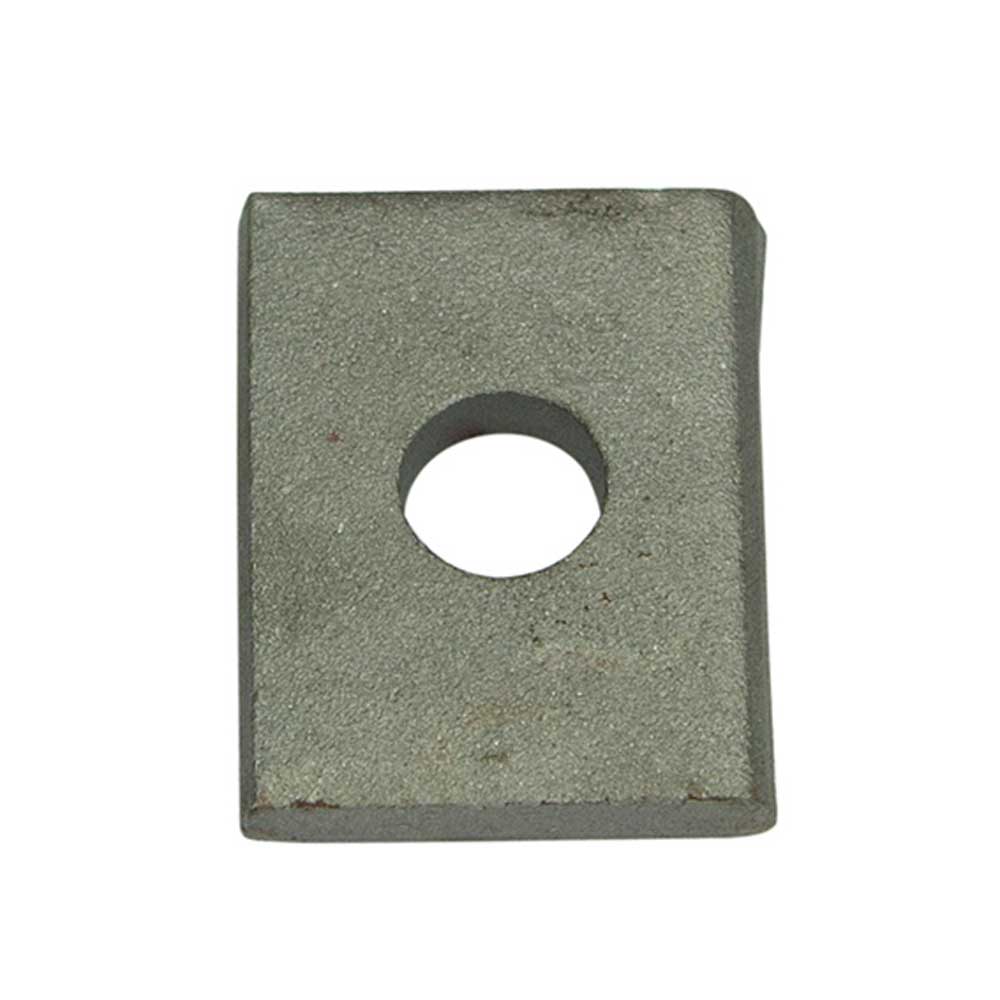

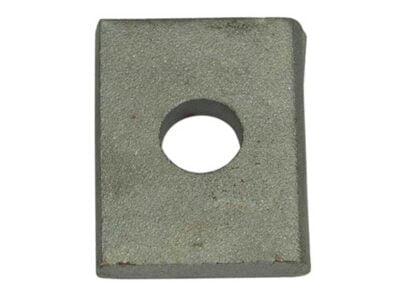

- 2 x Axle Pads/Spacers
Installation (User Guide)
Couplemate™️ 45mm Square U-Bolt Kits are easy for trailer spring maintenance.
- Place a U-shaped curve over the axle beam.
- Align the centre spring bolt and U-bolt legs with the fish plate holes.
- Secure fish plate to leaf spring through supplied washers and nylock nuts. Tighten nuts to 100Nm with a socket.
Important: Check U-bolts and re-tighten nuts after the first trip and every 250 km thereafter.
Safety Precautions
Do not reuse nylon nuts. Nyloc nuts are often less effective after the first use because the nylon material (the key component of a nylon nut) has already conformed to the thread profile.
Do not use a rattle gun to tighten. Rattle guns often tighten U-bolts too fast, too tight, and unevenly. This can cause the nylon to overheat and risk undue wear.
Ensure the axle has welded axle pads. If not, use the axle pads supplied with the spring U-bolt kit.
Related Towing Products
- 45mm Square Heavy Duty U-Bolt Kit
- 50mm Square x M16 U-Bolt Kit – 180mm Long
- 60mm Round Heavy Duty U-Bolt Kit
- 65mm Round x 16mm U-Bolt Kit – 200mm Long
Are 16mm Heavy-Duty U-Bolts worth it?
Within the industry, Trailer U-Bolts lack a standardised testing procedure.
However, Couplemate™ Engineers has developed its rigorous testing method. In this process, we subject u-bolts, nuts, and fish plates to a static load test until destruction occurs.
All of our 16mm Heavy-Duty U-bolt Galvanised Kits undergo a 200-tonne test. During this testing, the u-bolts in the right-hand image ultimately broke at the 23t threshold.
The u-bolts in the right-hand image broke at 23t.
Understanding Caravan and Trailer U-Bolts
- Read why U-bolts could be the primary cause of accidents.
- Loose Axle U-Bolts cause Highway Havoc.
- This article is the catastrophic result of the incorrect tightening of the U-bolt on a truck chassis.
- How to Reduce Dangerous Caravan Vibration Fatigue
- Heavy Duty Trailer Guide and Lock 3.5t Rated
16mm Individual U-Bolts
- 45mm x 16mm Square ElectroGal U-Bolt
- 50mm x 16mm Square ElectroGal U-Bolt
- 60mm x 16mm Round ElectroGal U-Bolt
- 65mm x 16mm Round ElectroGal U-Bolt
Additional information
| Weight | 4.5 kg |
|---|---|
| Dimensions | 20 × 10 × 5 cm |
| U-Bolt Length | 150mm |
| U-Bolt Width | 45mm |
| Coating | Electro-Plated |
| Stud Thread | 5/8" UNF, M16x2 |
| Bolt Diameter | 16mm |
| Fastener Type | U-Bolt |
| U-Bolt Application | Spring U-Bolts |
| Spacer Plate Type | Fish Plate, Spring Spacer |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
