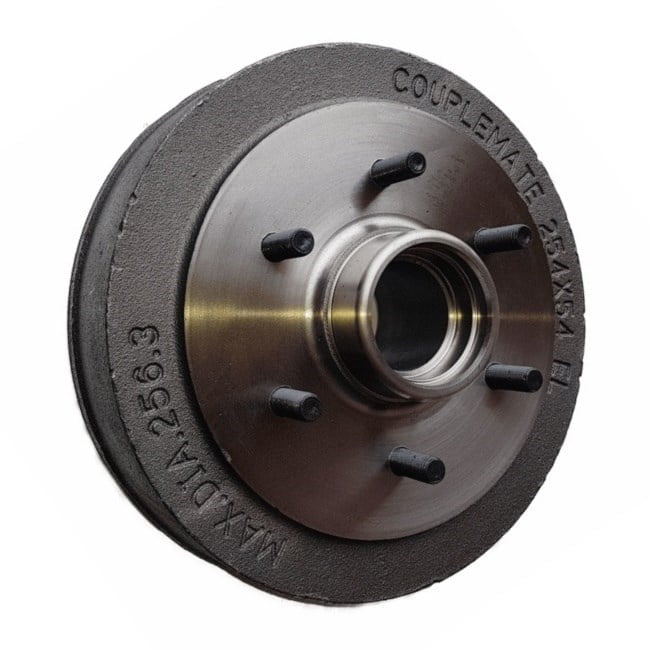

10-inch 6 Stud Landcruiser Parallel Brake Drum
$125.00
What makes Couplemate™ Brake Drums superior?
✓ Made from high-quality materials for longer service.
✓ Ensures consistent and safe trailer braking.
✓ Purchasing directly supports the Australian economy.
Designed and manufactured by Couplemate™ Australia.
Shipping
10-inch 6 Stud Landcruiser Parallel Brake Drum for Caravans, Trailers and Campers
When you’re out in the Australian outback, the last thing anyone wants is a brake failure due to low-quality drums.
Quality brake drums are crucial for caravans because they play a significant role in stopping the caravan safely and efficiently. Due to the added weight and momentum, the brakes are under considerable stress when towing a caravan. The brake drums must withstand high temperatures, extreme pressure, and constant wear and tear.
These brake drums are most commonly used for 10″ electric backing plates but also suit 10″ mechanical backing plates and 10″ hydraulic backing plates.
Product Specifications
- Materials: Grey Iron
- Max. Diameter: 256.3mm
- Width: 54mm
- Stud Thread: 1/2-inch UNF
- Suits Bearings:
10-inch brake drums are often marked with 254 x 54 EL. N.B. Drums are not supplied with nuts.
List of Available Parallel Drums
- 10-inch Ford Parallel Brake Drum
- 10-inch 6 Stud Landcruiser Parallel Brake Drum
- 10-inch 5 Stud Landcruiser Parallel Brake Drum
- M14 10-inch 5 Stud Landcruiser Parallel Brake Drum
What makes Low-Quality Drums Dangerous?
A few years ago, Couplemate™ was worried about the increasing loss of quality and complaints from imported drums. We decided to make a better 10-inch drum brake to ensure electric brake drums were first-class and we could own a quality product.
Low-quality or worn brake drums can cause a range of problems, including:
- Reduced stopping power
- Increased stopping distances
- Excessive heat buildup
- Complete brake failure
This can be extremely dangerous, particularly when driving on steep or winding roads. This can result in costly repairs and replacements and potential safety hazards.
What makes Couplemate™ 10-inch Electric Brake Drums Superior?
By investing in high-quality brake drums that are specifically designed for caravans and other towing applications, you can ensure that your braking system is reliable and effective.
Quality brake drums will provide consistent stopping power, reduce the risk of overheating, and ultimately help to keep you and your passengers safe while on the road.
Our engineers discovered and discussed porosity as a significant cause of braking inefficiencies. Porosity is a series of holes in a casting that causes lower brake shoe adhesion. , a porous surface will have less braking resistance than a non-porous surface.
The best way to explain how to remove air from steel is to understand how air is expelled from concrete. Shaking or vibrating the tooling containing a drum casting effectively removes air bubbles, significantly reducing porosity.
Further, our craftsman looks for signs of porosity during the machining process. When found, drums are rejected, scraped, and returned to the furnace. As a result, you can be assured that the drums you have purchased have undergone rigorous testing and inspection processes.
Today, we sell Australian-made 10-inch brake drums to the RV markets and retail consumption.
Stud Pattern Options
Couplemate™ makes these drums in-house so that we can offer a wide range of stud patterns for all setups.
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 30 × 30 × 10 cm |
| Bearing Profile | Parallel (PLL) |
| Bolt Pattern (PCD) | |
| NSK Bearing # | 68149/10 |
| Stud Thread | 1/2" UNF – 490300-ALKO |
| Hub Boss Dia | 85.8mm |
