10-inch Hydraulic Brake – Right

SKU: HBK10R Categories: ,

$110.00

6 in stock

6 in stock

Frequently Bought Together

10″ Electric Brake Backing Plate – L/H

10″ Electric Backing Plate will suit:

Couplemate Australia
AL-KO / Dexter
✓ Vehicle Components / Cruisemaster

Couplemate accepts PayPal, Visa and Mastercard.

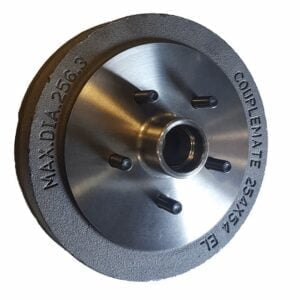

10 inch electric drum

These Hydraulic Backing Plates fit all 10-inch drums – Click the image to purchase.

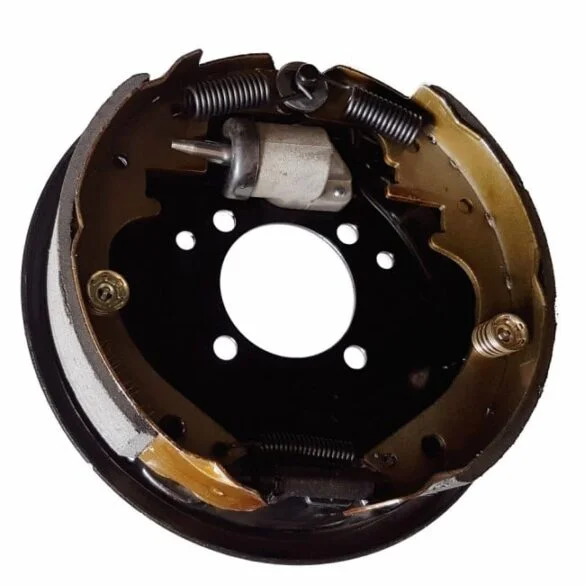

10-inch Dexter style Hydraulic Brake – Right

Replacement Hydraulic Backing Plates are similar to the reliable and efficient Dexter parts used in the automotive industry for many years.

This universal hydraulic backing plate replaces all backing plates except the older Westco versions.

You will need to cut and reinstall your weld ring if replacing older versions.

Install an adjuster on the bottom of the backing plate.

Hydraulic brake backing plates are sold on the Left and Right. The right side is the driver’s side.

Furthermore, replacing the entire assembly is more accessible than installing replacement hydraulic brake shoes or wheel cylinders.

Note 9″ and 10″  brake cylinders are not interchangeable.

10-inch Hydraulic Brake Specifications

  • 10-inch x 2-1/4 inch Right-hand side or Left-Hand side Hydraulic Brake Assembly
  • 1590kg capacity per pair
  • Single-wheel cylinder (Most Common Style)
  • Used with 10″ Hub/Drums
  • Mounting studs included

Tip: Look inside your wheel cylinder connection to see if there is an olive locator for your hydraulic hose. If not, you will require an adaptor nut.

Purchase Replacement Hydraulic Backing Plate spare parts below:

Additional information

Weight3 kg
Dimensions25 × 25 × 10 cm
