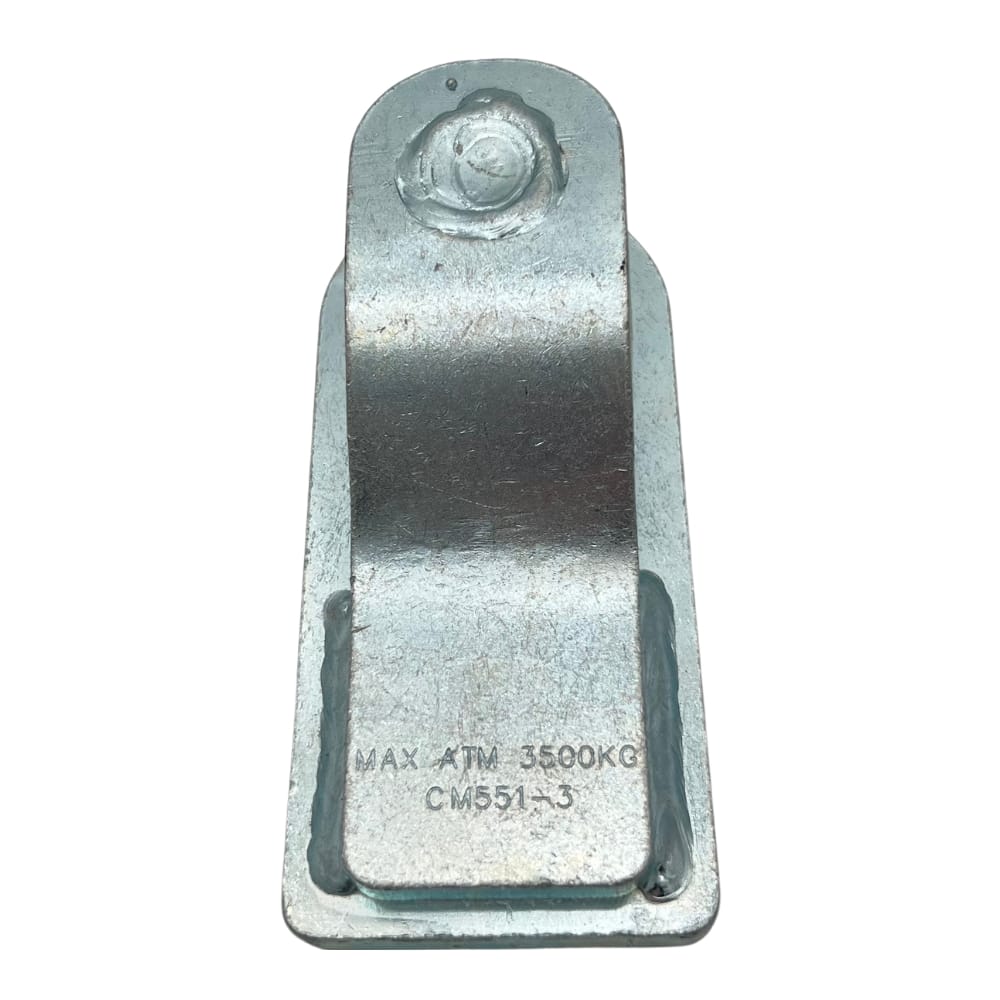

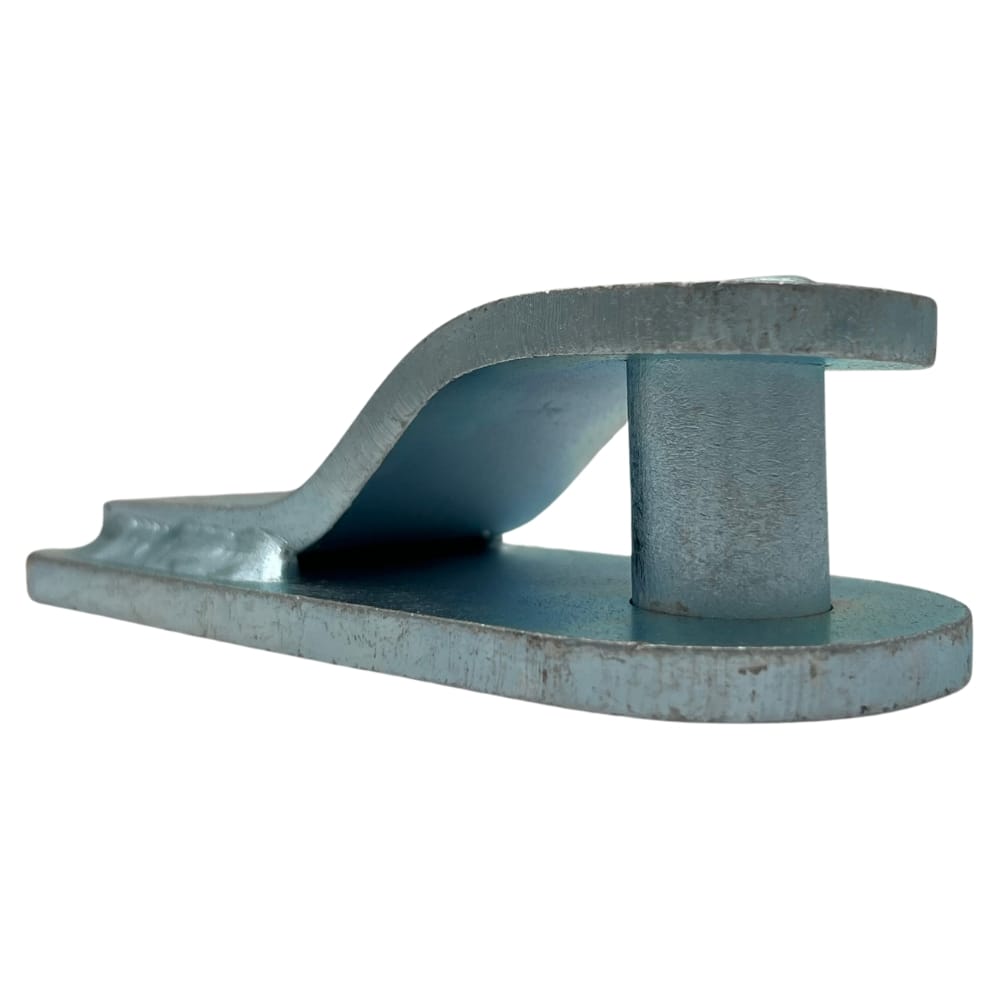

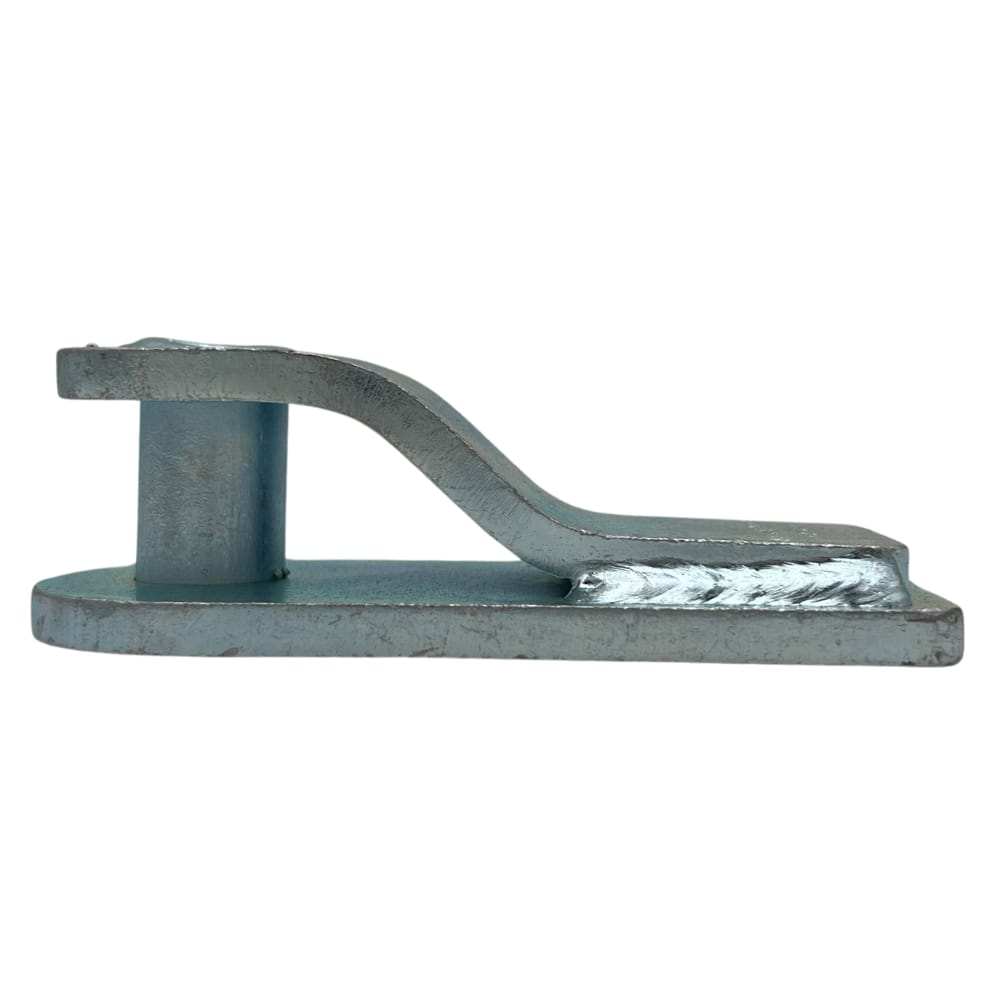

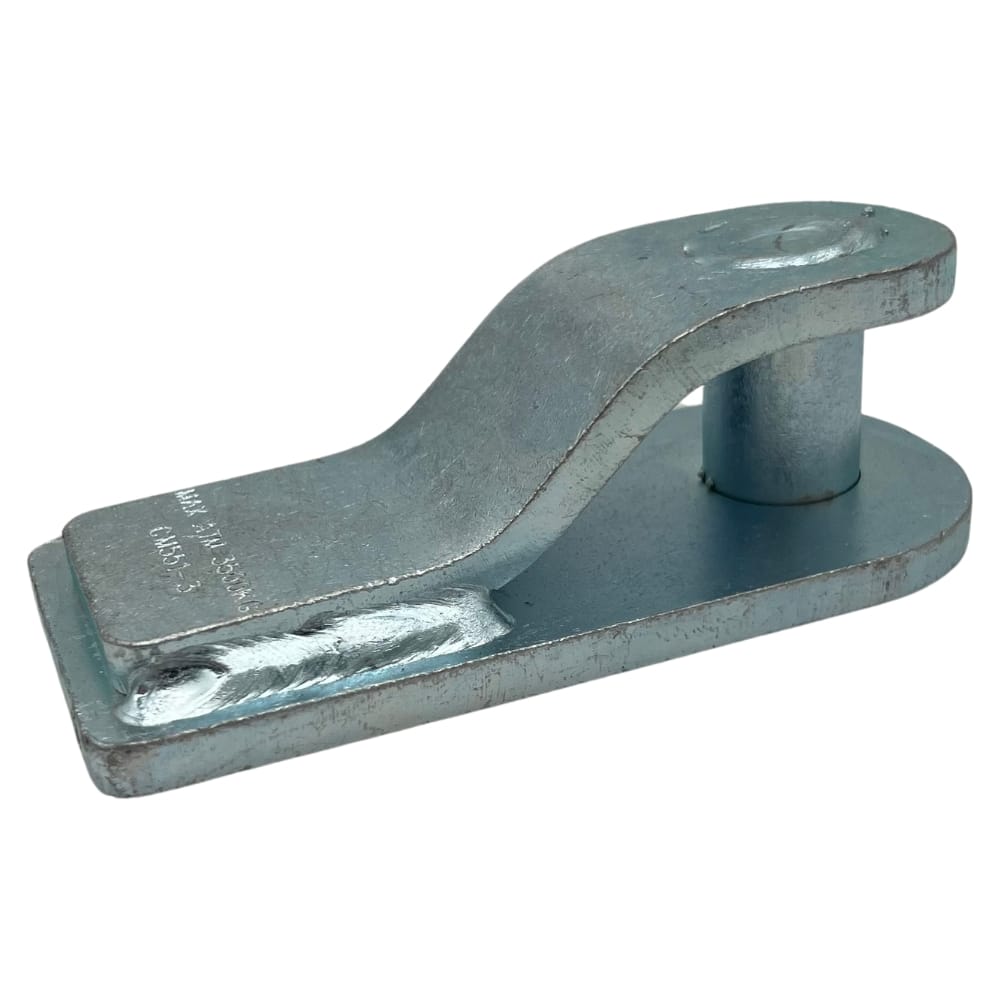

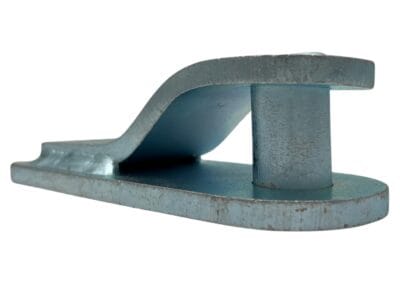

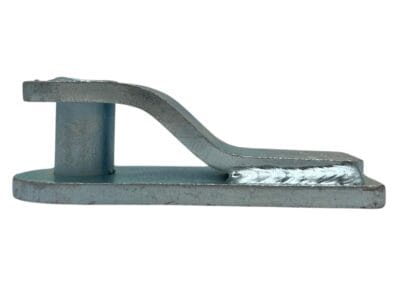

Drawbar Safety Chain Holder – 3.5t ATM Rated
Price
$39.00 Inc.GST
Safety Chain Holder Benefits
✓ Rated to maximum 3500kg ATM.
✓ Suits 10mm and 13mm applications.
✓ Robust, high tensile steel retaining pin.
✓ Australian-made in Brisbane, Queensland.
✓ Zinc finish for rust and corrosion resistance.
Shipping
Australian-Made Safety Chain Holder (3.5t ATM)
Safety chain holders are integral to towing safety. Like most things in the towing industry, the type and size of your chain connection largely depends on your Aggregate Trailer Mass (ATM). This chain holder has been tested and rated to a maximum 3500kg ATM per ADR 62/02 requirements.

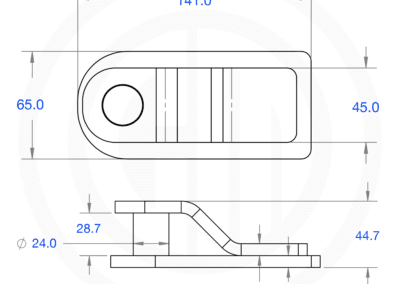

See wireframe schematic for measurements: Chain Holder Technical Drawing
2.5t ATM Applications (10mm Chain)
Australian trailers 2500kg ATM or under must have (at least) one safety chain connection compliant with AS 4177.
In most cases, this will be a 10mm chain, hammerlock, and a drawbar connector. This drawbar holder is included in all Couplemate™ 2500kg ATM Safety Chain Connection Kits.
3.5t ATM Applications (13mm Chain)
Australian trailers over the 2500kg ATM mark, and up to 3500kg ATM, must have two safety chain connection compliant with AS 4177.
If you have a 3.5t ATM caravan, you’ll likely have two rated 13mm chains, hammerlocks, and drawbar connectors. This drawbar holder is included in all Couplemate™ 3500kg ATM Safety Chain Connection Kits.
Need a higher rating? Shop all drawbar chain connectors here.
Installation Guide
Your trailer and/or caravan drawbar material must be 3mm or thicker. If you have an aluminium chassis, you will require the alternative version: Aluminium Drawbar Chain Holder
Orientation & Welding
- The long side of the holder must be horizontal with the ground.
- The retaining pin must point to the front of the trailer (i.e. toward tow vehicle).
- Weld completely along the top and bottom sides of the component.
- Weld leg must be 6mm thick (minimum).
Refer to the image below.
Orientation and weld bead thickness for the CM551-3 (Safety Chain Holder).
How to attached Safety Chain to an Aluminium Chassis
Links to Caravaning and Towing News
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 8 × 5 cm |
| Coating | Zinc |
| Max. ATM | |
| Materials | 250G Steel, High Tensile Steel (4140) |
