Cruisemaster DO35 3.5t Off-Road Coupling – No Handbrake
Price
$450.00 Inc.GST
Shipping
Cruisemaster DO35 V3 Plus 3.5t Offroad Coupling – No Handbrake
The Cruisemaster DO35 V3 Plus, electric hitch kit, offers handbrake and no-handbrake models, accessories, and mounting bolt kits. It is built for quiet operation in harsh Australian conditions.

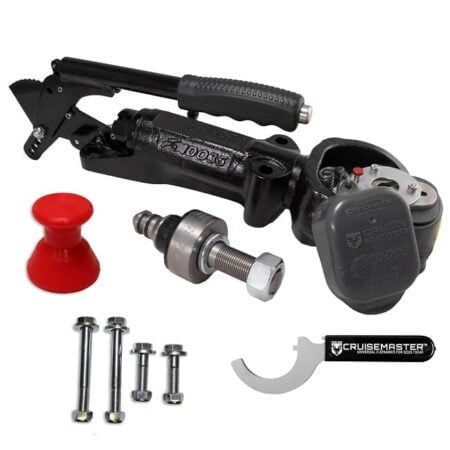

Coupling Kit includes
- Coupling and Handbrake
- Tow Pin Mount
- Tow Pin Cover
- Mounting Bolts
- Spanner to help tighten the tow pin.
Note: The distance between the bottom of the coupling and the top of the handbrake is 119mm.
The DO35 has four boltholes with standard Australian centres (185mm vertical and 54mm horizontal).
For more information, view the Cruisemaster DO35 Specification sheet here.
DO35 and DO45 locking mechanisms protect your trailer and your belongings in the trailer.

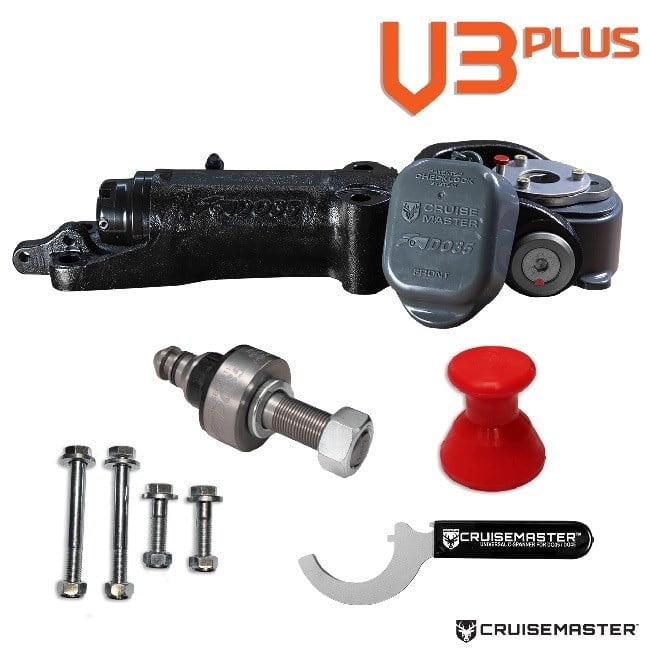

Lastest Version Cruisemaster DO35 V3plus
Many of the Cruisemaster® team thought the DO35 version 2 (DO35v3) was hard to beat. However, once again, the engineering team has proven why they are the best in the business.
The new DO35 Version 3 (DO35v3) is the most robust coupling we have ever made; it even bent our test rig!
Tow Ball Hitches and Receiver Kits
Necessary: We recommend offroad couplings of all brands use a solid cast receiver hitch. Hollow receivers have a welded tongue that distorts in extreme offroad conditions and under shock loading events on the highway.
Key *New* V3Plus Exclusive Features
- Patented “Check lock” Gen.2 Dust Cap & Bumper for an easy, secure seal
- Improved Bumper moulding gives the reflector strip improved staying power
- Rear support webbing allows for mounting upside down on the underside of the drawbar
* Checked on HR Classic, HR Standard, Milford and EZ-lift for compatibility with the DO35. The compatibility of WDH and Drawbar is a separate consideration.
Questions
Does the Cruisemaster DO35 V3 Plus couple to a tow ball? No.
What is the drop weight or down weight on a coupling? Generally, the S Value is between 7% and 10% of the ATM.
Purchase Associated Products Here:
- DO35 3.5t Tow Pin Kit
- DO35 Coupling Lock
- Cruisemaster DO35 3.5t Off-Road Coupling – Incl Handbrake
- 50mm Tow Bar Receiver Hitch
- 100mm Drop Tow Bar Receiver Hitch Kits 3.5t
- 50mm Tow Bar Receiver Hitch
- 70mm Tow Ball x 4-inch Drop Tow Hitch Receiver
*Please note that the DO35’s Zn-Ni with E-Coat provides superior protection. It may fade with extended exposure to UV. This does not affect the operation of the DO35. We recommend covering the DO35 coupling when not in use to maintain the product.
International sales welcome. Daily dispatches via Australia Post Air Express.
Additional information
| Weight | 14 kg |
|---|---|
| Dimensions | 40 × 15 × 15 cm |
