9 Leaf Outback Rebound Off-Road Replacement Spring

Part No: SHACKLE-60-845-9-Outback-M Category: Tag:
Part No: SHACKLE-60-845-9-Outback-M Category: Tag:

Price

$175.00 Inc.GST

Frequently Bought Together

Outback Hanger Kit (One Side)

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

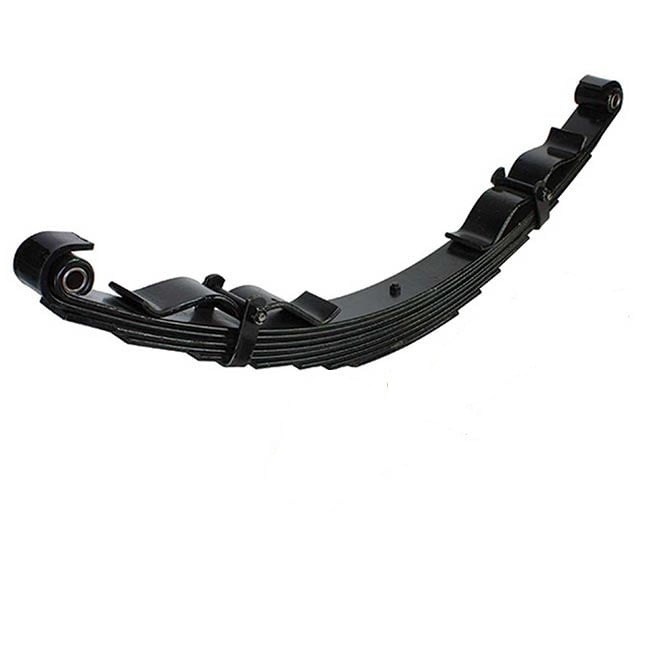

9 Leaf Outback Rebound Off-Road Camper Replacement Spring

The 9 Leaf Outback rebound off-road leaf replacement springs are renowned for their durability in heavy off-road conditions.

Specifications

  • Eye to Eye Rebound Leaf Spring – 841mm long.
  • The weight in the description is for two springs.
  • 2000kg per pair
  • Hangers and Shackle Bolts are not included.
  • 60mm x 7mm
  • Steel Bush dimensions 5/8 inch x 7/8 inch x 60mm.
  • Free Camber 158mm
  • Eye to Center Bolt 420mm
  • Install a spring rear hanger 35mm longer than the length of the spring.
  • The second leaf in the Outback Spring series wraps around the eye to provide extra support during shock-loading events.

Outback Rebound leaf spring ratings per pair.

Spring eye has inserted a steel bush to ensure long wearing in harsh terrains. This steel bush does require periodical greasing.

Tip: Tighten shackle bolts until hangers are tight against the spring. Then back off the nut 1/2 a turn.

Parts for the outback rebound camper spring are at these links below,

Couplemate recommends pre-greasing shackle bolts before insertion into spring bushes.

Additional information

Weight14 kg
Dimensions93 × 30 × 10 cm
