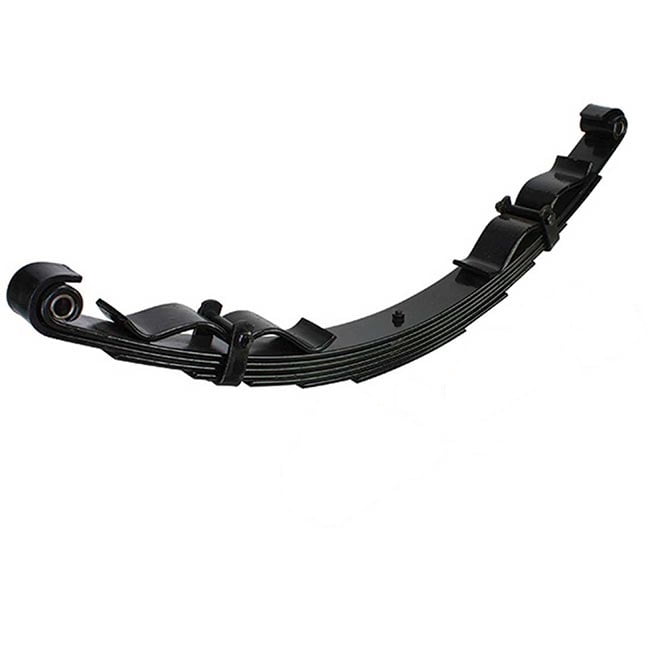

7 Leaf Outback Rebound Off-Road Replacement Spring
Price
$162.00 Inc.GST
Shipping
7 Leaf Outback Rebound Off-Road Camper Replacement Spring
The 7 Leaf Outback rebound off-road leaf replacement springs are renowned for their durability in heavy off-road conditions.
Specifications
- Eye to Eye Rebound Leaf Spring – 841mm long.
- The weight in the description is for two springs.
- 1500kg per pair
- Hangers and Shackle Bolts are not included.
- 60mm x 7mm
- Steel Bush dimensions 5/8 inch x 7/8 inch x 60mm.
- Free Camber 158mm
- Eye to Center Bolt 420mm
- Install a spring rear hanger 35mm longer than the length of the spring.
- The second leaf in the Outback Spring series wraps around the eye to provide extra support during shock-loading events.
Outback Rebound leaf spring ratings per pair.
- 7 Leaf Outback Rebound Off-Road Replacement Spring – 1500kg
- 9 Leaf Outback Rebound Off-Road Replacement Spring – 2000kg
- 10 Leaf Outback Rebound Off-Road Replacement Spring – 2500kg
Spring Eye has inserted a steel bush to ensure long wearing in harsh terrains. This steel bush does require periodic greasing.
Tip: Tighten shackle bolts until hangers are tight against the spring. Then back off the nut 1/2 a turn.
Parts for the outback rebound camper spring are at these links below,
- 16mm Greaseable Shackle Bolts.
- 16mm Shackle Bolt kit.
- 60mm Outback Spring Bush
- Outback Hanger Kit (One Side)
- Replacement 60mm Brass spring bushes.
- Replacement front hanger.
- 16mm Heavy Duty ElectroGal U-Bolt Kits
- Caravan Shock Absorbers
Couplemate recommends pre-greasing shackle bolts before insertion into spring bushes.
