60mm Tandem Center Slipper Hanger
Price
$11.26 Inc.GST
Shipping

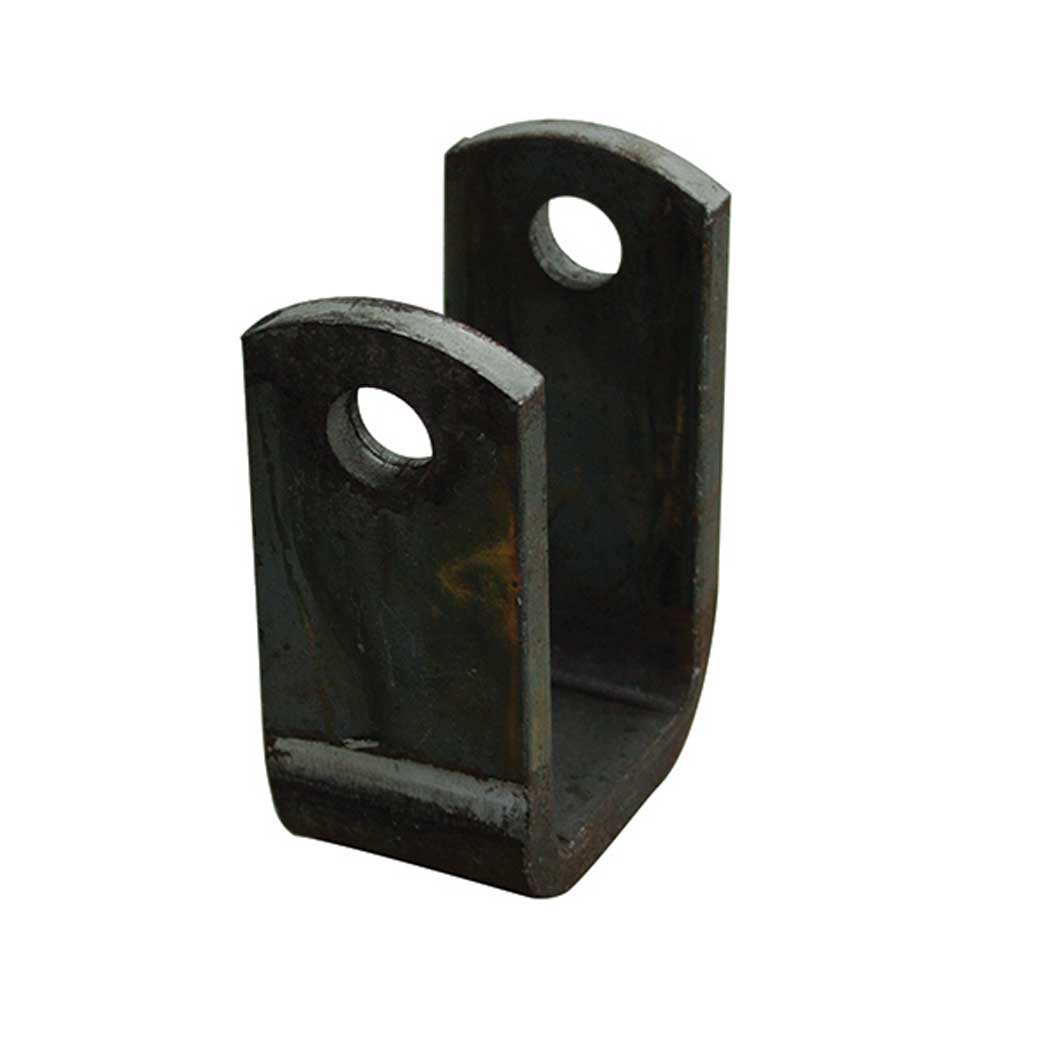

60mm Tandem Center Slipper Hanger
60mm tandem centre slipper hanger and 16mm hole to suit 16mm non-greaseable shackle bolts.
Similar 60mm Hangers Below
- Rocker Roller front spring hanger
- Rocker roller centre hanger
- Standard tandem front or rear spring hanger
- Standard tandem centre hanger
- 60mm GNS Chassis Center Spring Hanger
- Outback front spring hanger
- Outback dumbjack
- Slipper Front Hanger
- Slipper Rear Keeper
How do I correctly position the centre rocker hanger?
This rule of thumb solution is not foolproof. Boat trailers, car trailers and caravans all have different centres of weight.
The general rule is to measure the box section of our rig. Exclude the drawbar.
The 2:1 / feet: inches rule is as follows:
- Measure the box section area. (use 20 feet for an example)
- 20 feet divide by 2 = 10 feet.
- Call 10 feet, inches.
- So your hanger sits 10″ backwards from the centre.
How do I correctly position front and rear hangers?
Rocker Roller
- Install the centre hanger.
- Bolt the rocker arm onto the centre hanger.
- Bolt the front and rear hangers onto the springs.
- Stretch the rear spring as far as it will go, install a G Clamp, and then tack it.
- Repeat for the front spring.
- The springs are now correctly installed, and the welding is finished.
Outback Springs
The spring length is 841mm. Weld the eye-to-eye spring hangers @ 876mm.
Purchase associated parts here.
- Centre rocker arm
- Centre rocker arm shackle pin
- Complete rocker roller hanger kit
- Complete standard tandem hanger kit
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 8 × 4 cm |
