45mm Square Stub Axle
Price
$36.00 – $95.79 Inc.GST
Shipping

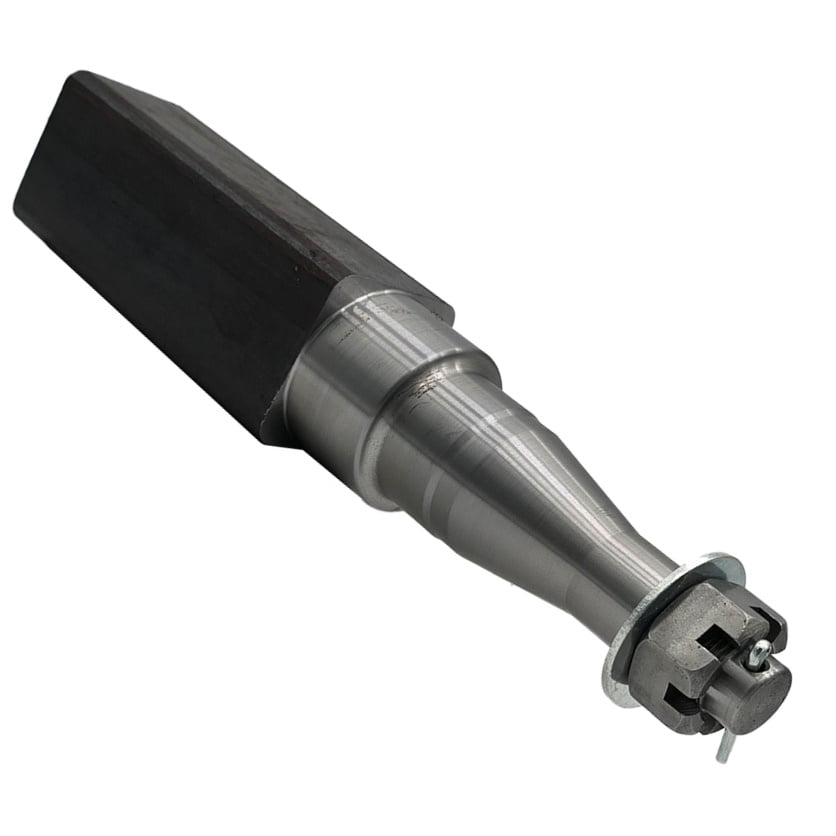

45mm Square Stub Trailer Axle – Slimline, Parallel and Dexter
45mm Square Stub Trailer Axle are used on larger boat trailers and farm trailers up to 1500kg and as a spare wheel carrier.
Couplemate makes one of the best stub axles due to super-smooth finishing tools.
Select from an electric or marine turn. Electric turn suits both electrical and hydraulic backing plates. Marine turn fits marine or unbraked axles.
Ford or SL Bearing Sizes
- Inner ID 35.00mm, OD 59.10mm (68149)
- Outer ID 22.00mm, OD 45.20mm (12749)
- Seal ID 43.9mm, OD 59.10mm (492015)
- Grease Cap 45.20mm (CM497)
Parallel Bearing Sizes
- Inner ID 35.00mm, OD 59.10mm (68149) x 2
- Seal ID 43.9mm, OD 59.10mm (492015)
- Grease Cap 63.00mm (CM497)
Dexter Bearing Sizes
- Inner ID 35.00mm, OD 59.97mm – 68149/11
- Outer ID 27.00mm, OD 50.29mm – 44649/10
- Seal ID 44mm, OD 65.22mm – GS-1719DL
- Grease Cap 1.98 inch
Stub axle 45mm Square include
- Axle Nut
- Split Pin
- Nut Washer
We recommend using only Japanese Bearings for any trailer activity. The axle rating is 725kg each or 1450kg per pair.
If you want a more substantial capacity on your 45mm stub axle, you can use an 800kg parallel profile.
Understanding Axles and various types of well-machined axles and bad axles.
The links below contain a variety of stub axles we manufacture.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
| Stub Length | 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm |
| Select Bearing Set | Dexter, Slimline, Parallel |
| Select Profile | Electric, Marine |
| Beam Size | 45mm Square |
