12V Breakaway Brake Switch
Price
$14.50 Inc.GST
Shipping

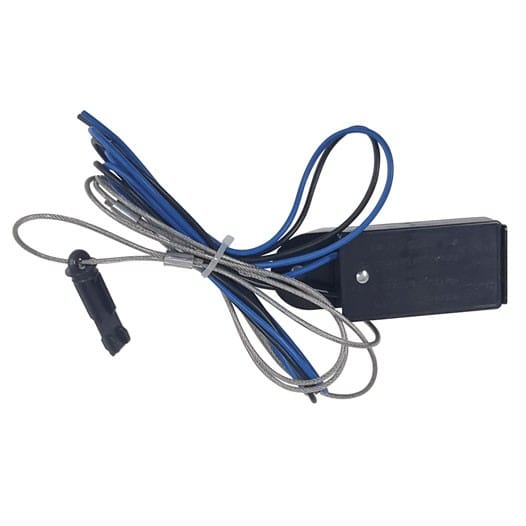

Breakaway Switch
The breakaway switch activates a breakaway kit.
Should the tow vehicle and Trailer accidentally separate, the breakaway kit engages the electric brakes at full power for at least 15 minutes.
Water Ingress
Naturally, the pin in the breakaway kit is positioned to face the vehicle. Inadvertently, water and dirt can enter the pin orifice, causing the copper terminals to short out.
When this occurs, the electric brakes will lock. If you are unaware, there is an extra load on the tow vehicle, the electric brakes will be destroyed.
The only way to release power from the breakaway is to disconnect the switch or cut a wire from the switch and isolate the cable. This action places the switch into the off position.
Drive to the nearest town and have the brakeaway switch replaced. A boot cover helps reduce water ingress into the breakaway switch housing.
Breakaway Replacement Parts
Remedy
Remove the pin and shake the switch. This may remove the problem.
Reinsert the pin and listen for the magnet to engage. If the agent does not engage the brakes with the pin inserted, you have cleared the problem and can continue your journey.
Caravan and Trailer onboard Battery Kit
It is essential to note that an independent, designated, or separate breakaway battery system is not required.
In other words, the caravan or camper’s onboard 12V battery is often used as the breakaway battery, provided it can apply 12VDC to the electric brakes.
Furthermore, the onboard caravan battery will be larger than the minimum requirement and have a capacity equal to or greater than that of the smaller unit.
The breakaway switch activates the trailer brake system for 15 minutes in cases where the Trailer was detached from the vehicle while travelling.
Warning
Disconnect the trailer plug when testing the breakaway kit. Failure to do so may severely damage the vehicle’s Electric brake controller.
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 15 × 10 × 10 cm |
