Australian Made Combination Pintle Hook Bundle

Name: Australian Made Combination Pintle Hook Bundle
Brand: Couplemate™ Australia
SKU: PINTLE-KIT-532/10
Availability: InStock

Part No: PINTLE-KIT-532/10 Category: Pintle Adaptor Kits Tags: Australian Made, Black Friday, Pintle, Pintle Bundles, Stocktake Sale, Truck Parts

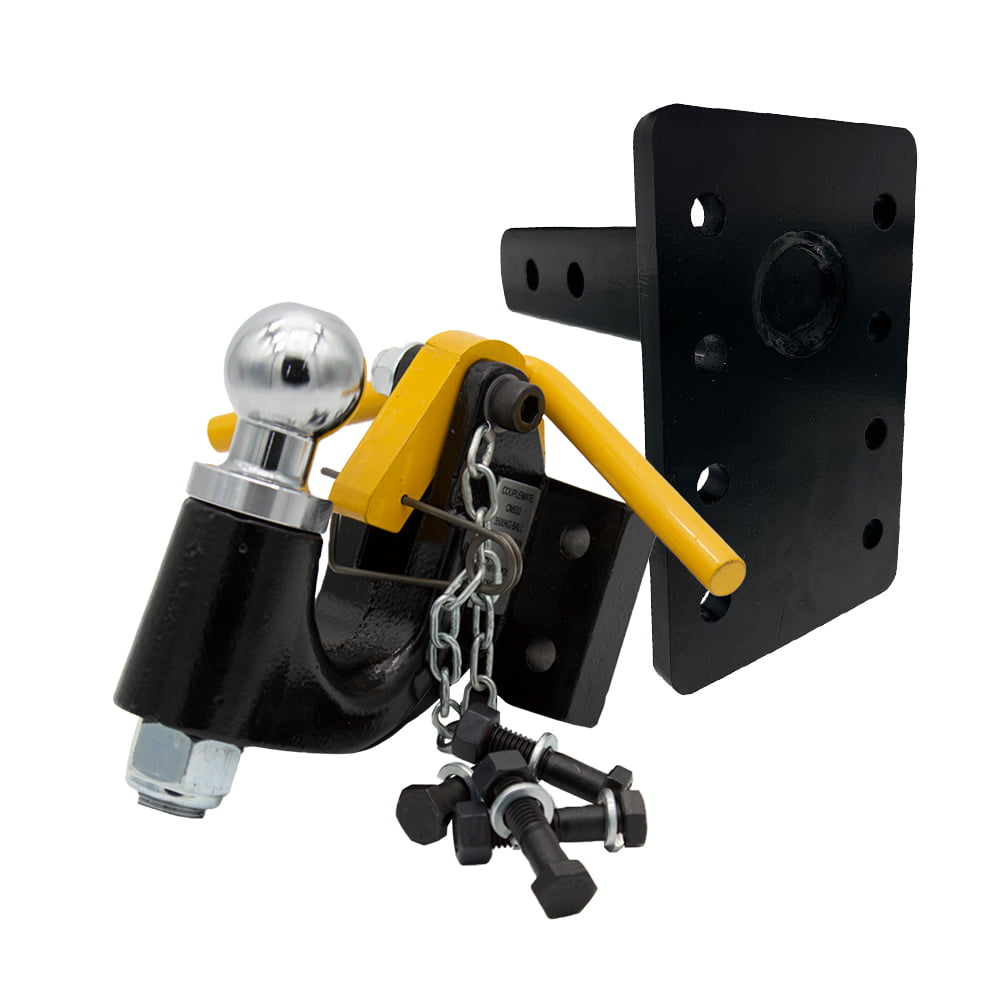

CM532 & CM510 Pintle Hook and Adapter with Bolts

Couplemate Core Range – Single Product Page

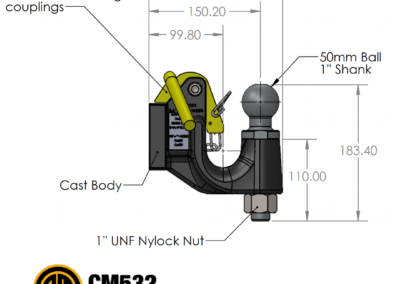

[CM532] Website Drawing Engineering Pintle Hook Combination

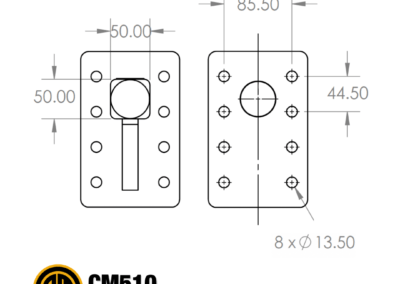

Engineering drawing of the CM510 Pintle Tow Bar Adaptor Arm (Fabricated)

Part No: PINTLE-KIT-532/10 Category: Pintle Adaptor Kits Tags: Australian Made, Black Friday, Pintle, Pintle Bundles, Stocktake Sale, Truck Parts

Price

$434.50 Inc.GST

What makes this a “Premium” Combination Pintle Hook Bundle?

✓ Solid cast body for superior strength.
✓ Australian made and designed.
✓ Designed for towing longevity and adaptability.

Shipping

Select delivery location

Australian Premium Combination Pintle Hook | Pintle Hook Adaptor

The Couplemate™ Australian Made Combination Pintle Hook bundle enhances your towing experience and eliminates undue wear. With a heavy-duty design and focus on ultimate safety, this bundle is the preferred choice of our colleagues in the Australian mining industry.

Most combination pintle hooks will use a 50mm ball when towing with a ring coupling, but the Couplemate™ Premium version means that your pintle ring will pull on a wider cast iron body. The diameter of the hitch body better matches the diameter of pintle ring couplings, which results in less movement between the two components.

This component is suitable for towing with a ring and 50mm ball coupling, providing convenience and adaptability.

Made in our Brisbane warehouse, this Australian-made product is a great and safe solution for your towing needs.

Product Specifications

CM532

Materials: Cast Iron Body, K1045 Steel Tow Ball
Hole Centres: 45mm x 85mm
Tow Ball Torque: 553Nm
D-Value: 26.7kN
V-Value: 16kN

The CM532 is suitable for towing up to:

3500kg ATM on 50mm ball couplings
6000kg ATM with 75mm ring couplings.

CM510

Materials: K14045 Steel, 250G Mild Steel
Coating: Black Powder Coated
Hole Spacings: 85mm x 45mm
Mounting Hole: 12.50mm
Bar Size: 50mm x 50mm
Towing Capacity: 6000kg ATM

This product requires a 5/8″ or 16mm hitch pin (sold separately) to secure it in place. Couplemate™ recommends using a high-tensile pin.

This product can safely be used upside down (inverted).

Product Contents

When you buy the Couplemate™ Australian Made Combination Pintle Hook Bundle, you will receive:

1 x Premium Combination Pintle Hook (CM532)
1 x Pintle Hook Adapter (CM510)
1 x Pintle Safety Chain, Clip and Pin
4 x Grade 8 1/2″ Bolts
4 x Spring Washers and Nuts

Spare parts for this product include the high tensile bolts, safety chain and clip and Pintle Hook Tow Ball.
