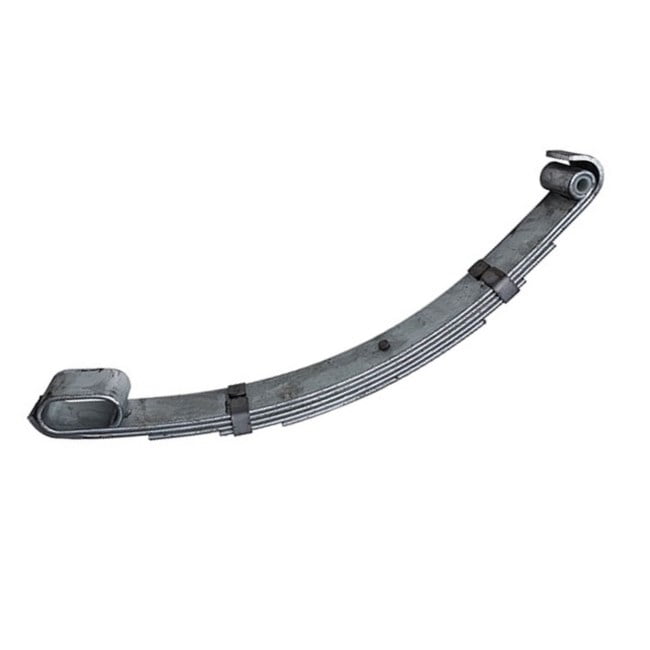

8 Leaf x 16-inch Gal Rocker Roller Replacement Spring (875kg)
$200.00
Shipping
8 Leaf x 16-inch Gal Rocker Roller Rear Replacement Spring (up to 875kg)
8 Leaf x 16-inch x 875kg Gal roller roller replacement spring to suit a spring length of 687mm from tip to tip. Please note: Individual Spring Only.
This model spring suits front and rear springs in a 15-inch and 16-inch tandem setup.
This robust spring is ideal for the long haul, including caravans or horse floats, livestock, and other trailers where the ride is more forgiving than standard suspension systems.
Below is an image of perfectly installed rocker roller springs. Notice the hangers are stretched as far as possible so the loop is on the back of the holder.
When building a new dual-axle trailer, it is advisable to allow 10% of consumables and non-consumables as Payload for your customer.
For example, if the desired payload is 3t, build the ATM to 3.3t or 3.5t.
If upgrading, check the capacity of your tow bar.
Checking your tow ball weight for better towing is a great idea. 5.5% -7% for tandem trailers.
Specifications
- 60mm
- Eye to Eye length 687mm
- Steel Roller
- Free Camber 117mm
- 5/8-inch Standard Greaseable Shackle Bolt
- Main Rocker Shackle Bolt 19mm
- Centre rocker hanger
- Front and Rear Hanger
- Rocker Arm
- Bush Dimensions 16mm x 22mm x 60mm
Spring Suspension ratings for the full range are
- 5 Leaf x 14-inch Gal Front Rocker Roller Replacement Spring (500kg)
- 5 Leaf x 14-inch Gal Rear Rocker Roller Replacement Spring (500kg)
- 6 Leaf x 14-inch Gal Front Rocker Roller Replacement Spring (650kg)
- 6 Leaf x 14-inch Galv Rear Rocker Roller Replacement Spring (650kg)
- 7 Leaf x 14-inch Gal Rear Rocker Roller Replacement Spring (750kg)
- 7 Leaf x 14-inch Front Rocker Roller Replacement Spring (750kg)
- 5 Leaf x 16-inch Gal Rocker Roller Replacement Spring (500kg)
- 6 Leaf x 16-inch Galv Rocker Roller Replacement Spring (650kg)
- 7 Leaf x 16-inch Gal Rocker Roller Replacement Spring (750kg)
- 8 Leaf x 16-inch Gal Rocker Roller Replacement Spring (875kg)
- 9 Leaf x 16-inch Gal Rocker Roller Replacement Spring (1000kg)
Tandem Trailer Rocker Roller Spring Setup
The length of rocker roller springs can vary from 1mm to 5mm. The best method to install is as follows:
- Weld the Center bracket into position, connect the centre rocker, and attach springs to the centre rocker.
- Install front and back spring hanger brackets onto the springs.
- Stretch the front spring as far as it will go and tack it onto your chassis rail.
- Stretch the back spring as far as it will go and tack it onto your chassis rail.
Discover more rocker roller parts here
- Manutect Rocker Roller Spring Kit
- 18mm Rocker Roller Centre Arm Bush
- Single Rocker Roller Spring – Galvanised
Further, Manutec rocker roller springs are available. Contact our sales team.
Finally, spring choices are important when considering new springs or upgrading old springs.
