5 Leaf x 635mm Shackle Spring – Galvanised
Price
$59.50 Inc.GST
Shipping

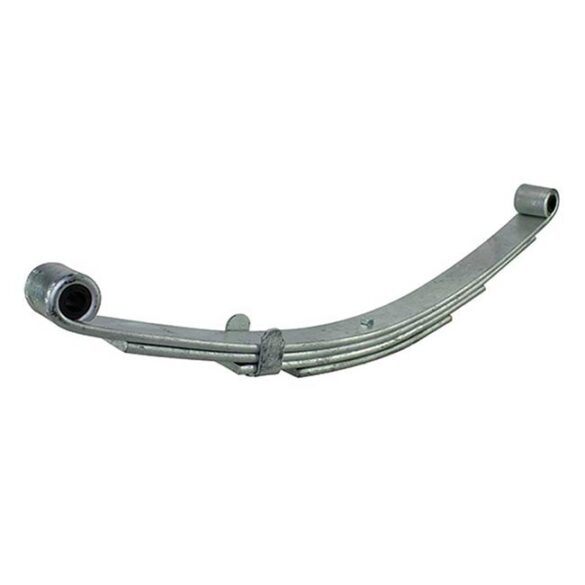

5 Leaf x 45mm x 635mm Galvanised Shackle Spring
45mm x 635mm shackle eye-to-eye spring is used on tandem trailers and are suitable for use with 13 / 14″ Wheels.
These springs are also available in either a centred or offset configuration in 4 or 5-leaf packs only. Additionally, these springs use polyurethane bushes which means they don’t need grease and are long-lasting.
Product Specifications
- Width: 45mm
- Length: 635mm
- Leaf Thickness: 8mm
- Free Camber: 100mm
- Maximum Compression: 50mm
- Spring Bolt Holes: 9/16″
- Leaf Ratings (per spring):
- 4 Leaf = 550kg
- 5 Leaf = 650kg
Review more variations of the 635mm spring below
- 4 Leaf x 635mm Shackle Leaf Spring
- 5 Leaf x 635mm Shackle Leaf Spring
- 4 Leaf x 635mm Shackle Leaf Spring – Galvanised
- 5 Leaf x 635mm Shackle Leaf Spring – Galvanised
- 4 Leaf x 635mm Shackle Leaf Spring – Galvanised – Offset
Frequently Asked Questions
How to Measure Leaf Springs
Purchase your 45mm shackle springs below:
- 45mm Shackle Spring | 710
- 45mm Shackle Galvanised Spring | 710
- Shackle Offset Spring 45mm | 710
- 45mm Shackle Offset Galvanised Spring | 710
- 45mm Al-ko Millard 7-leaf Shackle Spring 835mm
Here is an excellent article on “Why do springs break”.
Finally, if you get a chance, please review this product. Caravan Spring choices.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 93 × 15 × 10 cm |
