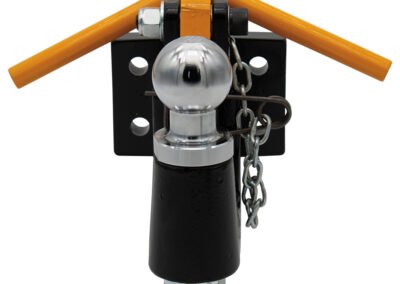

Premium Combination Pintle Hook – CM532
![[CM532] Website Drawing Bolt Pattern](https://www.couplemate.com.au/wp-content/uploads/2014/06/CM532-Website-Drawing-2.png)
![[CM532] Website Drawing Engineering Pintle Hook Combination](https://www.couplemate.com.au/wp-content/uploads/2014/06/CM532-Website-Drawing.png)
Price
$295.00 Inc.GST
What makes this a “Premium” Combination Pintle Hook?
✓ Solid cast body for superior strength.
✓ Smoother towing experience with minimal shunt.
✓ Designed for towing longevity and adaptability.
✓ Note: Buyers should be aware of fake Couplemate products for sale claiming ADR Compliance with no testing data. Ask your supplier for a CTA number or verify the product you buy is a Couplemate Genuine product and safe. These products can have a Gold Top.
Designed and manufactured by Couplemate™ Australia.
Shipping
Premium Combination Pintle Hook | Incl. High-Tensile Bolts
The Couplemate™ Premium Combination Pintle Hook is precisely engineered to enhance your towing experience and eliminate undue wear. With a heavy-duty design and focus on ultimate safety, this Combination Pintle Hook is the preferred choice of our colleagues in the Australian mining industry.
Most combination pintle hooks will use a 50mm ball when towing with a ring coupling, but the Couplemate™ Premium version means that your pintle ring will pull on a wider cast iron body. The diameter of the hitch body better matches the diameter of pintle ring couplings, which results in less movement between the two components.
This component is suitable for towing with a ring and 50mm ball coupling, providing convenience and adaptability.
Made in our Brisbane warehouse, this Australian-made product is a great and safe solution for your towing needs.
Product Specifications
Product dimensions are available in the photo gallery above. For a full-size engineering drawing, click here.
- Materials: Cast Iron Body, K1045 Steel Tow Ball
- Hole Centres: 45mm x 85mm
- Tow Ball Torque: 553Nm
- D-Value: 26.7kN
- V-Value: 16kN
The CM532 is suitable for towing up to:
- 3500kg ATM on 50mm ball couplings
- 6000kg ATM with 75mm ring couplings.
Product Contents
When you buy the Couplemate™ Premium Combination Pintle Hook, you will receive:
- 1 x Premium Combination Pintle Hook
- 1 x Pintle Safety Chain, Clip and Pin
- 4 x Grade 8 1/2″ Bolts
- 4 x Spring Washers and Nuts
Spare parts for this product include the high-tensile bolts, safety chain and clip, and Pintle Hook Tow Ball.
Important Information
D-Values for Trailer Couplings
D-Values assign ratings to tow couplings. These values represent the maximum force that can be safely exerted on the component along a prescribed axis.
For example, 50mm ball couplings have a D-value that is determined by:
- Maximum towing vehicle mass of 5000kg.
- Maximum trailer mass of 3500kg.
So, why are D-values important? When products are assigned a D-Value, it means that the developing Engineers have rigorously tested the component to ensure a safe product. You can use the configurator below to check that the Premium Combination Pintle Hook is suitable for your application.
Use the Couplemate™ D-Value sheet or the form above to ensure that the kN of this Pintle Hook correctly matches your tow vehicle and trailer.
Similar Pintle Hooks that require a D-Value
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 23 × 23 × 20 cm |
| SKU | CM532 |
| Brand | Couplemate™ Trailer Parts |
| Torque Setting | 553Nm |
| D-Value | 26.7kN |
| Materials | Cast Iron Body, K1045 Steel Tow Ball |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
