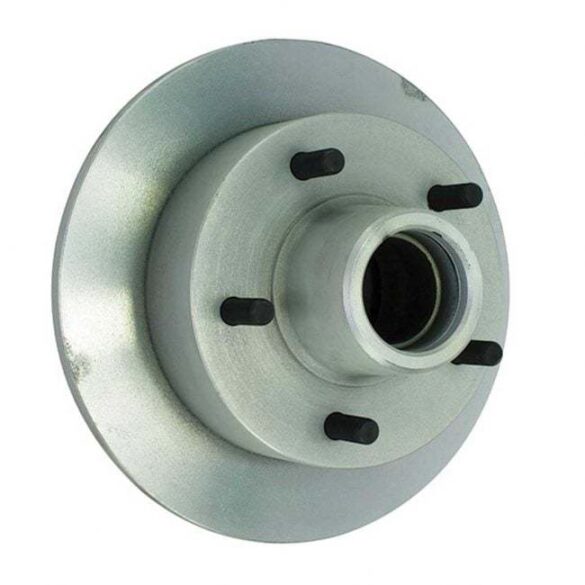

2t x 5 Stud Landcruiser Disc Rotor – AL-KO

Name: 2t x 5 Stud Landcruiser Disc Rotor - AL-KO
Brand: Couplemate™ Australia
SKU: DISC-12-2T-5s L/C-AL
Availability: InStock

Part No: DISC-12-2T-5s L/C-AL Category: Disc Hub Rotors Tag: Boat Trailer Parts

Couplemate Core Range – Single Product Page

Part No: DISC-12-2T-5s L/C-AL Category: Disc Hub Rotors Tag: Boat Trailer Parts

Price

$195.00 Inc.GST

Shipping

Select delivery location

2t x 5 Stud Landcruiser Disc Rotor up to 4.5t for Tandem Axles

5 Stud Landcruiser Disc Rotor 2t is robust and used on axles over 1600kg. The actual rating for this rotor is 2.25t.

Disc Rotor suits

5 Stud Landcruiser – 5 x 9/16-inch Studs – 2.25t – 150mm P.C.D.

Alko Disc brake rotor specifications, click here.

We recommend replacing the phenolic piston with a stainless piston for a longer piston life when using Trojan calipers. A worn or scratched phenolic piston causes swelling, which results in sticking pistons.

Bearing kit to suit 2t disc brake rotor

Inner ID 50mm, OD 89.96mm – HR30210
Outer ID 31.75mm, OD 61.95mm – 15123/15245
Seal ID 60.3mm, OD 89.96mm – 64607
Grease Cap O.D. 63mm DC2

Note 1: 2t Disc rotors do not include a bearing kit. We recommend using Japanese Bearings.

Disc hubs are cast to have the hub, which houses the wheel bearings.

Couplemate can provide disc hubs and rotors drilled to suit the majority of popular wheel drilling patterns ex-stocDepending on compatibility, we

We can also manufacture disc rotors to fit most other drilling patterns on reqlity.

Associated disc brake rotor parts

Couplemate use Landcruiser 2t Disc Rotors on the following equipment

50mm Square Hydraulic Disc Brake Axle
50mm Square Mechanical Galvanised Disc Brake

Couplemate ships via Australia Post, Startrack, Fastway and T.N.T to all parts of Australia. Delivery times may vary.

Landcruiser Disc Rotor 2t

Additional information

Weight	15 kg
Dimensions	30 × 30 × 20 cm
