39mm Round Axle & Spring U-Bolt Kits

Part No: UK39R Category: Spring U-Bolt Kits

Couplemate Core Range – Single Product Page

Couplemate round galvanised u-bolt for trailer suspension caravan spring suit axles drawbars

Part No: UK39R Category: Spring U-Bolt Kits

Price

$39.00 – $46.00 Inc.GST

Couplemate™️ 39mm Round Spring U-Bolt Kits provide a strong and secure connection for trailer, caravan, and camper leaf springs.

✓ Suits 39mm or 40mm round axles.
✓ Uses galvanised u-bolts and plates (great for boat trailers).
✓ Easily DIY spring and axle maintenance at home with this complete kit.

See technical diagram for u-bolt measurements.

Shipping

Select delivery location

39mm Round Spring U-Bolt Kits

The Couplemate™ 39mm u-bolt kit for round axles includes double dipped electrogal u-bolts, nylock nuts, and fish plates.

Spring U-Bolt Kits are designed to secure leaf springs to trailer and caravan axles safely. U-bolts link your trailer and the road; hence, it is important to use u-bolts made from high-quality materials.

Why U-bolts May be the Major Cause of Accidents. Click here

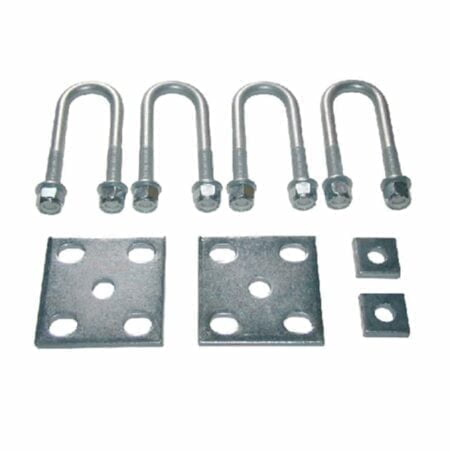

This U-Bolt Kit is supplied with:

4 x U-Bolts (choose preferred length)
8 x Washers
8 x Nyloc nuts
2 x Fish Plates
2 x Axle Pads/Spacers

39mm Round U-Bolt Specifications

U-Bolts are measured on their internal dimensions to ensure proper fit and alignment with the equipment. See our technical diagram for a visual reference.

Coating: ElectroGal galvanised
Thread: 1/2″ (12.7mm)
Internal U-Bolt Width: 39mm
Internal U-Bolt Leg Lengths:
- 100mm (4″)
- 115mm (4.5″)
- 125mm (5″)
- 140mm (5.5″)
- 150mm (6″)

Couplemate™️ supplies these 39mm round u-bolt kits for leaf spring suspension systems (usually for axles with Holden or Composite bearings). Shop replacement 39mm Round Trailer Axles.

Installation (User Guide)

Couplemate™️ 39mm U-Bolt Kits are easy for trailer spring maintenance.

Place U-shaped curve over axle beam.
Align the centre spring bolt and U-bolt legs with the fish plate holes.
Secure fish plate to leaf spring through supplied washers and nylock nuts. Tighten nuts to 60Nm with a socket.

Important: Check U-bolts and re-tighten nuts after the first trip and every 250 km thereafter.

Safety Precautions

Road safety is essential for all Australians. Please ensure to check and re-tighten after the first trip and every 250 km thereafter.

Do not re-use nyloc nuts. Nyloc nuts are often less effective after the first use. This is because the nylon material (the key component of a nyloc nut) has already once conformed to the thread profile.
Do not use a rattle gun to tighten. Rattle guns often tighten U-bolts too fast, too tight, and unevenly. This can cause the nylon to overheat and risk undue wear.
Ensure the axle has welded axle pads. If not, use the axle pads supplied with the spring U-bolt kit.

See the range of other trailers and towing safety parts.

Available U Bolt Kits

Additional information

Weight	3.9 kg
Dimensions	20 × 15 × 5 cm
Coating	Galvanised
U-Bolt Length	100mm, 115mm, 125mm, 140mm, 150mm
U-Bolt Width	39mm
Stud Thread	1/2" BSW
Bolt Diameter	12.7mm
U-Bolt Application	Spring U-Bolts
Spacer Plate Type	Spring Spacer
