Trojan RH Hydraulic Caliper Park Brake – 993434
Price
$130.00 Inc.GST
Shipping
Trojan RH Hydraulic Caliper Park Brake
Trojan RH hydraulic caliper park brake to suit 10-inch and 12-inch Trojan disc rotors.
Fittings, such as slide pins and bleed screws, are brass, while other fittings are Stainless Steel.
- 10-inch and 12-inch disc rotors
- 1500kg per axle with 225mm rotors
- 2000kg per axle with 275mm rotors
- Suitable for disc thickness from 10mm to 15mm
The latest Trojan hydraulic caliper mounts onto a threaded anchor plate.

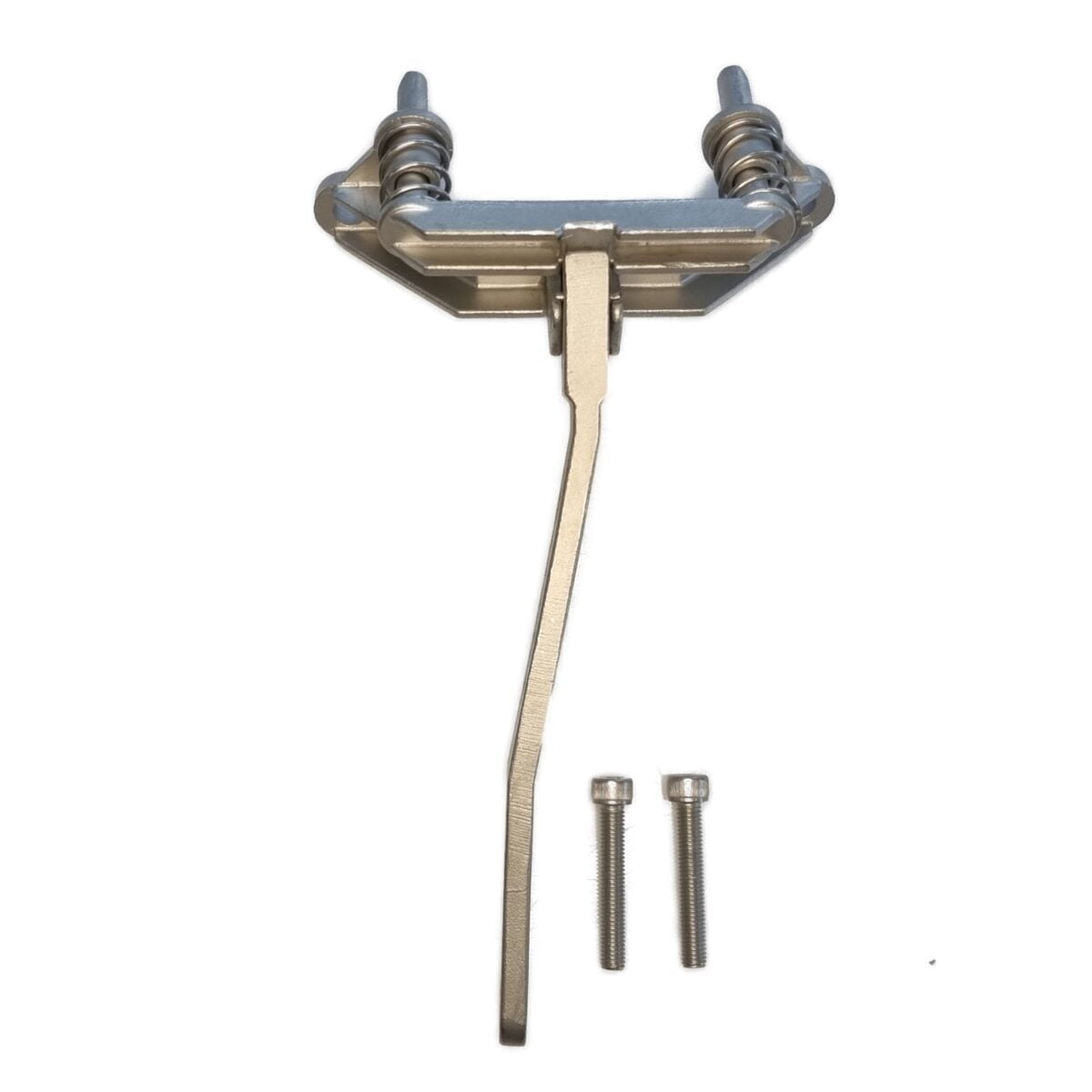

Hydraulic Park Brake Handles
Trojan park brake handles secure your boat trailer when parked. Fit all existing hydraulic Trojan calipers.
In Australia, park brake hands are not required on boat trailers. However, if you have a $100,000 boat, adding a hand brake handle makes sense to prevent the boat trailer from rolling away.
Trojan caliper slide bolts are factory-secured with locktite. We do not recommend installing park brake handles yourself. Instead, have your local trailer or boat repairer install this device for you.
Trojan recommends the two stainless screws provided with the park brake handle be locktited into position.
Note 1: It also fits Alko hydraulic calipers, provided you replace the Alko slide pins.
Note 2: Install the parking brake at the rear of the rotor.
Replacement Trojan Spare Parts
- Dacromet Caliper incl, pads to Suit Standard 15mm Disc Rotors
- Mark 5 Dacromet Caliper incl, pads to suit 11mm Disc Rotors
- Stainless Trojan Hydraulic Disc Caliper
- For standard Hydraulic Disc Pads, click here.
- Stainless Hydraulic Disc Pads
- Trojan Hydraulic Caliper Slide Kit
- Trojan Hydraulic Caliper Bleed Screws
- RH Hydraulic Caliper Park Brake
- Trojan LH Hydraulic Caliper Park Brake
Trojan Mark 5, 6 and 7 boat trailer parts are out of production.
Trailer weights exceeding 2000 kg require independent control and breakaway facility, causing the brake activation in emergencies.
Tip: When changing or checking disc pads, squeeze the piston home a little by applying a G clamp to the piston.
As a result, this procedure will give you extra room to insert the disc pads.
Further, when inserting a piston, apply a small amount of silicone lubricant to the piston. Silicone lubricant does not contaminate hydraulic brake fluid like grease.
Complete Range of Park Brakes
- 50mm Park Brake Handle for Boat Trailer – 614048
- 75mm Park Brake Handle for Boat Trailer – 614046
- 100mm Park Brake Handle for Boat Trailer – 614044
- AL-KO Override Park Low Profile Hand Brake
- Manutec Push Button Park Brake
- Hydraulic Master Cylinder Park Brake – 610949
- Trojan RH Hydraulic Caliper Park Brake – 993434
- Trojan LH Hydraulic Caliper Park Brake – 993432
- Trailer Brake Cable Kit
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 40 × 20 × 2 cm |
