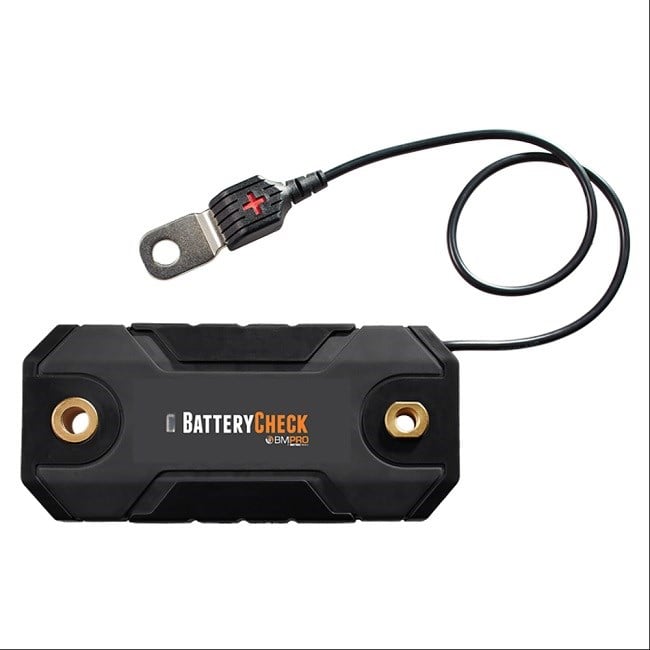

BMPRO-BCheck100
Price
Original price was: $349.00.$220.00Current price is: $220.00. Inc.GST
Shipping
KEY FEATURES
- Communicates with smartphones via Bluetooth
- Easy DIY installation – no mechanical expertise required
- Works with batteries in parallel (7Ah-800Ah battery bank)
- Internal shunt capacity – 100A peak, 80A continuous
Compatible with any deep cycle 12V lead acid, AGM and gel battery
| Specifications | |
|---|---|
Input Voltage | 8V – 16V |
Voltage Measurement Range | 8V – 16V |
Voltage Measurement Resolution | <20mV |
Current Consumption | 10mA peak |
Current Measurement Range | ± 100A |
Continuous Current Rating | ± 80A |
Current Measurement Resolution | <20mA |
Operating Temperature | -20°C to 70°C |
Temperature Measurement Range | -20°C to 70°C |
Temperature Measurement Resolution | 1°C |
Monitored Battery Capacity | 7-800Ah |
Humidity | Operating: ≤ 85% RH non-condensing Non-operating: ≤ 95% RH non-condensing |
Dimensions | 140mm x 65mm x 20mm |
Weight | Approx. 520g |
Installation | Mounted on battery |
IP Rating | IP54 |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 15 × 5 cm |
