2.25t Bearing Dolly – 15123/30210
$118.50
Brand: Couplemate
Made in Australia.
Shipping
2t Bearing Dolly to suit AL-KO hubs with 15123 and 30210 Bearings
2t bearing dolly takes the effort out of changing a new or old caravan and trailer bearings.
Before installing bearings, it is wise to check the bearing journals for signs of wear. A worn journal will cause bearing misalignment and reduce the life of the bearing.
Check for any gap between the inner race backface and the shaft shoulder.

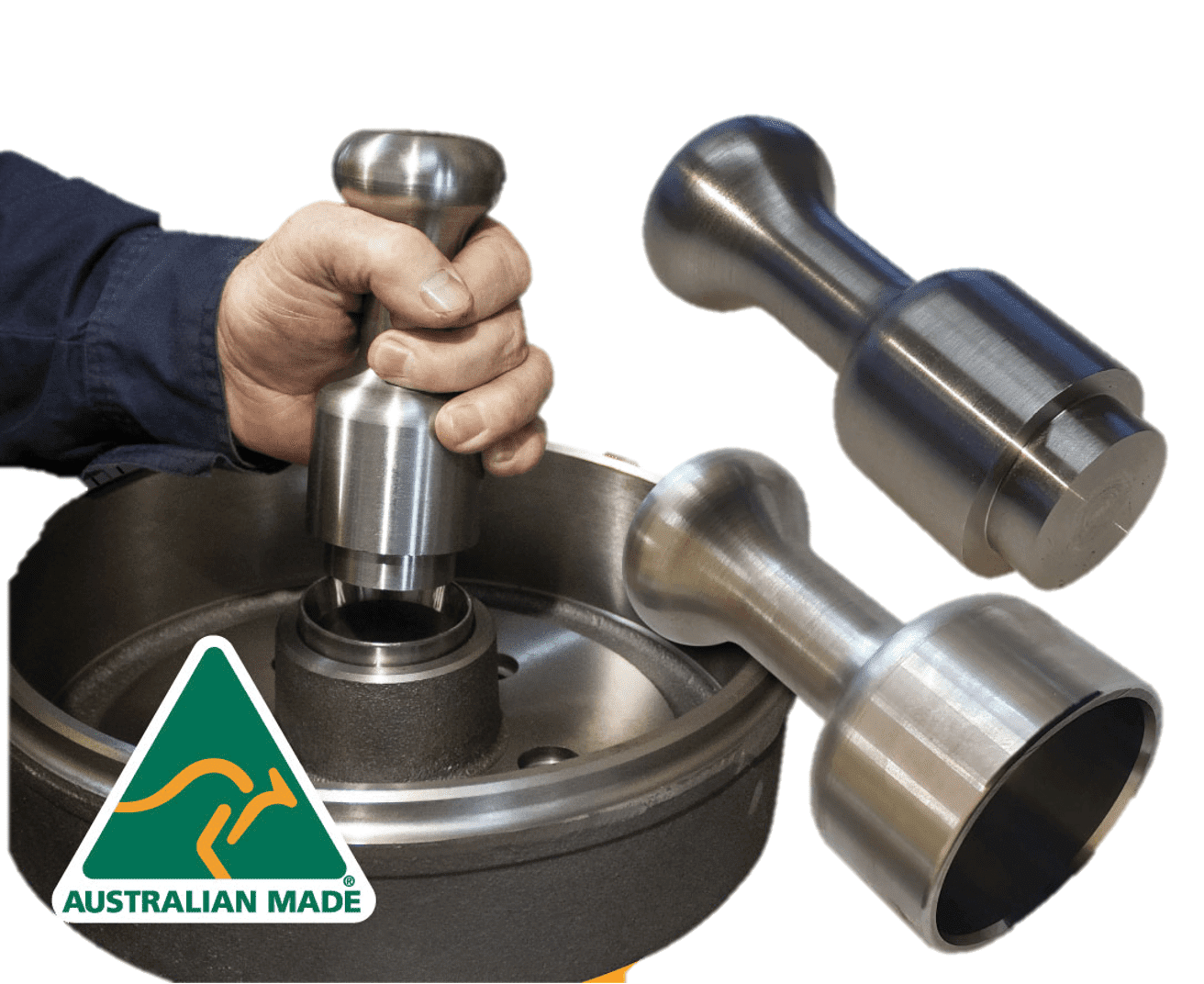

How to install bearing cups
- After the old bearings are removed, and the old grease cleaned out, knock in the outer cup until it is flush with the hub surface.
- Hold the bearing dolly vertically before giving it one smack with a lump hammer. This smack gets the cup started and before the hub journal. You should be able to feel the dolly stabilise on the outer side of the hub journals.
- Hold the dolly vertically and smack it home with the hammer. Once you hear a sound change, the cup has bedded itself on the bottom shoulder, and the job is complete.
- Turn the hub over and do the same procedure on the other side.
- Use the inner bearing dolly to tap in the seal. Gentle tap otherwise the seal will be damaged.
- Ensure the rear seal is square with the hub and apply a little grease before insertion over the axle profile.

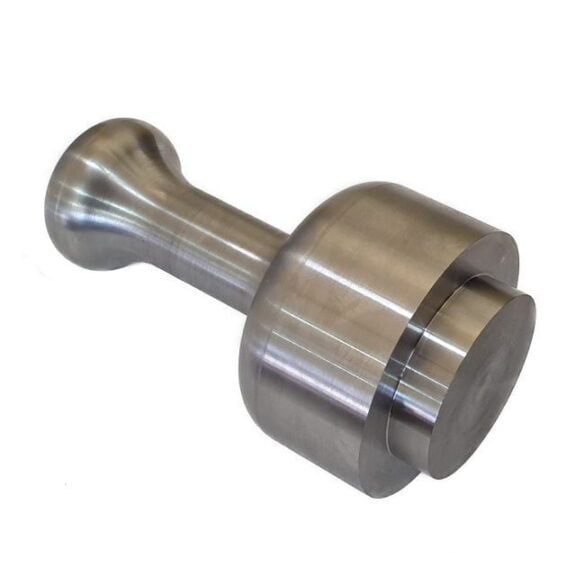

Bearing Dolly Specifications:
- Small = 61.9m OD Suit 152123 bearing outer.
- Large = 89.8mm OD Suit 30210 bearing.
Purchase Bearing Dollies here
- 45.2mm Dust Cap Dolly
- 50mm Dust Cap Dolly
- 63mm Dust Cap Dolly
- Bearing Dollys – SL and LM Bearing Cups
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 15 × 10 × 10 cm |
