80mm Square U-Bolt (120mm)
Price
$11.00 Inc.GST
Internal Width: 80mm
Internal Leg Length: 120mm
Thread Length: 50mm
Shipping

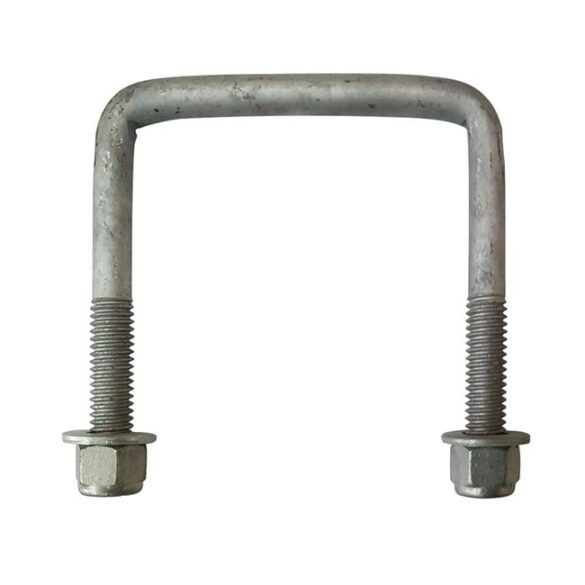

80mm Square Galvanised U Bolt – Nylocks – Washer
80mm square galvanised U-Bolt by Couplemate can be supplied bulk with nuts and washers on the threads in boxes of 50.
Rolled threads with gal flat washer + gal nylock. The thread length is 60mm.
How do I calculate the correct length, measure
- Spring width plus
- Axle Pad 8mm plus
- Axle width plus
- Nylock plus
- 5mm thread through nylock
For example, 3 leaf slipper on 39mm Round axle is
18mm Spring + 8mm Axle spacer + 39mm axle + Nylock 15mm + 5mm
Total U-bolt minimum length = 120mm
How to Measure U-bolts (example)
It is important you retighten U bolts approx 200lkms after installation due to steel’s ability to stretch a little under load.
U bolts are a major cause of caravan wheel alignment problems.
U bolts generally fail due to hydrogen embrittlement. Hydrogen embrittlement occurs during bending and galvanising. At Couplemate, we have an extra process that removes hydrogen embrittlement to produce st class u bolts.
We stress-tested these u bolts during manufacture and batch test until destruction.
Destruction loads exceed 17,000kg for 1/2 inch galvanised u bolts.
Our u bolts are derated to 375kg each or 1500kg per set of 4 or enough u bolts to suit a single axle.
The max rating of 60mm Round axles is 3000kg with u bolt rating @ 1500kg.
Galvanised U-Bolt 45mm Square Clamp Kits are listed below
- 50mm Square Galv Ubolt Clamp Kit
- 56mm Galv UBolt Clamp Kit
- 75mm Galv U bolt Clamp Kit
- 100mm Galv U bolt Clamp Kit
Bare Galvanised U-Bolts with Nylocks and Washers
- 39mm Round Galvanised U-Bolts
- 40mm Square Galvanised U-Bolt
- 45mm Round Galvanised U-Bolt
- 45mm Square Galvanised U-Bolts
- 50mm Round Galvanised U-Bolts
- 50mm Square Galvanised U-Bolts
- 56mm Square Galvanised Chassis U-Bolt
- 65mm Round Galvanised U-Bolts
- 65mm Square Galvanised U-Bolt (165mm)
- 75mm Round Galvanised U-Bolts
- 75mm Square Galvanised U-Bolts
- 80mm Square Galvansied U-Bolt (120mm)
- 100mm Square Galvanised U-Bolts
- 125mm Square Galvanised U-Bolt (100mm)
