Manutec 8-inch Extra Height Bolt On Jockey Wheel -JW4ZEHNC
$105.00
Shipping

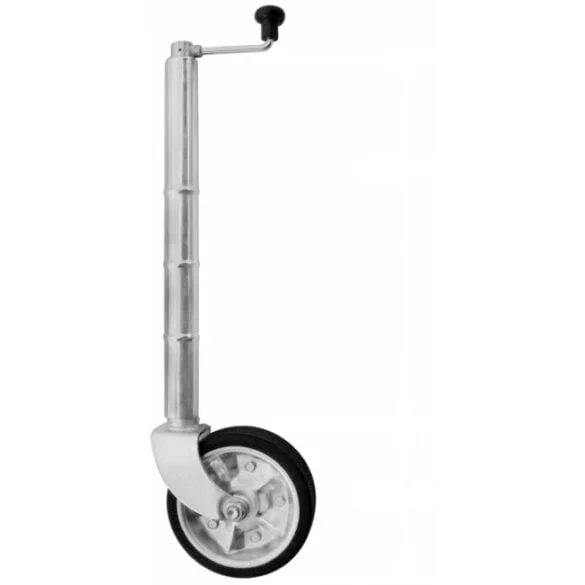

8-inch Extra Height Bolt On Jockey Wheel
The 8-inch Extra Height bolt-on jockey wheel offers your trailer the necessary support to keep it stable when not attached to the tow vehicle.
The Bolt-on jockey wheel is suitable for caravans and trailers and is available with or without a bracket.
There are four types of high-quality Jockey Wheels in the 8-inch rubber range.
- Bolt-on with a Clamp
- Bolt-on No Clamp
- Extra Height with a Clamp
- Extra Height No Clamp
- U-Bolt Swivel to suit 3-inch and 4-inch trailer chassis rails.
Choosing the right jockey wheel is critical. It helps with other tasks, such as manoeuvring the caravan and lowering and raising the A-frame drawbar bar when required.
Although most caravans come with a jockey wheel, it’s advisable to invest in a suitable replacement that better suits your weight rating.
This is a perfect choice if your caravan’s load capacity is 700 kg or below. It’s easy to use, adjust, remove, and manoeuvre. Made of solid rubber, it comes with a nylon insert and clamp bolts for secure attachment.
We recommend this product for trailers having 4-leaf spring suspensions or smaller.
Note: Wheels are rated for different loads and have two functions
- Lift the caravan off the tow ball.
- To move the caravan to its location, remember to lower the stem for maximum efficiency when moving your trailer.
Technical Specifications
- Wheel diameter – 200mm x 50mm
- Weight – 8.2 kg
- Static Load Capacity – 700kg
- Dimensions – 52 cm x 15 cm x 15 cm
- Zinc Coating
- Max Height: 720mm
- Lift 225mm
- Steel Bearings in the Wheel
- Solid tyre outer rubber Wheel
We offer various jockey wheels, each with a different load capacity.
More Jockey Wheels and Parts are available below
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 60 × 20 × 20 cm |
