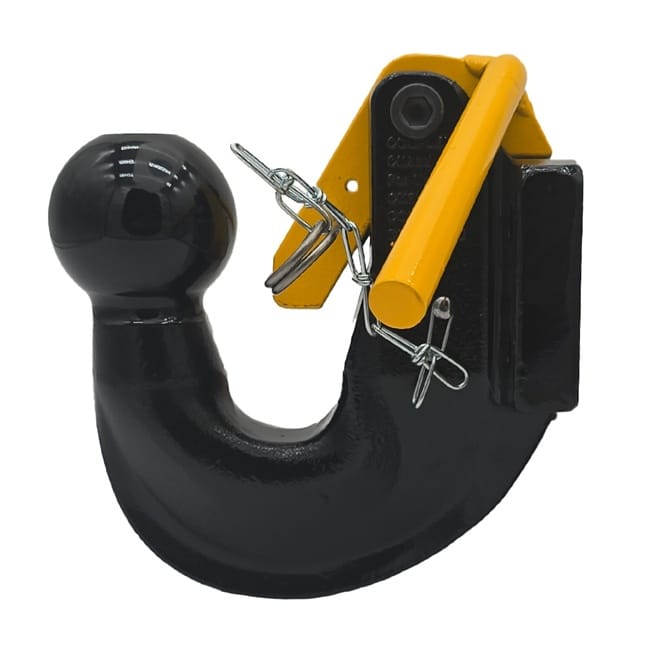

70mm Tow Ball x 10t Pintle Hook 104kN CTA-061572

Name: 70mm Tow Ball x 10t Pintle Hook 104kN CTA-061572
Brand: Couplemate
SKU: PINTLEHOOK-533
Availability: InStock

SKU: PINTLEHOOK-533 Categories: Truck Parts, Pintle Hooks Brand: Couplemate

70mm Tow Ball x 10t Pintle Hook 104kN CTA-061572

Price

$755.00 Inc.GST

Shipping

Select delivery location

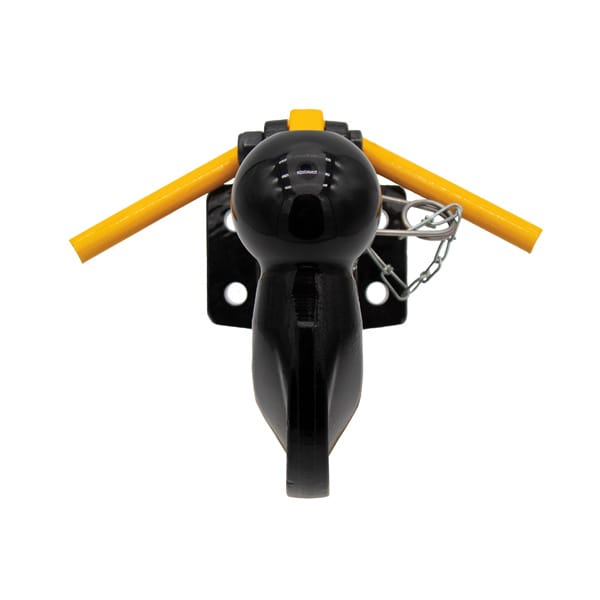

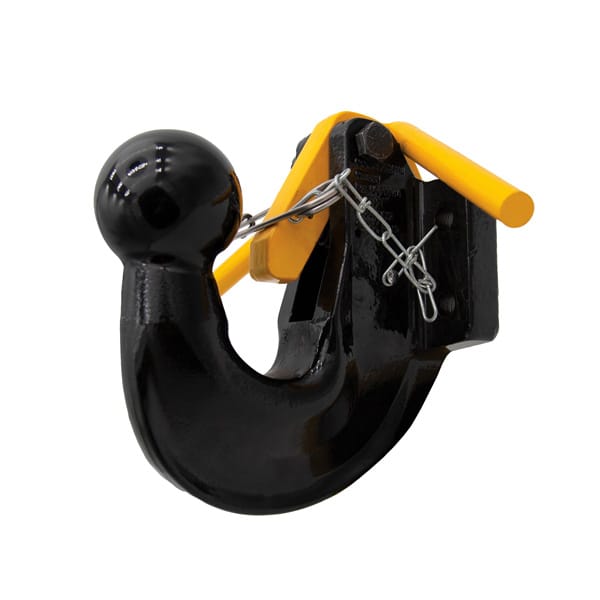

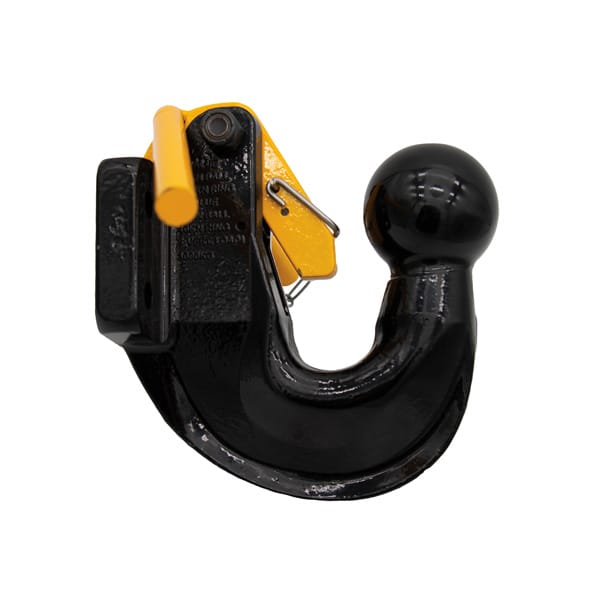

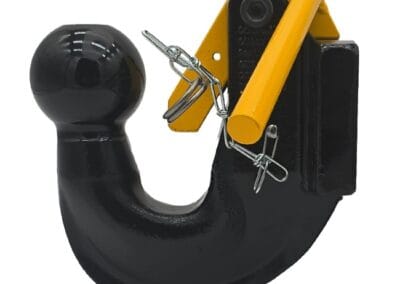

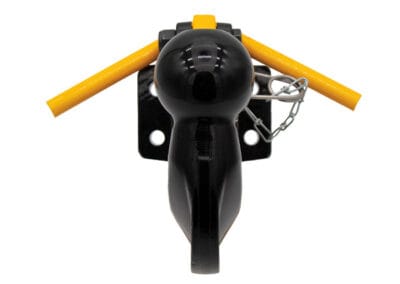

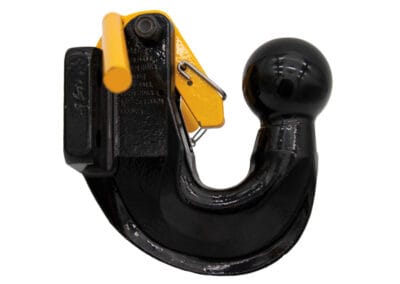

104kN Truck Pintle Hook Combination

The truck pintle hook combination is a low-wear connection between the truck and the trailer. Couplemate’s patented 70mm combination allows users to tow trailers with 4.5t balls without changing towing attachments.

Truck Pintle Hook Specifications

CTA-061572
D-Value Ring – 104kN
V-Value Ring – 40kN
D-Value Tow Ball – 56kN
V-Value Tow Ball – 30kN
70mm Tow Ball Size
Suits standard four-hole pintle hook mounts – 85mm x 45mm

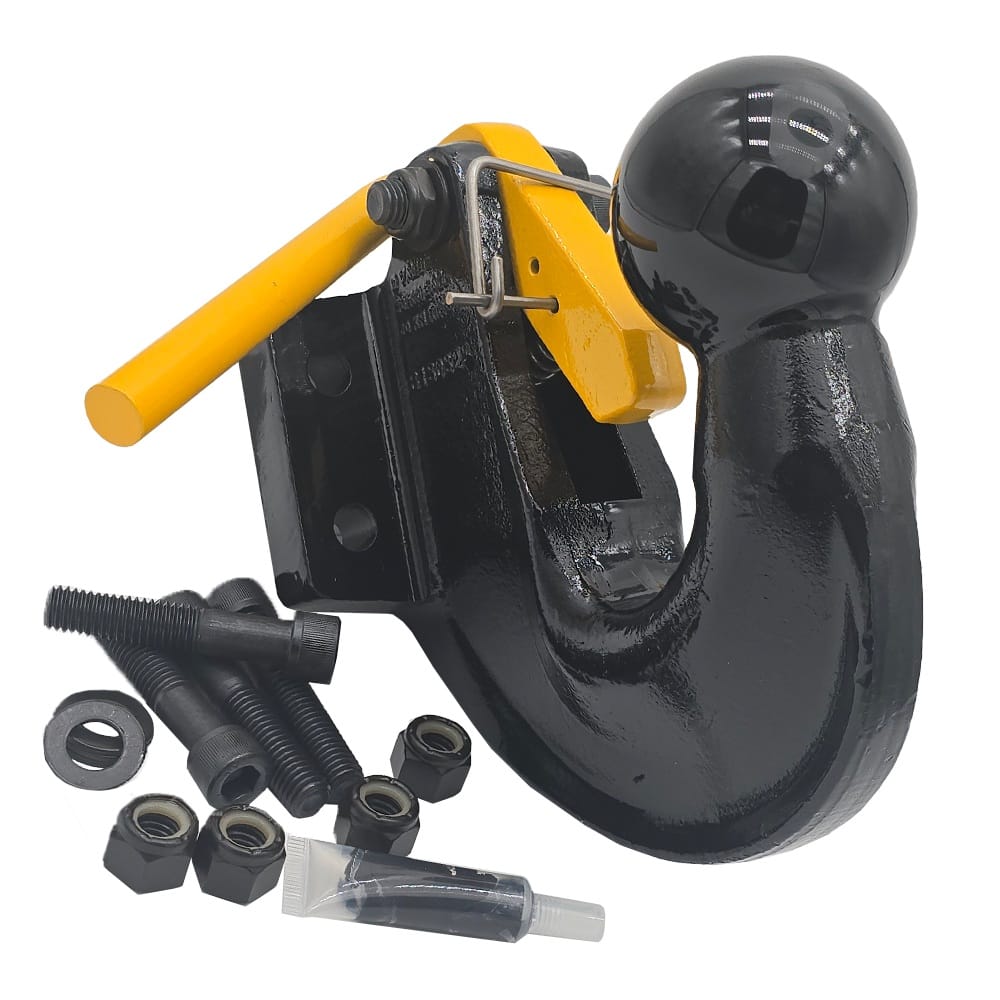

4 x high tensile bolts and nuts included
Powder-coated with pintle mounts to provide corrosion resistance
3″ Ring is the internal ID
41.5mm ring Thickness
Low-wear truck pintle

Note: 3.5t tow ball breakages are caused by backing the tow vehicle (tow bar) into the coupling. This action causes hairline fractures over a long period, eventually resulting in tow ball breakage. Tow balls tested to 8.5t without damage or deformation higher than 22mm comply with Australian Standards.

Driving habits should avoid the tow ball from hitting the coupling when reversing.

This heavy-duty, combination pintle hook prohibits damage to the tow ball when towing with a 75mm ring coupling.

Additionally, when disengaging the pintle hook, push the bar backward and slide the locking clip into the locking hole located on the pintle’s body. This will enable the bar to remain open without assistance, allowing the operator to wind the jockey wheel up independently.

Pintle hitch ratings are based on trailer and truck weights. Use the drop-down menu to find the exact D-value for your rig combination.

Purchase other trailer parts and towing equipment here

AU Pat. 2020100029 – 30 January 2020
