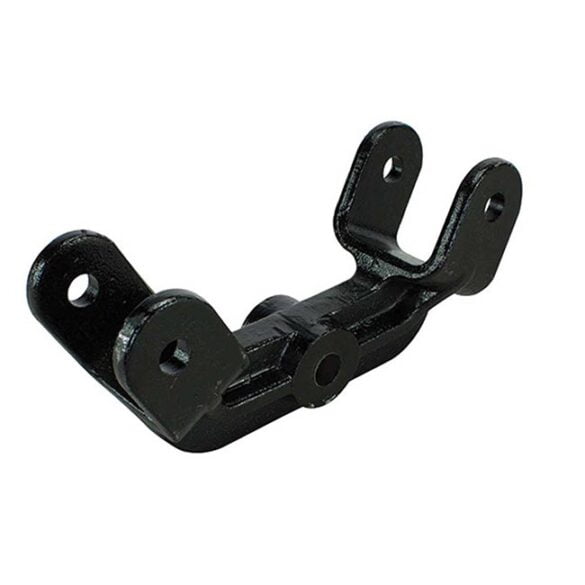

AL-KO 60mm Rocker Roller Center Pivot Arm
Price
$95.00 Inc.GST
Shipping
60mm Standard Tandem Rocker Arm
60mm rocker roller centre pivot arm AL-KO spring sets 576450 to 576880 series springs.
Question: How do I measure the correct size rocker arm?
Answer: First, measure the arm’s diameter and the centres of the two outside bolt holes.
Available Rocker Arm Centres
- 150mm – 45mm Wide Springs – (Australian Made)
- 45mm x 240mm Tandem Rocker Arm
- 200mm – 60mm Wide Springs – 18mm Pin – Standard Tandem – (Australian Made)
- 45mm x 200mm Tandem Rocker Arm
- 245mm – 45mm Wide
- 245mm – 60mm Wide – G & S Chassis incl bushes
- Rocker Roller Arm – Zinc – 19mm Pin
9/16 x 7/8 spring bushes and a 5/8 or 16mm bush for the centre pin.
Shackle plates are generally placed on the rear of each spring; however, this rocker requires shackle plates to be attached to the rear of the front spring and the rear of the back spring.
To accurately locate the front and back holders, follow these instructions.
- Locate your centre hanger.
- Measure the spring from the centre of the eye to the centre of the eye—for example, 710mm.
- Measure from the rocker’s eye and add (spring length) 710mm, then add 25mm and clamp the hanger into position.
- Repeat the process for front and rear hangers.
The loop part of the spring points towards the rear of the trailer.
The wrong hanger location causes spring and roller problems. View the video here.
Here are some associated trailer parts
- 45mm Spring Bushes
- Rocker Roller 60m Steel Bush
- Shackle Bolts and Kits – Caravan – Trailer
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 20 × 10 × 10 cm |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
