6 Leaf x 60mm Standard Tandem Springs
$396.00
Shipping
6 Leaf Standard Tandem Springs
6 Leaf Standard tandem spring replacements are among the most popular caravan spring caravan manufacturers.
Jayco and other caravan manufacturers use this type of spring. The price is for one side only, comprising two springs and a spring kit.

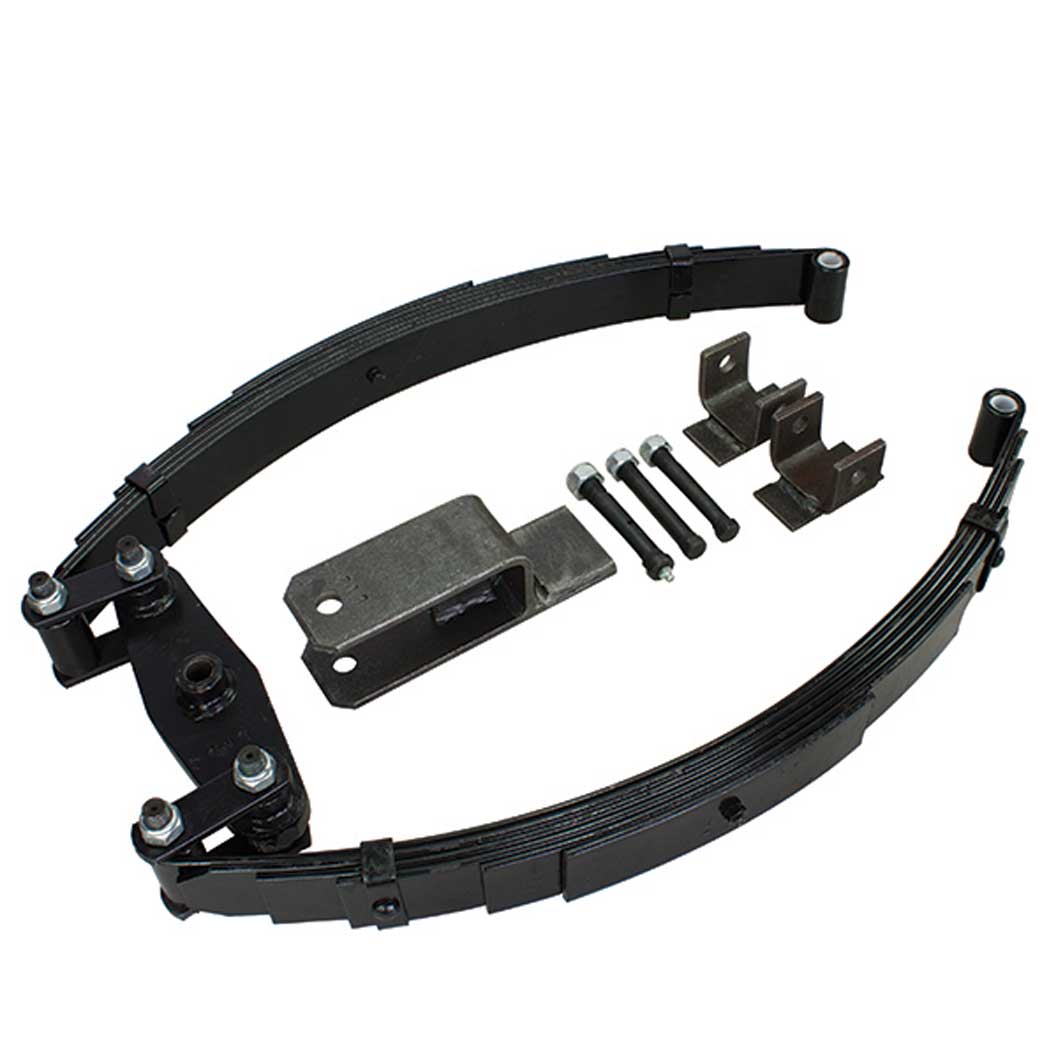

The shackle spring kit contains
- 60mm Standard Tandem Rocker Arm
- Centre hanger x 1
- Shackle plates and shackle bolts x 2
- Front and rear hangers x 2
- 18mm Center Bolt x 1
- M16 Non Greaseable Shackle Bolt x 6
Caravan tandem springs are 60mm wide and one of the best investments into your suspension system you can make.
How so? 60mm springs twist less and more robust to withstand better shock-loading events like potholes, railway lines, cattle grids, and corrugations.
If you consider 45mm wide springs and a cheaper suspension system, you must contemplate whether your trailer will be susceptible to some harsh conditions or run-around town trailers.
OK, so right now, you have a grasp on spending a few extra dollars as a better investment for your family adventures.
Purchase single replacement springs below
Replacement Spring Sizes and ratings
- 5 Leaf Single Spring – 2000kg Pair
- 6 Leaf Single Spring – 3000kg Pair
- 7 Leaf Single Spring – 3400kg Pair
- 5 Leaf x 60mm Standard Tandem Springs
- 7 Leaf x 60mm Standard Tandem Springs
Caravans use this spring for its durability at high speed. This spring can withstand twisting tension impacted during shock load events like high-speed potholes.
Specifications
- 60mm x 6mm
- 700mm eye-to-eye
- 120mm free camber
- 386mm eye-to-centre bolt
- 16mm Shackle pin diameter
- Spring bushes 16mm x 22mm x 60mm
Tack weld it to the hanger plate to prevent the shackle bolt from spinning.
Tip: Springs fit 14″ wheels. If your wheel is 15″ or 16″, then turn one spring around. These springs have a spring offset of 50mm.
Tandem springs can be challenging to fit correctly. This article may help you with your setup or adjust your existing configuration.
Standard Tandem Spring Replacement
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 100 × 40 × 20 cm |
