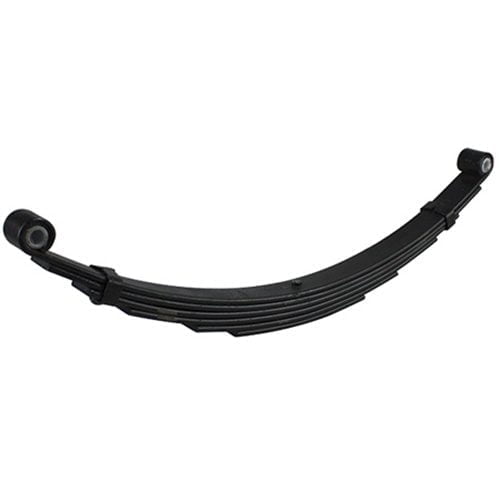

5 Leaf x 45mm Shackle Leaf Spring – 710mm
Price
$62.70 Inc.GST
Sold individually.
Shipping
5 Leaf x 45mm Shackle Leaf Spring – 710mm
5 Leaf x 45mm shackle springs are replacement leaf springs for trailers, campers, and caravans.
This spring is centred with the locator pin is in the middle of the spring. This can be checked by measuring from front eye to locator pin and from locator pin to rear eye. For this spring, both measurements should be 355mm. If they are different, you likely require offset springs.
These springs are supplied painted, but you can find a Galvanised version here.
Product Specifications
- Width: 45mm
- Length: 710mm
- Leaf Thickness: 8mm
- Free Camber: 120mm
- Spring Bolt Holes: 9/16″
- Leaf Ratings (per spring):
- 3 Leaf = 425kg
- 4 Leaf = 550kg
- 5 Leaf = 650kg
- 6 Leaf = 750kg
- 8 Leaf = 950kg
Frequently Asked Questions
Should I measure my trailer spring following the curve (camber)? The best way to find a replacement spring is by measuring straight across from front eye to rear eye, starting and ending in the eye centre.
Can I use this spring on a dual axle trailer/caravan? Yes! These springs are ideal for tandem axles.
Additional information
| Weight | 7.5 kg |
|---|---|
| Dimensions | 93 × 15 × 10 cm |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
