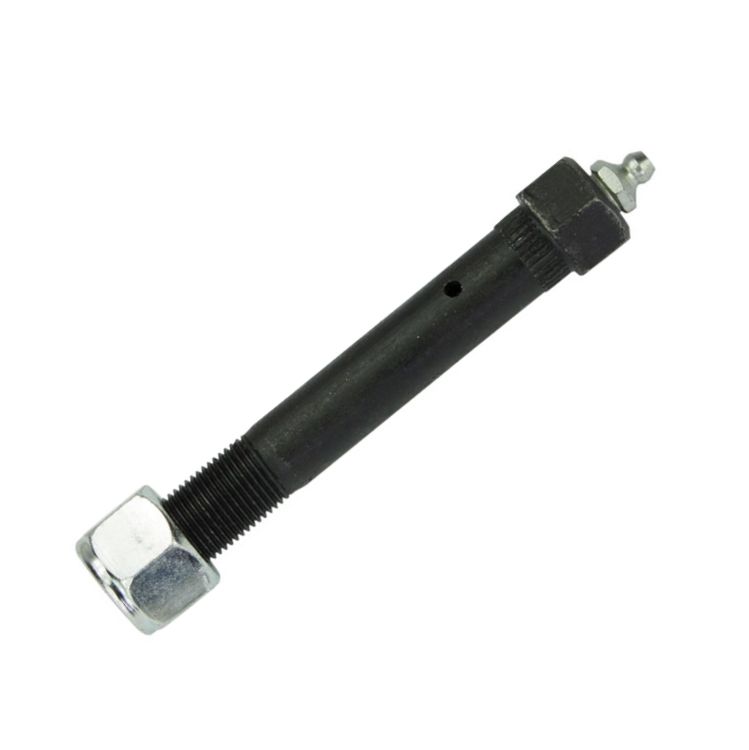

5/8-inch x 4.25-inch Greaseable Shackle Bolt
Price
$7.50 Inc.GST
Shipping
5/8-inch x 4.25-inch UNF Greaseable Shackle Bolt
Shackle bolts for caravans and trailers sold by Couplemate are high tensile 9/16 inch, 5/8 inch, M16, M18 or M20.
Suits 45mm or 60mm eye to eye with nylon bushes or shackle springs with steel bushes (Al-ko Outback rebound Series.)
How do I measure my shackle bolt?
Measure from the tip of the thread to the underside of the hex head.
Worn Hangers (5/8 inch or 16mm)
Yes, there is a fix for this problem.
- Standard hangers use a 4-inch shackle bolt, measured from under the head to the thread’s top.
- Cut the head off a centre hanger leaving 2 x halves left.
- Use a 4.5 inch shackle bolt (701062) and bolt the two halves over the existing hanger.
- Weld the two 1/2 inch plates over the old worn hangers.
- The problem is now fixed.
Sizes on offer
- 1/2-inch x 3.5-inch Shackle Bolt
- 9/16 inch Non-Greasable – 3.5 inch – Grade 8 High Tensile
- 9/16 inch Greasable – 3.5 inch – Grade 8 High Tensile
- 5/8 inch Greasable Short – 3.5 inch to suit 45mm tandem rocker centre bolt – Grade 8 High Tensile
- 5/8 inch Greasable – 4.25 inch to suit Manutec Rocker Roller Springs – Grade 8 High Tensile
- 5/8 inch Greasable Long – 4.5 inch – Grade 8 High Tensile
- 3/4 inch Greaseable – 3.5 inch – Grade 8 High Tensile
Non-greaseable bolts fit inside a self-lubricating nylon bush and do not need grease. If your springs have nylon bushes, it is not advisable to change your pin to greaseable.
The knurl under the head has a particular purpose. The knurl locks into the shackle plate to help prevent the bolt from spinning during spring compressions. Broken welds are a good sign the bolts need replacement.
The knurl is welded onto the shackle plate on standard tandem and outback trailer springs to stop the bolt from turning. With a rotating bolt in the shackle plate, wear significantly increases.
News: How to fix Dangerous Caravan Vibration Fatigue
How to tighten suspension bolts.
- Tighten 16mm x 100mm greaseable bolt until home.
- Back off 1/4 turn.
- You need a small space between your shackle plates and spring; otherwise, you will develop an annoying squeak.
- This squeak is due to no tolerance between shackle plates and spring.
Associated Shackle Bolt Parts
- Shackle Plates – Caravan – Trailer
- 45mm Shackle Hanger Kit
- 45mm Tandem Shackle Hanger Kit
- 60mm Standard Tandem Hanger Kit
Purchase Electrogal 4-inch shackle bolt kits from our trailer parts range here.
Note: The above shackle plate kits are laser cut, welded then plated by Couplemate.
Replacement Shackle Bolts, Caravan Trailer Kits
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 10 × 2 × 2 cm |
