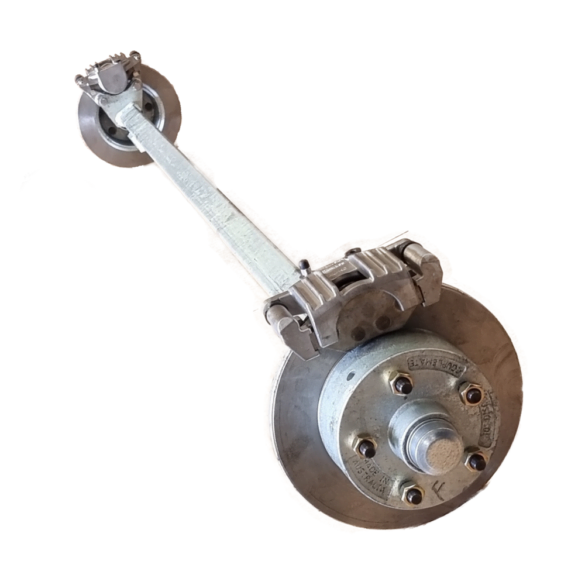

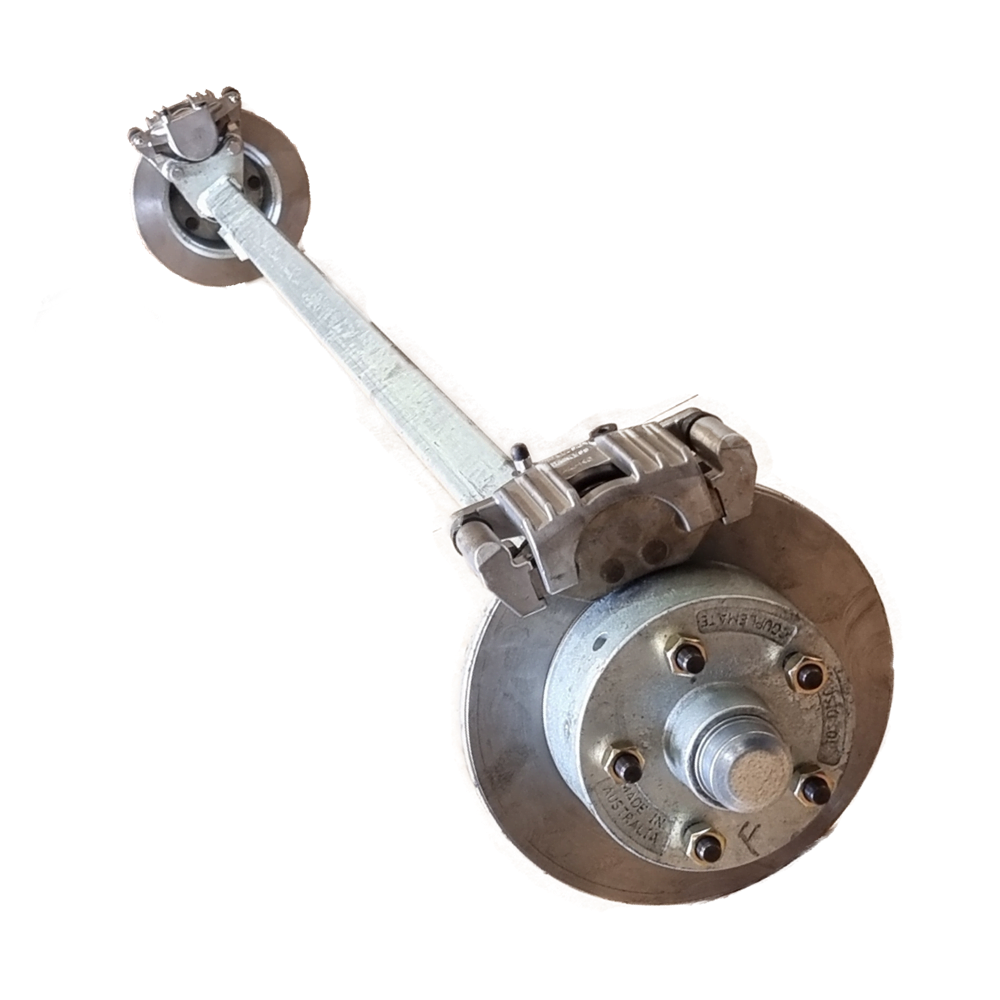

45mm Square Ford Hydraulic Disc Brake Axle
Price
Original price was: $994.00.$800.00Current price is: $800.00. Inc.GST
Shipping
45mm Square Ford Hydraulic Disc Brake Axle used on Tandem Suspension
45mm square Ford hydraulic disc bake axle kits are used on tandem boat trailers due to their anti-corrosive characteristics. The 45mm square hydraulic axle assembly is our most popular seller.
This axle group is rated
- 1450kg for Slimline Bearings
- 1600kg for parallel bearings
Boat trailers use hydraulic disc brakes due to the anti-corrosive characteristics of galvanised disc braking system.
- All Couplemate marine disc braked axles are Australian made and galvanised.
- Did you know Couplemate Trailer Parts have a lifetime warranty against faulty craftsmanship?
- Yes, it is true, however, this warranty does not cover consumables such as bearings and disc pads.
This Hydraulic Disc Brake Axle Kit includes:
- 45mm Square Axle rated @ 1450kg – 1600kg
- 1 x Pair Hydraulic Brake Calipers
- 1 x Pair of Anchor Plates welded to the axle
- 2 x 7/16″ Caliper Bolts + Washer
- Pair of Galvanised Disc Rotors
- 2 x Japanese Slimline Bearings Sets
- Galvanised axle is an optional extra and available upon request
Couplemate has disc braked axles to suit the following wheel stud patterns
- Ford SL
- HT Holden SL
- HQ Holden SL
- Commodore SL
- 5 Stud Landcruiser SL
- 6 Stud Landcruiser SL
- 5 Stud Landcruiser Parallel
- 6 Stud Landcruiser Parallel
Purchase 2t American Stainless Rotor and Caliper setups here.
Calculating The Correct Axle Measurements
- Measure the offset wheel. The wheel offset is the distance between the inside of the hub and the outside of the rubber.
- Add 50 mm to the offset. Alternatively, choose your own distance between the rubber and the chassis.
- Multiply by 2 for both sides. Add your chassis width to the above number.
Still unsure of what measurements to take? Check out this handy guide below:
[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres
Identifying Bearing Combinations
You will also need to identify your bearing combination which can be done by pulling off a hub and bearings, and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing number.
Review axle kit with various braking systems here
- 40mm Square Hydraulic Drum Brake Kit – 1000kg
- 40mm Square Mechanical Drum Brake Kit – 1000kg
- Round Mechanical Disc Braked 45mm Axle
- 45mm Round Hydraulic Drum Brake Kit – 1450kg
- 45mm Square 6 Stud Landcruiser Hydraulic Disc Brake Axle
- Round Mechanical Drum Brake Kit – 1450kg
- 45mm Square Ford Hydraulic Disc Brake Axle
- 45mm Square 5 Stud Landcruiser Hydraulic Disc Brake Axle
Additional information
| Weight | 60 kg |
|---|---|
| Dimensions | 240 × 50 × 50 cm |
