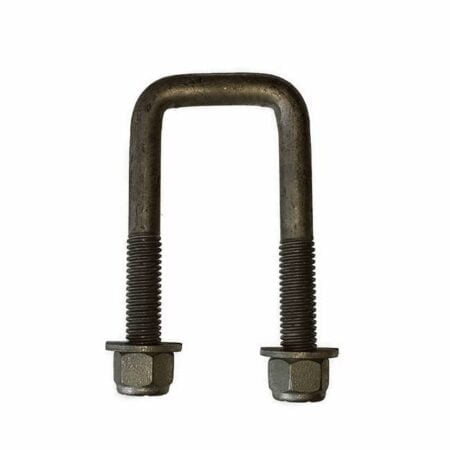

40mm Square Galvanised U-Bolt
$8.00 – $12.00
U-bolt available from 100mm to 150mm lengths.
✓ Galvanised U-bracket with 60mm thread length.
✓ Includes 2 x Galvanised Nyloc nuts (1/2″ BSW).
✓ Dimensions are the internal measurements.
Shipping
40mm Square Galvanised U-Bolt incl, Gal Nylock, and Gal Washers
40mm Square Galvanised u-bolt by Couplemate are supplied bulk with nuts and washers on the threads in boxes of 50.
Rolled threads with gal flat washer and gal nylock. The thread length is 60mm.
How do I calculate the correct length, measure
- Spring width plus
- Axle Pad 8mm plus
- Axle width plus
- Nyloc plus
How to Measure U-bolts (example)
It would be best to retighten u-bolts approximately 200 km after installation due to the steel’s ability to stretch a little under load.
We stress-tested these u-bolts during manufacture and batch test until destruction.
Destruction loads exceed 17,000kg for 1/2-inch galvanised U-bolts.
The max rating of 60mm Round axles is 3000kg with a u-bolt rating of 1500kg.
Vibration fatigue affects trailer U-bolts. Retightening is essential.
Bare Galvanised U-Bolts with Nylocks and Washers
- 39mm Round Galvanised U-Bolts
- 40mm Square Galvanised U-Bolt
- 45mm Round Galvanised U-Bolt
- 45mm Square Galvanised U-Bolts
- 50mm Round Galvanised U-Bolts
- 50mm Square Galvanised U-Bolts
- 56mm Square Galvanised Chassis U-Bolt
- 65mm Round Galvanised U-Bolts
- 65mm Square Galvanised U-Bolt (165mm)
- 75mm Round Galvanised U-Bolts
- 75mm Square Galvanised U-Bolts
- 80mm Square Galvansied U-Bolt (120mm)
- 100mm Square Galvanised U-Bolts
- 125mm Square Galvanised U-Bolt (100mm)
U-bolt clamp kits are listed below
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10 × 6 × 2 cm |
| U-Bolt Length | 100mm, 115mm, 125mm, 140mm, 150mm |
| U-Bolt Width | 40mm |
| Bolt Diameter | 12.7mm |
| Coating | Galvanised |
| Fastener Type | U-Bolt |
| Stud Thread | 1/2" BSW |
