3t x 65mm Round 5 Stud Landcruiser Lazy Axle Kit
Price
$750.00 Inc.GST
Shipping

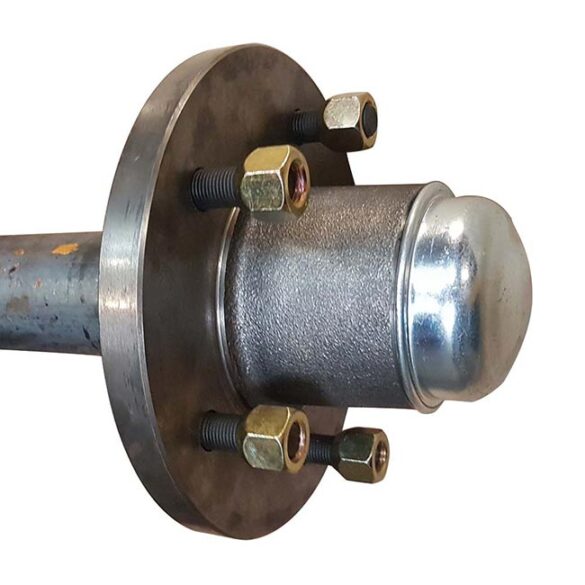

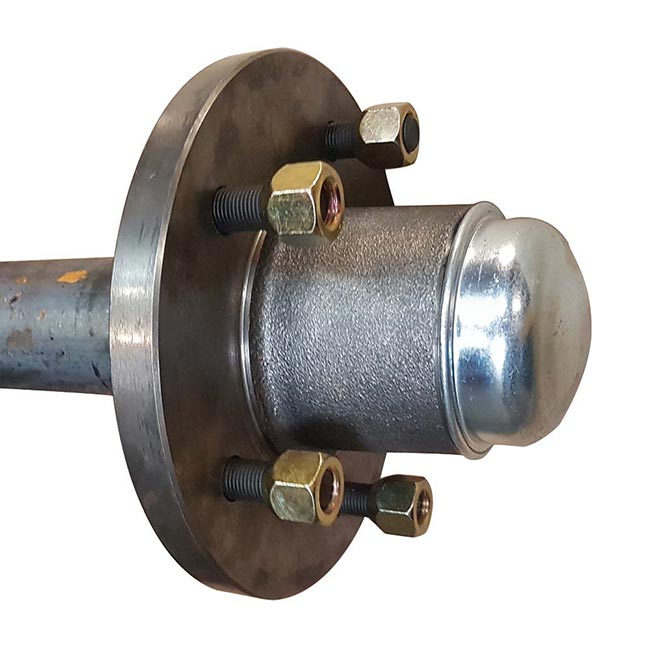

3t x 65mm Round 5 Stud Landcruiser Unbraked Lazy Axle Kit
3t x 65mm round 5 stud Landcruiser unbraked lazy axle kit with hubs and Japanese bearings.
Here is why Couplemate make one of the best-unbraked axles: why?
- BlueScope Steel
- Quality Hubs
- Japanese Bearings
- Pre-assembled to factory specifications.
- Couplemate’s lifetime warranty against faulty craftsmanship is our guarantee.
Axles are factory-assembled to certify that bearings and clearances are perfect before dispatch.
- 1 x 65mm Round Australian-made Axle.
- 2 x Lazy Hubs with Japanese Bearings
- Japanese bearings rated from 1450kg up to 3t
- We greased it with high-temperature, high-performance grease and assembled it in our workshops.
3t x 65mm round lazy axle kit is ideal for all trailers up to 3000kg or tandem trailers up to 6t.
Note 1: farm or for agricultural purposes only. Note 2: Recommended for heavier loads on farm trailers.
65mm round unbraked axle assembly is your solution to axle flex from smaller axles.
Axle Flex will rapidly wear your springs due to the vibration reverberating from the centre of the axle back to the spring.
Effectively, your spring is working twice as hard as it should. Please read our article about vibration fatigue.
Available Lazy Axles and Ratings
- 39mm Round Axle Kit | Unbraked Lazy Kit – 750kg
- 45mm Round Unbraked Lazy Axle Kit – 1450kg
- 45mm Square Unbraked Lazy Axle Kit | 1450kg – 1600kg
- 50mm Square Unbraked Lazy Axle Kit
- 60mm Round Axle 3t Unbraked Axle
Calculating The Correct Axle Measurements
- Measure the offset wheel. The wheel offset is the distance between the hub’s inside and the rubber’s outside.
- Add 50 mm to the offset. Alternatively, choose the distance between the rubber and the chassis.
- Multiply by 2 for both sides. Add your chassis width to the above number.
- If in doubt, view the video at the bottom of this page.
Still unsure of what measurements to take? Check out this handy guide below:
[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres
Identifying Bearing Combinations
You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing numbers.
Additional information
| Weight | 70 kg |
|---|---|
| Dimensions | 240 × 60 × 60 cm |
| Beam Size | 65mm Round |
