Manutec 10-inch U-bolt Swing Up Jockey Wheel – JW11UBS
$159.00
✓ Stores the Wheel above the Chassis Rail (angled yoke)
✓ 370mm from the Centre of the Chassis Rail to the Ground.
✓ Solid Rubber Rounded Tyre
Shipping

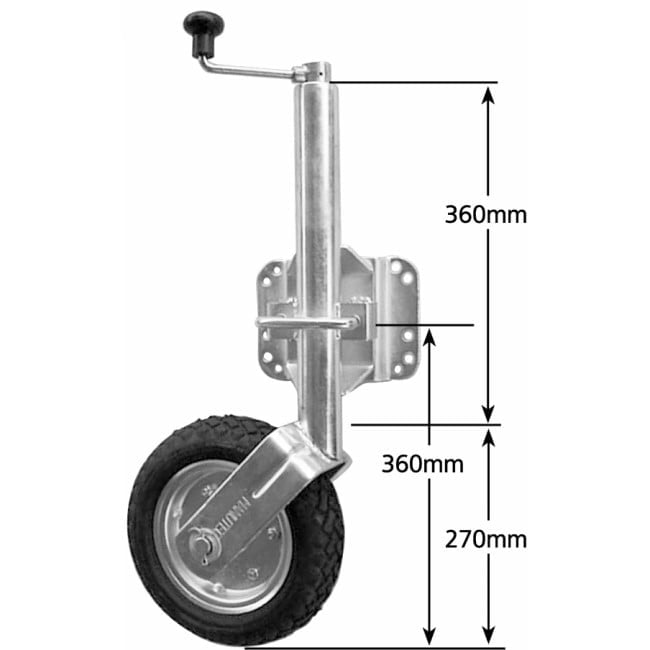

10-inch U-bolt Swing Up Jockey Wheel
The 10-inch U-bolt swing-up jockey wheel with a zinc steel rim and solid rubber tyre. It has a maximum static load capacity of 1000kg.
It features a swing-away bracket for convenient stowage when not in use.
When choosing an 8-inch swing-up jockey wheel, it is important to consider the weight of your trailer, the maximum load capacity of the wheel, and the material of the wheel. You should also make sure that the wheel is compatible with your trailer’s drawbar.
There are three types of high-quality Jockey Wheels in the 10-inch rubber range
- Bolt-on with a Clamp
- Bolt-on No Clamp
- U-Bolt Swivel to suit 3-inch and 4-inch trailer chassis rails.
Choosing the right jockey wheel is critical. It helps in more ways; it helps manoeuvre the caravan, and lower and raise the A-frame drawbar bar when required.
Although most caravans come with a jockey wheel, it’s advisable to invest in a good replacement that suits your weight rating better.
If your caravan has a load capacity of 1000 kg or below, this is a perfect choice for you. It’s easy to use, adjust, remove, and manoeuvre. Made of a zinc steel rim with a solid rubber tyre, it comes with a brass sleeve as the main bearing.
We recommend this product for trailers having 4-leaf spring suspensions or smaller.
Note: Wheels are rated for different loads and have two functions
- Lift the caravan off the tow ball.
- To move the caravan to its location. When moving your trailer, do not forget to lower the stem for maximum efficiency.
Technical Specifications
- Wheel diameter – 250mm x 50mm
- Weight – 12 kg
- Static Load Capacity – 1000kg
- Dimensions – 63 cm x 25 cm x 25 cm
- Zinc Coating
- Max Height: 630mm – 855mm
- Lift 225mm
- Brass Bush in the Wheel
- Solid tyre outer rubber Wheel
We offer a wide range of jockey wheels, each with a different load capacity.
More Jockey Wheels and Parts are available below
Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 80 × 20 × 20 cm |
