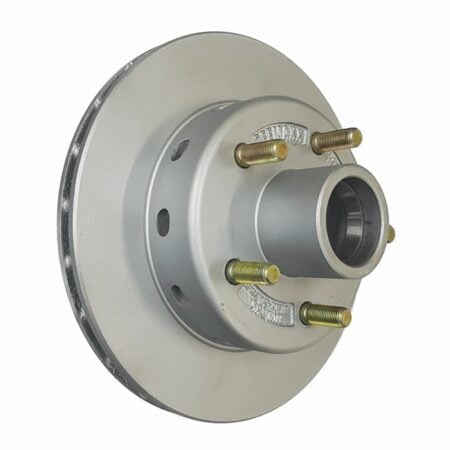

DeeMaxx 10-inch Ventilated Disc Rotor
Price
$150.00 Inc.GST
10″ Ventilated Disc Rotor for 5S Ford Rims
✓ Advanced heat dissipation via ventilation.
✓ Dacromet-coated for superior corrosion resistance.
✓ Suits American-style boat trailer brakes (DeeMaxx and Kodiak).
Designed and manufactured by DeeMaxx.
Shipping
10-inch DeeMaxx Disc Rotor | Ventilated Ford Rotor
10-inch DeeMaxx Disc Rotors are known for providing superior heat dissipation. By having ventilation gaps, air can better circulate in your discs, which helps keep caliper brakes cooler.
With a rotor thickness of 22mm, these brake hubs will suit both Kodiak and DeeMaxx hydraulic caliper brakes.
Each disc is supplied with a dacromet-coated coating, as it provides great rust resistance, which is especially important for boat trailers exposed to salt water.
You can see our full range of American Boat Trailer Parts here.
Product Specifications
- Stud Pattern: Ford (5 x 114.30mm)
- Stud Type: 1/2″ UNF
- Coating: Dacromet
- Rotor Thickness: 22mm
- Bearings: Dexter 2.0t Marine
Suits 3500lbs American Dexter Bearings
- Inner Bearing: LM68149/11 (ID 35mm) (OD 59mm)
- Outer Bearing: LM44649/11/245 (ID 27mm) (OD 50mm)
- Grease Seal: GS-1719DL (ID 50.00mm) (OD 85.00mm)
- Dust Cap: DC200L
Spare-bearing kits can be purchased separately here.
Installation Overview
- Fit the bearings into the disc rotor without grease (initially).
- Fit the rotor onto the axle. Lock the axle nut.
- Bolt the mounting plate onto the disc caliper
- Place a cable tie around the rotor.
- Install the caliper and mount it over the disc rotor.
- Install an airline into the hydraulic thread to blow out the piston onto the disc pad, locking the disc pad into position.
- Tack weld the mounting plate into position.
- If you are happy with the location of the mount, remove the caliper and rotor to finish welding.
- Grease the bearings and re-install the disc.
Additional information
| Weight | 7.3 kg |
|---|---|
| Dimensions | 30 × 30 × 15 cm |
