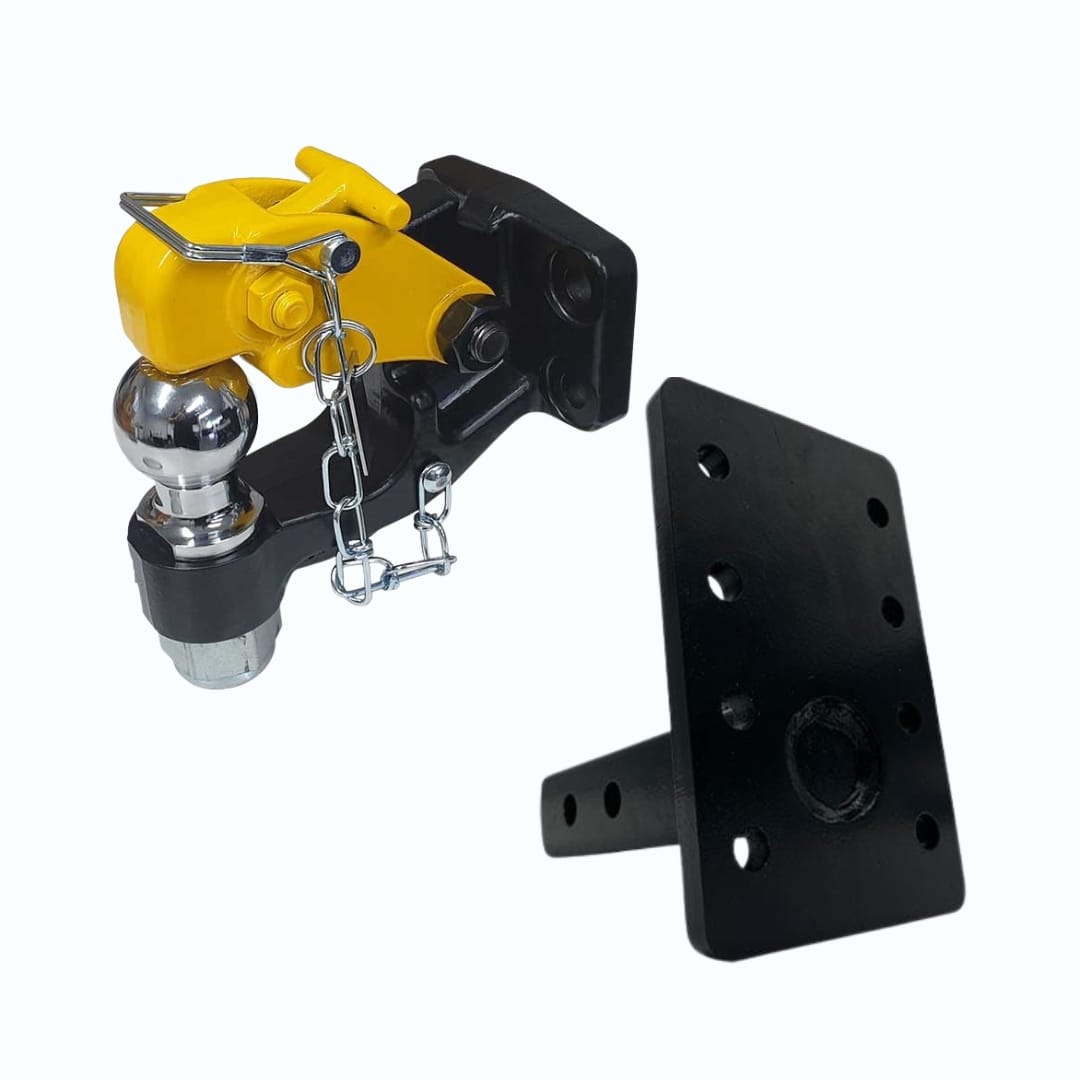

6.0T Combination Pintle Hook & Tow Bar Adaptor Kit
Price
Original price was: $361.50.$350.00Current price is: $350.00. Inc.GST
✓ Adaptable Towing: 6.0t Ring, 3.5t Ball
✓ Suits Heavy-Duty Truck Towing Application
✓ Strong Carbon Steel
✓ Buyers should be aware of fake Couplemate products for sale claiming ADR Compliance with no testing data. Ask your supplier for a CTA number or verify the product you buy is a Couplemate Genuine product and safe. These products can have a Gold Top.
Designed by Couplemate™ Australia.
Shipping
6.0T Combination Pintle Hook and Tow Bar Adaptor Kit
The Couplemate™ CM500 / CM510 Pintle Hook Tow Bar Adaptor Kit is the ultimate solution for versatile towing needs.
Designed with three mounting positions through eight holes, this adaptor allows for easy connection of pintle hooks to a 50mm receiver hitch, making it the perfect companion for heavy-duty towing.
Crafted with meticulous precision by Couplemate™ Precision Weld Technology, the CM510 sets the standard for durability and reliability in the market.
Constructed from solid K1045 Steel, this adaptor arm ensures unmatched strength and longevity, promising a secure towing experience every time.

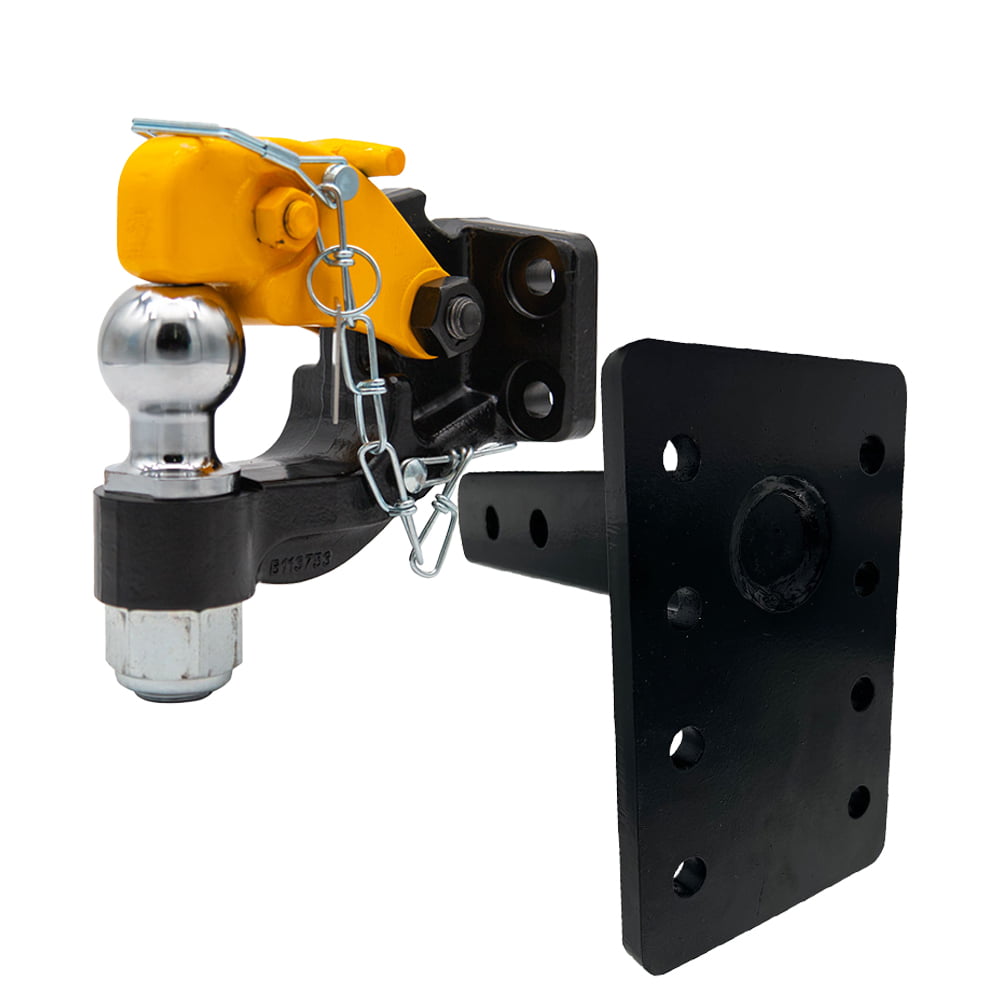

Kit Contents
When you buy the Couplemate™ Premium Combination Pintle Hook, you will receive:
- 1 x CM500 Combination Pintle Hook
- 1 x CM510 Pintle Hook Adapter
- 1 x Pintle Safety Chain, Clip and Pin
- 4 x Grade 8 1/2″ Bolts
- 4 x Spring Washers and Nuts
Spare parts for this product include the high tensile bolts and safety chain and clip.
6.0t ATM Pintle Tow Bar Adaptor | Australian-Made
The Couplemate™ CM510 Pintle Hook Tow Bar Adaptor is the ultimate solution for versatile towing needs.
Designed with three mounting positions through eight holes, this adaptor allows for easy connection of pintle hooks to a 50mm receiver hitch, making it the perfect companion for heavy-duty towing.
Crafted with meticulous precision by Couplemate™ Precision Weld Technology, the CM510 sets the standard for durability and reliability in the market.
Constructed from solid K1045 Steel, this adaptor arm ensures unmatched strength and longevity, promising a secure towing experience every time.
Product Specifications
- Materials: K14045 Steel, 250G Mild Steel
- Coating: Black Powder Coated
- Hole Spacings: 85mm x 45mm
- Mounting Hole: 12.50mm
- Bar Size: 50mm x 50mm
- Towing Capacity: 6000kg ATM
This product requires a 5/8″ or 16mm hitch pin (sold separately) to secure it in place. Couplemate™ recommends the use of a high-tensile pin.
This product can safely be used upside down (inverted).
CM500 Pintle Specifications
- D-Value: 33.6kN
- CTA: 38562
- Tow Ball Torque: 1067Nm
- Hole Centres: 45mm x 85mm
- Coating: Power-Coated
- Materials:
- Hitch Body: Forged SAE1045
- Tow Ball: HT4140 Alloy
- Chain & Clip: SAE1008, SS400
The CM500 is suitable for towing up to:
- 3500kg ATM on 50mm ball couplings
- 6000kg ATM with 75mm ring couplings.
Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 40 × 40 × 30 cm |
| Max. ATM |
