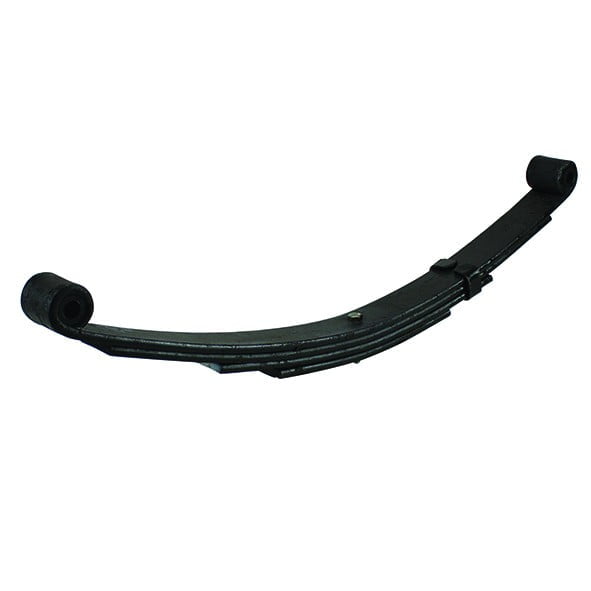

5 Leaf x 635mm Shackle Leaf Spring
Price
$78.50 Inc.GST
Shipping
5 Leaf x 45mm x 635mm Shackle Spring
45mm x 635mm shackle eye-to-eye spring is used on tandem trailers and are suitable for use with 13 / 14″ Wheels.
These springs are also available in either a centred or offset configuration in 4 or 5-leaf packs only. Additionally, these springs use polyurethane bushes which means they don’t need grease and are long-lasting.
Product Specifications
- Width: 45mm
- Length: 635mm
- Leaf Thickness: 8mm
- Free Camber: 100mm
- Maximum Compression: 50mm
- Spring Bolt Holes: 9/16″
- Leaf Ratings (per spring):
- 4 Leaf = 550kg
- 5 Leaf = 650kg
Review more variations of the 635mm spring below
- 4 Leaf x 635mm Shackle Leaf Spring
- 5 Leaf x 635mm Shackle Leaf Spring
- 4 Leaf x 635mm Shackle Leaf Spring – Galvanised
- 5 Leaf x 635mm Shackle Leaf Spring – Galvanised
- 4 Leaf x 635mm Shackle Leaf Spring – Galvanised – Offset
How to Measure Leaf Springs
Purchase your 45mm shackle springs below:
- 45mm Shackle Spring | 710
- 45mm Shackle Galvanised Spring | 710
- Shackle Offset Spring 45mm | 710
- 45mm Shackle Offset Galvanised Spring | 710
- 45mm Al-ko Millard 7-leaf Shackle Spring 835mm
Here is an excellent article on “Why do springs break”.
Finally, if you get a chance, please review this product. Caravan Spring choices.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 93 × 15 × 10 cm |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
