Guide to Wheel Bearings
While small and often overlooked, wheel bearings are vital to trailer and caravan mobility. This guide will help you understand their function...
Price
$9.75 Inc.GST
Tapered wheel bearings for Australian hubs and trailer axles.
Couplemate™️ only supplies high-quality and reliable Japanese bearings. For American-style bearings, see our range of Dexter Wheel Bearings.
Sold individually.

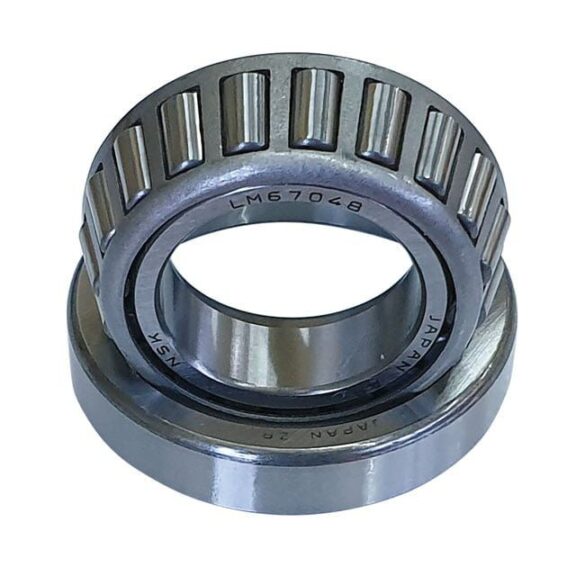

The LM67048 Japanese wheel bearing is the inner bearing for the Holden slimline hub, disc, and drum assembly.
Most trailers, caravans, and campers in Australia use tapered roller bearings. These are usually made from high-carbon chromium steel (often called chrome steel) and have cylindrical rollers. Some bearings can include other materials like stainless steel, ceramics, or plastic.
Trailers and caravans can only be as strong as its weakest component. In our experience, this is almost always the wheel bearings.
Couplemate™️ only stocks Japanese bearings because they are reliable and well-made. Each bearing includes a cup and cone to suit a variety of Australian trailers and caravan axle hubs.
Inner Bearing # | ID | OD | Outer Bearing # | ID | OD | |
Holden, LM | LM67048/10 | 31.75mm | 59.10mm | LM11949/10 | 19.05mm | 45.20mm |
Ford, SL, Slimline | LM68149/10 | 35.00mm | 59.10mm | LM12749/10 | 22.00mm | 45.20mm |
Parallel, PLL | LM68149/10 | 35.00mm | 59.10mm | LM68149/10 | 35.00mm | 59.10mm |
AL-KO 2T | 30210J | 50.00mm | 89.96mm | LM15123/245 | 31.75mm | 61.95mm |
AL-KO 3T | 30210J | 50.00mm | 89.96mm | LM29749/10 | 38.10mm | 89.96mm |
Video Guide: Learn how to measure trailer wheel bearings.
In our experience, there’s no set time to replace bearings. Instead, it’s better to ask:
This is because of different operating environments.
Finally, do not overtighten bearings. Overtightening causes the bearing cage to rub against the bearing rollers, creating heat and causing bearing degradation.
Loosen the axle nut sufficiently to free the bearing cage from the bearing rollers.
Weight | 0.25 kg |
---|---|
Dimensions | 8 × 8 × 2 cm |
