Double Jockey Wheel Clamp Kit – DBCL-B/OKIT10

Part No: JOCKEY-CLAMP-DOUBLE-BOLTON-M Categories: , Tag:
Part No: JOCKEY-CLAMP-DOUBLE-BOLTON-M Categories: , Tag:

Price

$105.00 Inc.GST

Provides extra support.
✓
Suits drawbars up to 150mm.
✓ Galvanised for longevity

Available for express dispatch daily.

Shipping

Select delivery location

Couplemate accepts PayPal, Visa and Mastercard.

Galvanised Double Jockey Wheel Clamp Kit

This Double Clamp is designed to provide exceptional support and stability for standard and medium-sized jockey wheels and stands. Engineered to meet the demands of various applications, this product offers unique advantages that make it ideal for use with extra-height jockey wheels.

Dual Clamping Mechanism: The Double Clamp boasts a dual clamping mechanism that firmly secures standard and medium-sized jockey wheels and stands. This design ensures a tight grip, preventing any unwanted movement during use.

Durable Construction: Made from robust materials and a galvanised finish, the Double Clamp is built to withstand the Australian outdoors. Its durability ensures long-lasting support, even in demanding environments.

Extra Support: One of the standout features of the Double Clamp is its ability to provide additional support. This is particularly useful for jockey wheels that must be raised for extra height. Whether working with trailers, caravans, or other mobile equipment, the Double Clamp ensures your jockey wheel remains stable and secure, even when extended to its maximum height.

Easy Installation: The Double Clamp is designed with user-friendliness in mind. Installing it is straightforward, requiring minimal effort and no specialized tools. This means you can quickly set it up and get to work.

Product Specifications

Designed to suit the trailer and caravan drawbars:

  • 50mm x 100mm
  • 50mm x 125mm
  • 50mm x 150mm

This product suits standard 48mm jockey wheel tubes.

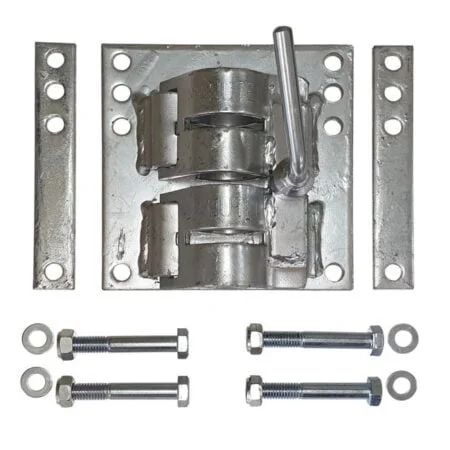

Kit Contents

  • 1 x Double Clamp
  • 2 x Clamp Plates
  • 4 x 1/2″ Bolts
  • 2 x Spring Washers
  • 2 x Washers
  • 2 x Nuts

Frequently Asked Questions

What is the length of the bolts in the kit?

  • Bolt Length: 88.5mm (not including bolt head)
  • Threaded Section: 35mm
  • Non-Threaded Section: 53.5mm

*You’ll want to ensure you have at least 11mm of threaded section for nuts.

What is the distance between the slots in the actual clamps?

  • Top Slot: 10mm
  • Middle Slot: 8mm
  • Bottom Slot: 10mm

What is the distance between the top and bottom holes on the clamp plate?

  • Distance between top and bottom hole: 150mm
  • Distance from centre hole to centre hole: 165mm

This clamp is compatible with these jockey wheels



Additional information

Weight6 kg
Dimensions20 × 19 × 15 cm
Brand

Manutec

Bolt Size

1/2"

Coating

Hot Dipped Galvanised
