50mm Square Axle & Spring U-Bolt Kit
Price
$39.75 – $43.75 Inc.GST
✓ Attaches 45mm wide leaf springs to 50mm square axles.
✓ Includes galvanised u-bolts, fish plates, washers, and Nyloc nuts.
✓ Also includes optional spring spacer pads for new axles.
All dimensions (length, width) are the internal U-Bolt measurements.
Shipping
50mm Square U-Bolt & Plate Kit
The Couplemate™ 50mm U-bolt kit for square axles includes Galvanised u-bolts, Nyloc nuts, and fish plates.
Spring U-Bolt Kits are designed to safely secure leaf springs to trailer and caravan axles. U-bolts are link between your trailer and the road, hence the importance of using u-bolts made from high-quality materials.
Why U-bolts May be the Major Cause of Accidents. Click here

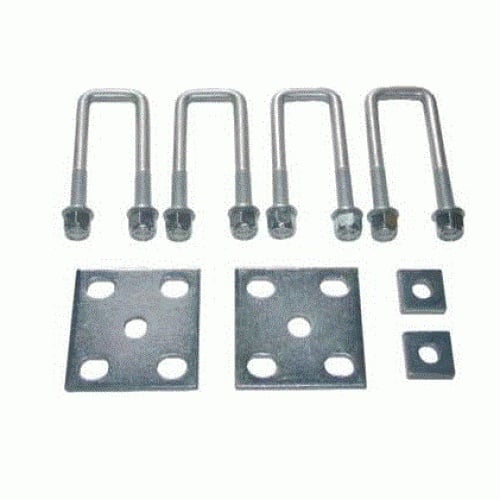

This U-Bolt Kit is supplied with:
- 4 x U-Bolts (choose preferred length)
- 8 x Washers
- 8 x Nyloc nuts
- 2 x Fish Plates
- 2 x Axle Pads/Spacers
50mm Square U-Bolt Specifications
U-Bolts are measured on their internal dimensions to ensure proper fit and alignment with the equipment. See our technical diagram for a visual reference.
- Internal U-Bolt Width: 50mm
- Internal U-Bolt Leg Length:
- 100mm (4″)
- 125mm (5″)
- 150mm (6″)
- 175mm (7″)
- 200mm (8″)
- Thread: 1/2″ BSW (12.7mm)
- Coating: Traditional hot-dipped galvanised
Couplemate™️ supplies these kits for new leaf spring suspension systems.
U-Bolt & Plate Kit Installation (User Guide)
Couplemate™️ 50mm Square U-Bolt & Plate Kits are easy for trailer spring maintenance.
- Place U-shaped curve over axle beam.
- Align the centre spring bolt and U-bolt legs with the fish plate holes.
- Secure fish plate to leaf spring through supplied washers and nylock nuts. Tighten nuts to 60Nm with a socket.
Important: Check U-bolts and re-tighten nuts after the first trip and every 250 km thereafter.
Safety Precautions
- Do not re-use Nyloc nuts. Nyloc nuts are often less effective after the first use. This is because the nylon material (the key component of a nyloc nut) has already once conformed to the thread profile.
- Do not use a rattle gun to tighten. Rattle guns often tighten u-bolts too fast, too tight, and uneven. This can cause nylon overheat and risks undue wear.
- Ensure the axle has welded axle pads. If not, use the axle pads supplied with the spring U-bolt kit.
Available U Bolt Kits
Additional information
| Weight | 4.9 kg |
|---|---|
| Dimensions | 25 × 15 × 5 cm |
| Bolt Diameter | 12.7mm |
| Coating | Galvanised |
| Spacer Plate Type | Fish Plate, Spring Spacer |
| Stud Thread | 1/2" BSW |
| U-Bolt Length | 100mm, 125mm, 150mm, 175mm, 200mm |
| U-Bolt Width | 50mm |
| U-Bolt Application | Spring U-Bolts |
Our Service Lifetime Warranty
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.
Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.
Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.
60-Day Returns
After 60 years of experience, we know that life has its unpredictable moments.
All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.
You can view our full policy for change-of-mind returns here.
