3″ Tow Ball (Gooseneck)
$285.00
✓ Rated to 10000kg maximum ATM.
✓ Made from high-tensile engineering steel.
✓ Chrome finish and made in Brisbane, Australia.
Certified Compliance with ADR 62 (CTA-047277).
Shipping
3″ Tow Ball for Australian Gooseneck Couplings
Gooseneck trailers and fifth-wheelers require larger towing equipment due to their increased capacity. This 3-inch towball is rated to a 10,000kg maximum ATM, and is designed for the Couplemate™ Australian-style Gooseneck coupling (CM520).

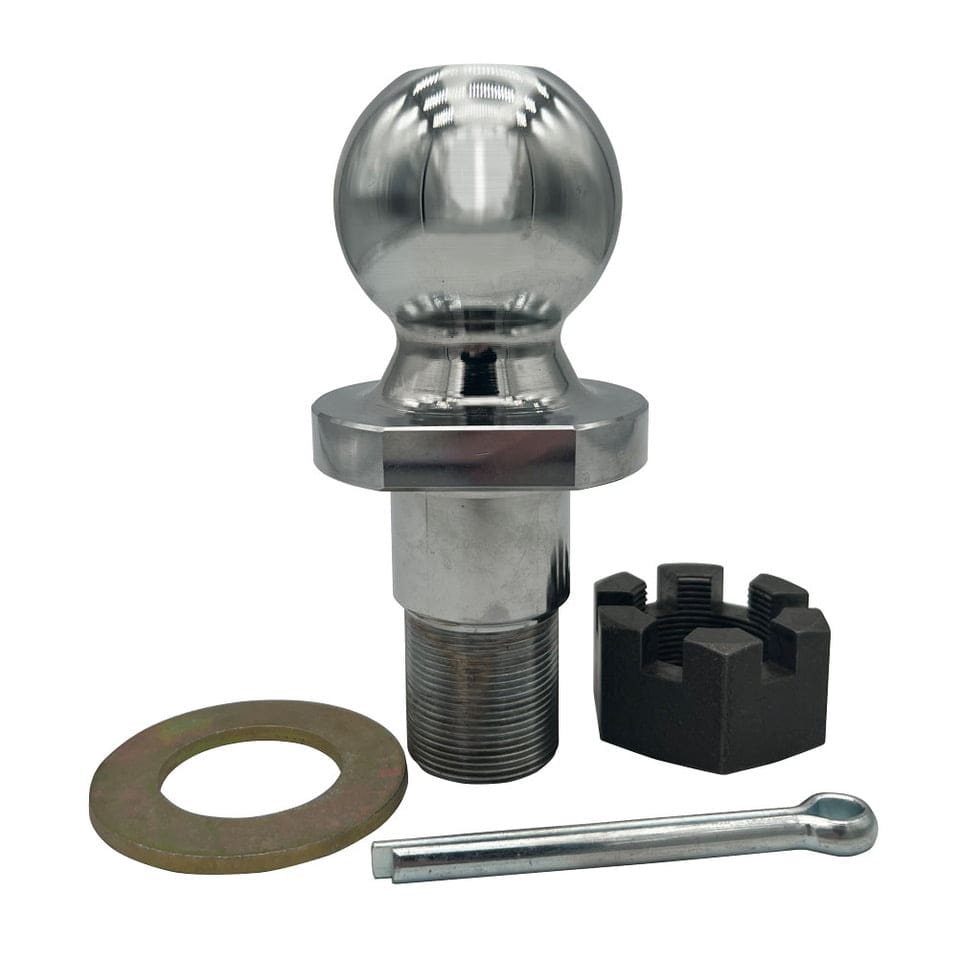

Each unit is supplied with:
- 1 x High-Tensile Tow Ball Nut (1-1/4″ UNF)
- 1 x Zinc Flat Washer (5mm thick)
- 1 x M10 Split Pin (100mm length)
N.B. The ball thread is not pre-drilled.

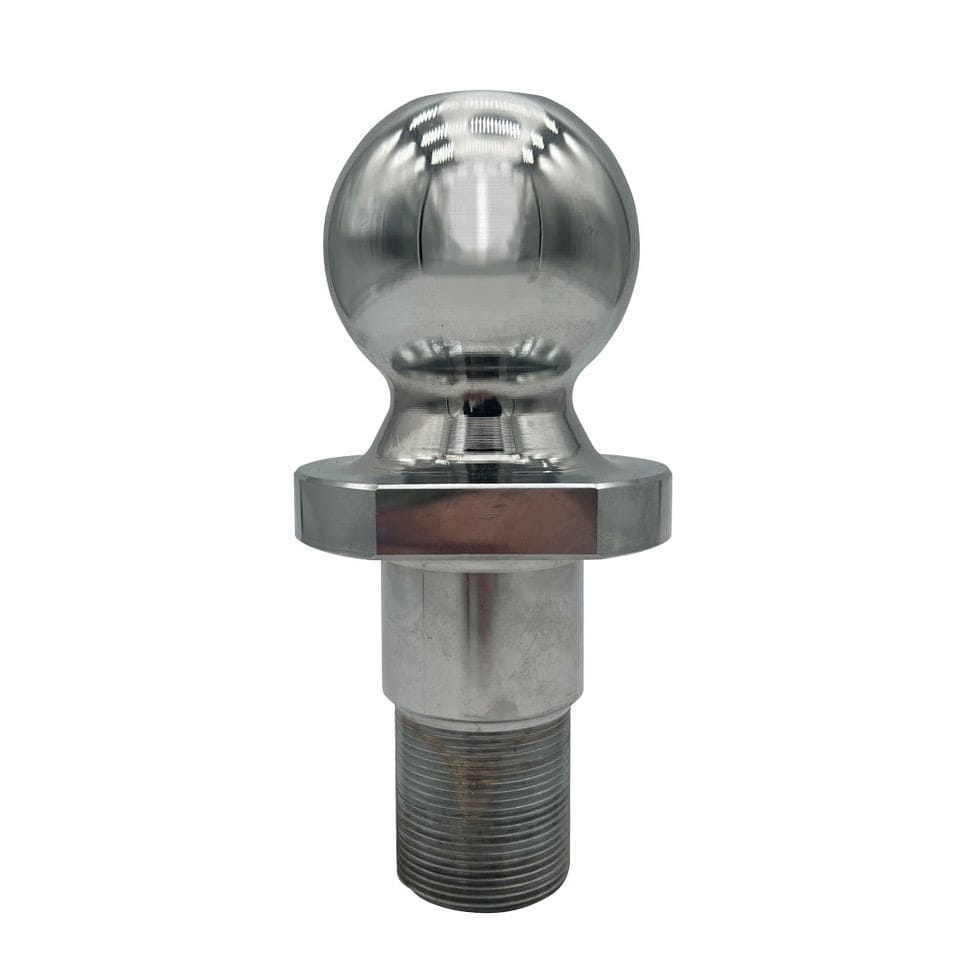

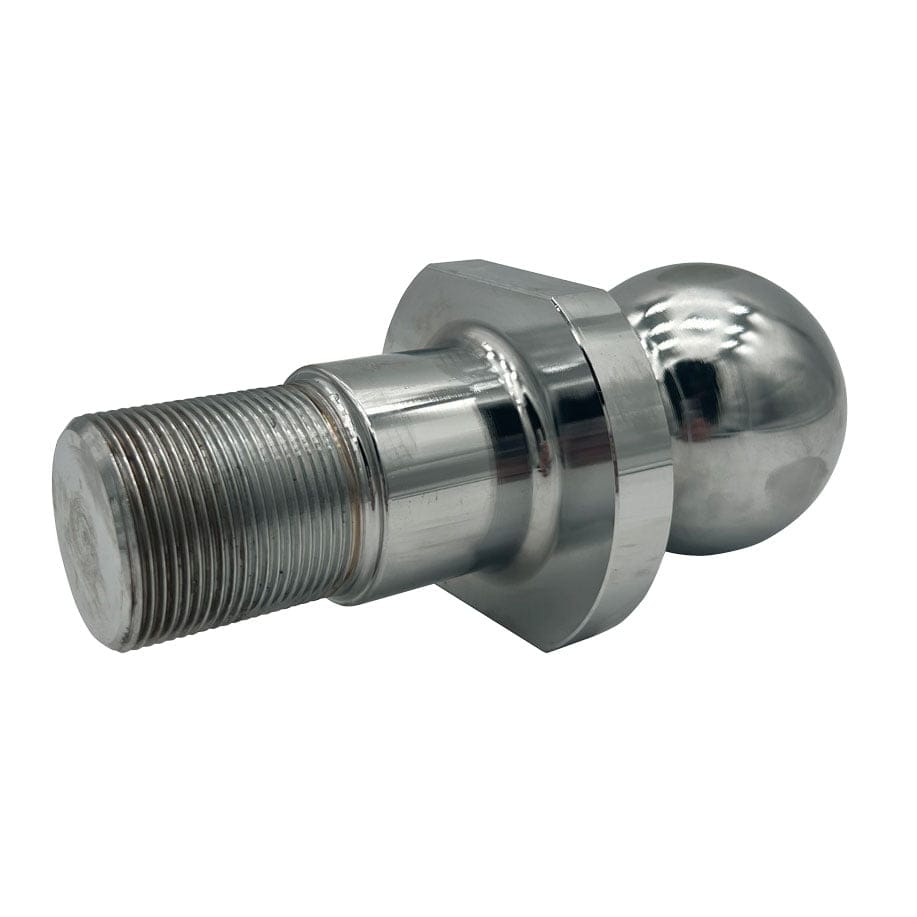

Nominal 3″ Tow Ball Shank Specifications
- Diameter: 50mm
- Length: 87mm
- Thread Length: 48mm
- Thread Type: 1-3/4″ UNF
- Threads per Inch: 12
ADR & RVS Compliance
Our 3-inch tow ball is compliant with:
- Australian Standards (4177)
- ADR 62/02 (Mechanical Connections between Vehicles).
Component Type Approval: CTA-047277
“Components supplied with a CTA number guarantee that it has been tested to the relevant standards. Moreover, it ensures that a consistently safe product will be supplied (source).”
Our team is able to provide a printed copy of the CTA letter with your order upon request. Alternatively, the digital version is available here: CM298 3″ Tow Ball Approval Letter
For High Strength Towing Applications
The Couplemate™ Core Range ensures strength and safety through solid engineering.
- Rating: 10,000kg maximum ATM
- D-Value: 58kN
- V-Value: 40kN
- Torque Setting: 3114Nm
View product documentation online: Couplemate 3-inch Tow Ball Specifications
3″ Tow Ball for 10.0t Gooseneck Coupling
The CM298 was designed and manufactured to suit our CM520 Fifth-Wheel coupling (CTA-047029).
This ball can be used in a 40mm tow bar mount position. For plates 40mm or smaller, Couplemate™ recommends the use of 10t Ball Collars to assist stress load resilience (sold seperately).
All installers must ensure the mounting towbar and/or bedplate are fit for application prior to installation.
Made from Special High Tensile Steel
Our internal engineers and production team quality check all manufacturing materials.
The Couplemate™ 3-inch tow ball is manufactured from Grade 4140 high tensile steel. As an engineering steel, 4140 is universally known for its strength and robust composition.
Given Australia’s tough towing conditions, 4140 steel provides the necessary mechanical properties to ensure sufficient strength and security.
(Excerpt from the BlueScope Catalogue, page 138).

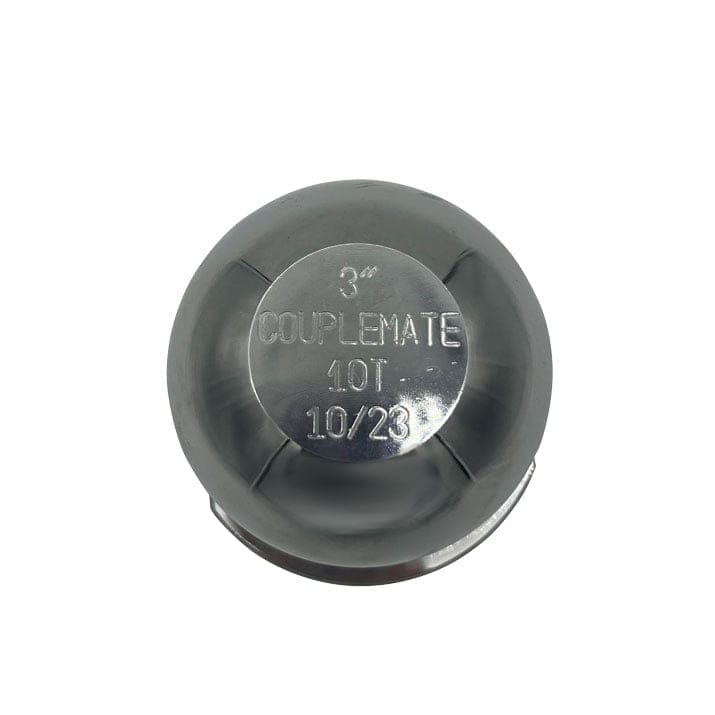

AS 4177 Manufacturer Markings
Couplemate™proudly manufactures our 10t ATM rated CM298 in our Brisbane Headquarters.
Per Australian Standards, each component is marked with:
- Tow Ball Size: 3-inch
- Manufacturer: Couplemate
- Tow Ball Rating: 10T
- Batch Number: Month / Year
Additional information
| Weight | 5.7 kg |
|---|---|
| Dimensions | 20 × 10 × 10 cm |
| Materials | High Tensile Steel (4140) |
| Max. ATM | 10,000kg (10.0t) |
| Coating | Chrome |
