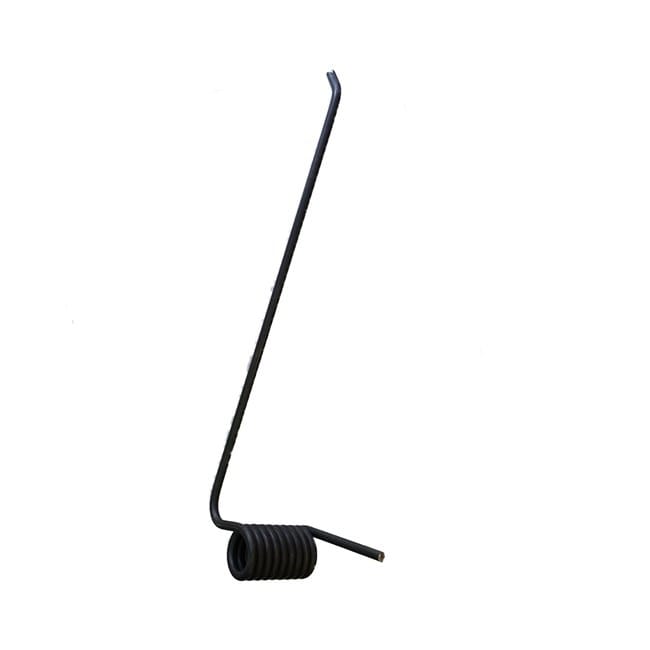

40kg Tailgate Ramp Loader Spring (Right) – 1005R
Price
$115.00 Inc.GST
16mm Torsion Spring for Tailgates & Ramps
✓ Suits various trailer applications.
✓ Made of high-quality steel.
✓ Made in Australia.
Important: 60kg rating is based on a 1.2m tall tailgate.
Shipping
40kg Ramp Loader Spring (Right) for Horse Floats and Tailgates
A tailgate ramp loader spring is a type of torsion spring used to assist in the opening and closing of tailgates, horse floats, and ramp loaders. It is typically made of high-quality steel and is designed to withstand heavy loads.
Horse float tailgate and ramp loader springs are available in various sizes to suit different weight capacities. The most common sizes range from 40kg to 100kg, but larger springs are also available for heavier applications.
When choosing a tailgate, horse float, or ramp loader spring, it is essential to select the correct size for the weight of the tailgate, horse float, or ramp loader it will use. It is also crucial to ensure the spring is installed correctly for optimal performance and safety.
40kg Spring Specifications
- Small Tail: 150mm from the centre of the coil
- Long Tail: 705mm from the centre of the coil
- Coil O.D.: 87mm
- Coil I.D.: 55mm
- Diameter: 16mm
- Right: Drivers Side
How to Choose the Right Tailgate Spring
Weight Capacity
It is a mistake to guess the weight of your tailgate. The tailgate will only come down halfway if the spring is too heavy. This indicates you have chosen a spring too heavy for your fate.
Often, folks pick the largest size to ensure the spring is heavy enough for the required lift. Once installed, with an oversized, heavier spring, the horse float tailgate swings up so violently that it slams into the trailer with enough force to cause damage.
It is critical to have an ideal weight when lifting and lowering tailgates.
Buying the correct ramp spring is simple if you follow a few easy steps. (You will need a scale.)
- Lower the ramp onto the scale (use a small piece of wood to prevent damage to the scale). You now have the ramp’s weight measurement.
- Select a spring size of 10kg that is more substantial than the scale indication.
- Once installed, the load on your ramp will be 10kg at the point where it touches the ground.
Car trailers and low loaders use drop or overlay axles. This type of axle lowers the centre of gravity, lowering the trailer.
Tailgate, horse float, and ramp loader springs are essential safety features. Choosing and installing the correct spring can help ensure your and others’ safety when using them.
Left or Right
The Tailgate Ramp Loader springs come in both left-hand and right-hand options.
To tell which spring you require, the smaller tail end should be pointed away, and whatever side the longer spring sits on is the side it’s suitable for. For example, if the short tail is pointed away from your body, and the long tail is on the right, you require a right tailgate ramp loader spring.
Tailgate spring holders are laser-cut and machined in Brisbane.
Below are links to a variety of other size springs
- 40kg Tailgate Ramp Loader Spring (L)
- 40kg Tailgate Ramp Loader Spring (R)
- 60kg Tailgate Ramp Loader Spring (L)
- 60kg Tailgate Ramp Loader Spring (R)
- 80kg Left – Horse float Tailgate Ramp Spring
- 80kg Right – Horse float Tailgate Ramp Spring
- 100kg Left – Horse float Tailgate Ramp Spring
- 100kg Right – Horse float Tailgate Ramp Spring
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 80 × 30 × 20 cm |
| Spring Type | Torsion |
