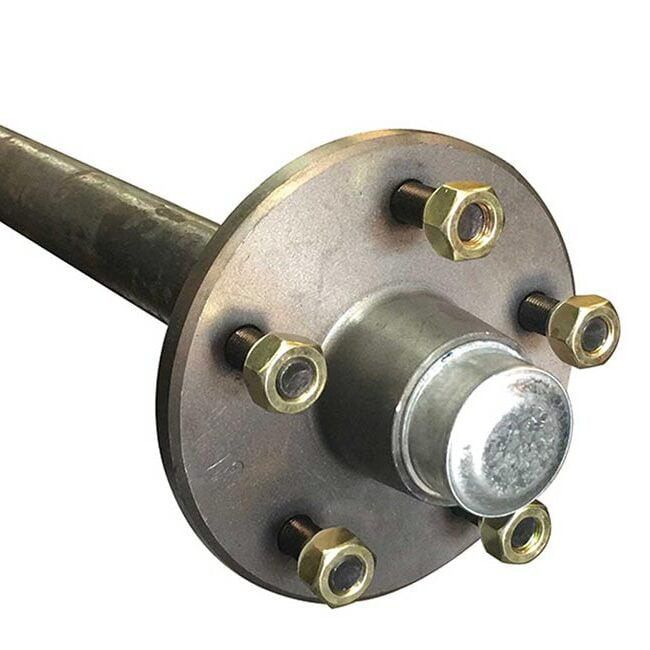

39mm Round Unbraked Axle Assembly
39mm round unbraked lazy axle assembly is ideal for small and boat trailers up to 750kg capacity. Boat trailer 39mm axle buyers may like to call us for galvanised equipment.
We manufacture our axles from Australian steel and hot-dip galvanise them in Brisbane. We then machine the finished galvanised product.
39mm round assemblies are supplied with Japanese bearings and hubs, ensuring the best quality. It consists of the following:
- 1 x 39mm round axle
- Two lazy hubs
- 2 x Japanese Bearings
It’s ideal for small trailers with a weight of up to 750 kg and comes greased and wholly assembled for your convenience.
However, 39mm Round Axle Assembly is unsuitable for trailers over 2100mm or tandem. In the case of a wide trailer axle assembly, the axle tends to suffer from axle flex. This wears out the springs rapidly due to the reverberation of vibration starting from the centre of the axle to the spring. The springs wear out much more than they should.
Some of the models this is suitable for our Ford, HT Holden, Commodore, HQ Holden, and Landcruiser 6-stud.
Log on to Couplemate’s website for a wide range of caravan and trailer parts like bearing seals, kits, and parts, shock absorbers, and independent coil suspension. We offer delivery in Australia, New Zealand, the USA, Canada, France, Ireland, and Germany.
Axles and ratings are as follows
- 45mm Round Unbraked Lazy Axle Kit – 1450kg
- 40mm Square Axle w/ Unbraked Hub – LM (1000kg)
- 45mm Square Unbraked Lazy Axle Kit – 1450kg – 1600kg
- 50mm Square Unbraked Lazy Axle Kit
- 60mm Round Axle 3t Unbraked Axle
- 3t x 65mm Round Lazy Axle Kit
Calculating The Correct Axle Measurements
- Measure the offset wheel. The wheel offset is the distance between the hub’s inside and the rubber’s outside.
- Add 50 mm to the offset. Alternatively, choose your distance between the rubber and the chassis.
- Multiply by 2 for both sides. Add your chassis width to the above number.
Still unsure of what measurements to take? Check out this handy guide below:
[P] – Check material specifications. What size and profile is the axle (for example, 45mm Square)
[T] – Overall axle length (tip to tip)
[F] – Hub face-to-hub face measurement
[A] – Chassis width
[C] – Tyre clearance
[B] – Back offset
[H] – Tyre to chassis
[G] – Axle pad centres
Identifying Bearing Combinations
You will also need to identify your bearing combination, which can be done by pulling off a hub and bearings and locating the number laser engraved onto the bearing. You will require both the inner and the outer bearing numbers.
Additional information
Weight | 40 kg |
---|---|
Dimensions | 200 × 15 × 15 cm |
Stud Pattern (PCD) | 5 Stud Landcruiser (5 x 150mm), 6 Stud Landcruiser (6 x 139.7mm), Commodore (5 x 120mm), Ford (5 x 114.3mm), Holden HQ (5 x 120.65mm), Holden HT (5 x 107.95mm), Jeep (5 x 127mm) |
