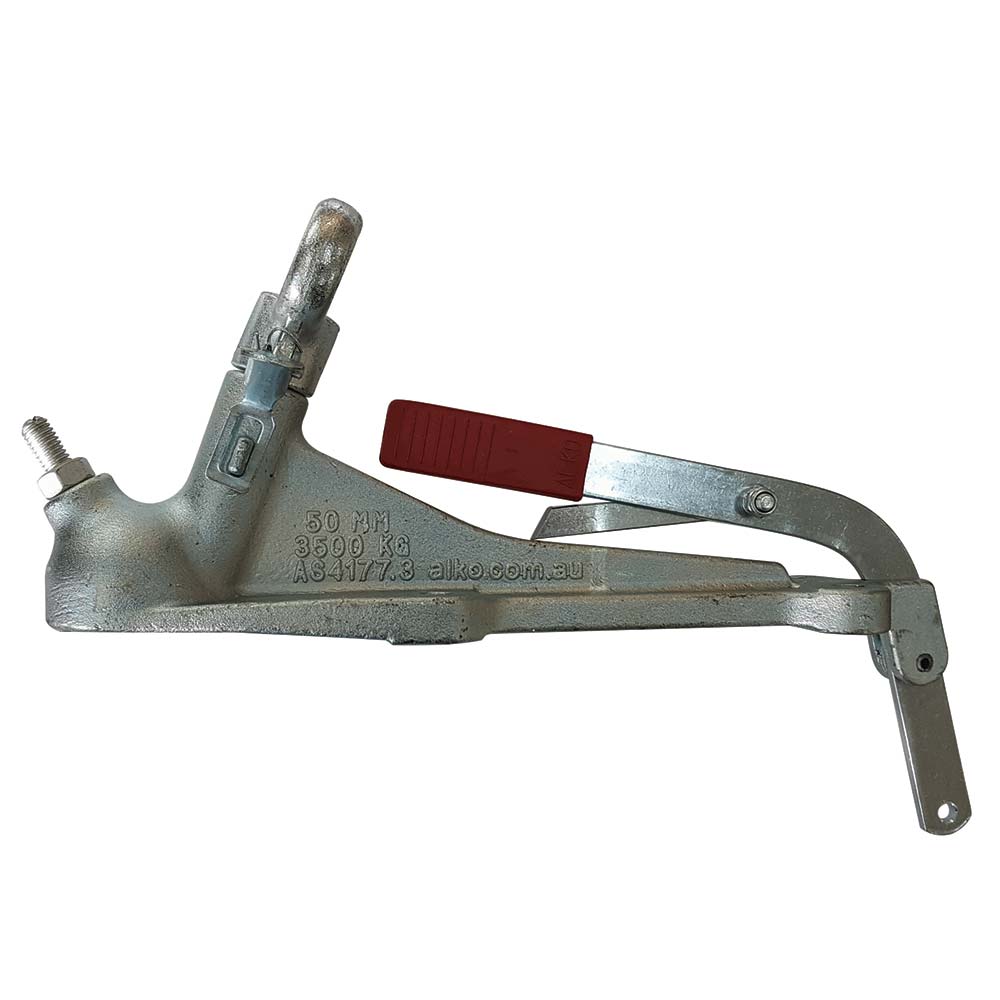

AL-KO 3500kg 50mm Ball Coupling, CTA-060191

Name: AL-KO 3500kg 50mm Ball Coupling, CTA-060191
Brand: AL-KO International
SKU: COUPLING-50
Availability: InStock

Part No: COUPLING-50 Category: Standard Ball Couplings

Part No: COUPLING-50 Category: Standard Ball Couplings

Price

$115.00 Inc.GST

✓ ADR Compliant.
✓ Supplied with hand brake.
✓ Rated for up to 3500kg.
✓ Genuine AL-KO product.

Shipping

Select delivery location

3.5t Electric Caravan Coupling

3.5t electric caravan coupling includes a park brake lever. In our opinion, the Alko® electric caravan coupling is, without doubt, the most popular brand of caravan coupling money can buy.

Key Features

3.5t AL-KO coupling
Hole spacing is 182.5mm x 55mm – 4 x 13.5mm holes.
Cable kit not included (CM791)

The AL-KO 3.5t electric caravan coupling is simple to attach and complies with Australian Standard 4177.3

Marine Coupling

Al-ko recommends cutting off the handbrake to convert this electric coupling to a marine coupling.

Australia Standards

Your coupling must have these words on it to comply with Australian Standards.

Manufacturers Mark
AS 4177.3
50mm
3500kg

Electric Coupling 3500kg Rated with 1/2 inch BSW ball adjusting nut.

The adjustment nut on the head of the coupling is a 1/2″ BSW thread.

This nut prevents the Electric Coupling from jumping on the tow-ball and creates and tight fit by removing slop that can occur through wear.

Electric Caravan Coupling Adjustment

To properly adjust this nut;

Put pressure on the Electric Coupling, so it is firmly on the tow ball.
Loosen the nut.
The thread so you can feel it touch the top of the tow ball.
Now tighten the locking nut being careful not to unscrew the threaded screw.

Finally, you have a cable adjustment to check.

The cable running down to each handbrake lever should be tight but not overly tight. Adjust the cable brake adjuster just behind your handbrake until this cable is taut.

One final thing, your coupling weight, when attached, should be around 8% of your total load. Your coupling should now be tight and ready to tow.

Sure, there are cheaper couplings on the market. We buy and recommend only the best products for your investment dollar.

Review more couplings from these links below

Additional information

Weight	8 kg
Dimensions	40 × 20 × 10 cm

Our Service Lifetime Warranty

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Couplemate™ is a manufacturer and vendor of high-quality towing, trailer, and caravan components. Couplemate™ Core Goods and Custom Work are guaranteed to be free of defects for the service lifetime of the product when used as intended.

Warranties are non-transferrable and Couplemate™ requires satisfactory proof of purchase prior to issuing a remedy. The full Couplemate™ Warranty Policy can be found in the Terms & Conditions: Section 8 – Consumer Guarantees & Warranty.

Warranties are in addition to your rights under the Australian Consumer Law. If something is wrong with your order, please contact our team.

60-Day Returns

After 60 years of experience, we know that life has its unpredictable moments.

All Couplemate™ orders (online, over the phone, or in-store) have a 60 day period for change-of-mind returns and exchanges. There are some items that can’t be returned and some returns may incur a 15% restocking fee.

You can view our full policy for change-of-mind returns here.
