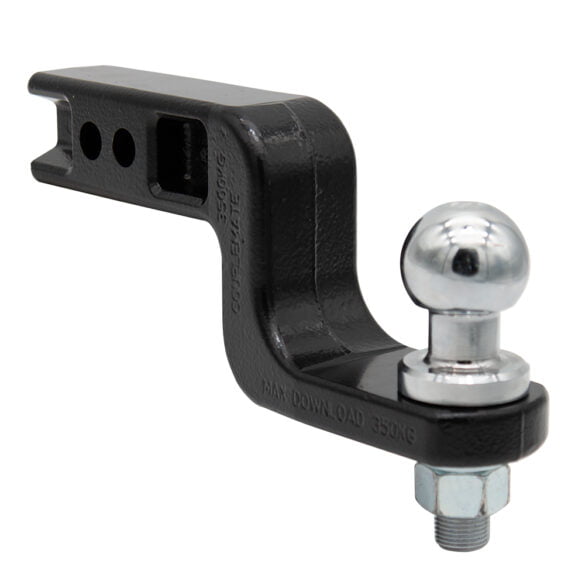

100mm Drop Tow Bar Receiver Hitch Kits 3.5t

Name: 100mm Drop Tow Bar Receiver Hitch Kits 3.5t
Brand: Couplemate™ Australia
SKU: RECEIVER-522
Availability: InStock

Part No: RECEIVER-522 Category: Towbar Hitch Receivers & Tongues Tags: Australian Made, Couplemate™ Core, Solid Cast Towbar Receiver Arms

Couplemate Core Range – Single Product Page

50mm Tow Ball Receiver Hitch Australian Made 100mm Drop

Part No: RECEIVER-522 Category: Towbar Hitch Receivers & Tongues Tags: Australian Made, Couplemate™ Core, Solid Cast Towbar Receiver Arms

Price

$124.50 Inc.GST

Engineered for Quality.

✓ ADR Compliant & Tested
✓ Solid Cast Receiver
✓ Suits 50mm Tow Ball & DO35 Tow Pin

Designed and manufactured by Couplemate™ Australia.

Shipping

Select delivery location

100mm Drop Tow Bar Receiver Hitch Kits 3.5t | Trailers, Caravans & Campers

A tow bar receiver hitch kit is a set of components that allow you to attach your trailer or caravan to your tow vehicle.

Couplemate™ Trailer Receivers are made from Solid Cast Iron, improving the connection strength between your trailer and tow vehicle.

Over time, cast steel products are superior to fabricated/welded products. Welded ball mounts and hollow receivers can distort under off-road conditions and shock-loading events on the highway. When inverted, hollow hitches are at a greater risk of deforming.

Couplemate™ recommends that all off-road couplings use a solid cast receiver hitch. This includes:

Key Benefits

Stronger connection between your trailer and tow vehicle.
It can be safely inverted to obtain additional height.
Long-lasting product that will withstand harsh towing conditions.
Purchases directly support the Australian economy.

The Couplemate™ Trailer Receivers are one of the last trailer hitches on the market to be Australian-made. The receiver shanks are cast in Sydney, drilled and machined in our Brisbane warehouse.

Read more about our commitment to Australian-made here.

What is a Tow Bar Receiver Hitch?

Your tow ball receiver is the bar in your tow vehicle and connects to your trailer coupling, usually by a tow ball or a tow pin.

Hitches are designed with different towing capacities, making choosing the right one based on your requirements crucial. Ensure that your trailer weight is not higher than your towbar rating (e.g., if your tow rating is 3.5t, then the rating of your hitch must also be 3.5t).

For more information on the different kinds of trailer hitches, read our article: “Choosing the Right Hitch: Guide to Tow Ball Receivers.”

Product Specifications

The kit includes a cast receiver, tow ball, and Class IV Receiver Hitch Pin with R-Clip to hold the receiver hitch firmly.

Materials: Solid Cast Iron, Steel
Tow Ball Torque Setting: 272Nm
Shank Diameter: 22mm (7/8″)
Tow Ball Shank Length: 62mm
Horizontal Loading Capacity: 3500kg ATM
Vertical Loading Capacity: 3500kg ATM

Engineered for Quality

The Couplemate™ Core product range is designed, engineered, manufactured and tested by Couplemate™ exclusively.

Our Engineers have tested this product under Australian Standards AS4177. It is ADR complaint, so you can feel confident knowing that you have a safe and secure product.

View the Engineering Drawings Below for further details:

Adjustable Drop Receivers below

Related Towing Products

Did You Know? All axles require electric or electrically operated hydraulic brakes if you tow over 2000kg (2.0t).

Couplemate™ has a range of suitable towing products for your >2000kg trailer:

Noisy Tow Bar? Try our Anti-Rattle Shim Kit.

Additional information

Weight	6 kg
Dimensions	40 × 20 × 10 cm
AS4117	ADR 62
Component Type Approval	CTA-060477
Materials	Ductile Iron (400/12), K1045, AISI 1015
Torque Setting	272Nm
Shank Size	22mm
