DeeMaxx 12-inch Disc Rotor | Ventilated

Name: DeeMaxx 12-inch Disc Rotor | Ventilated
Brand: DeeMaxx
SKU: DISC-12-DeeMAXX-Dex2T-6s-L/C
Availability: InStock

Part No: DISC-12-DeeMAXX-Dex2T-6s-L/C Category: Disc Hub Rotors Tags: American Trailer Parts, AU 2.25t, Boat Trailer Parts

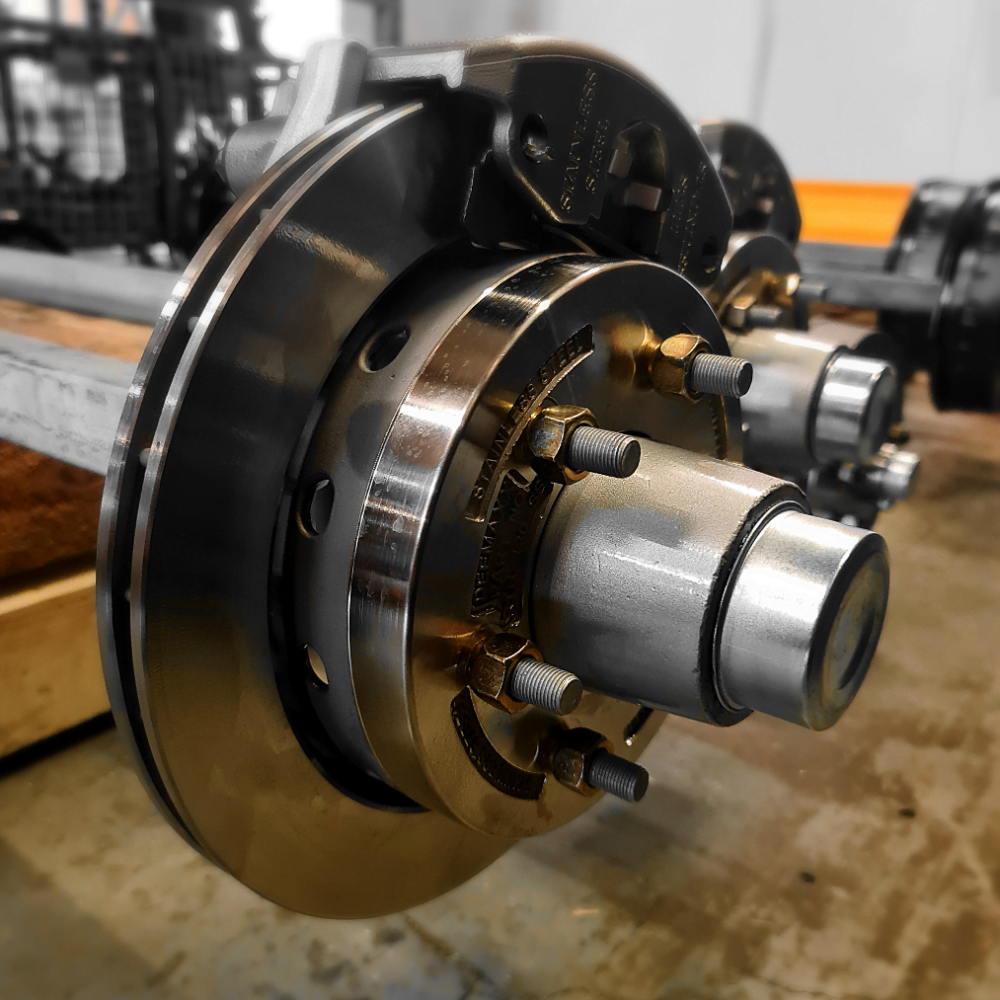

12inch DeeMaxx Rotor on Axle Advanced Heat Dissipation

Part No: DISC-12-DeeMAXX-Dex2T-6s-L/C Category: Disc Hub Rotors Tags: American Trailer Parts, AU 2.25t, Boat Trailer Parts

Price

$195.00 Inc.GST

12″ Ventilated Disc Rotor for 6S Landcruiser Rims

✓ Advanced heat dissipation via ventilation.
✓ Dacromet-coated for superior corrosion resistance.
✓ Suits American-style boat trailer brakes (DeeMaxx and Kodiak).

Designed and manufactured by DeeMaxx.

Shipping

Select delivery location

12″ DeeMaxx Disc Rotor | Ventilated

12″ DeeMaxx Disc Rotors are known for their ability to provide superior heat dissipation. By having ventilation gaps, air can better circulate in your discs which helps keep caliper brakes cooler.

DeeMaxx is known for their great quality in American boat trailer rotors. With a rotor thickness of 22mm, these brake hubs will suit both DeeMaxx and Kodiak hydraulic caliper brakes.

Each disc is supplied dacromet coated, as it provides great rust resistance which is especially important for boat trailers exposed to salt water.

You can see our full range of American Boat Trailer Parts here.

Product Specifications

Stud Pattern: 6S Landcruiser (6 x 139.7mm)
Stud Type: 1/2″ UNF
Stud Centre: 69.85mm
Coating: Dacromet
Rotor Thickness: 22mm
Maximum Rotor Diameter: 304.80mm (12″)
Bearings: Dexter 2.0t Marine

Suits 2.0t American Dexter Bearings

Inner Bearing: 25580/20 (ID 44.45mm) (OD 82.93mm)
Outer Bearing: 15123/245 (ID 31.75mm) (OD 59.10mm)
Grease Seal: SKU (ID 50.00mm) (OD 85.00mm)
Dust Cap: DC1980

Discs are supplied without bearings. Spare bearing kits can be purchased separately here.

Installation Overview

How to dry fit disc rotor.

Fit the bearings into the disc rotor without grease (initially).
Fit the rotor onto the axle. Lock the axle nut.
Bolt the mounting plate onto the disc caliper
Place a cable tie around the rotor.
Install the caliper and mount it over the disc rotor.
Install an airline into the hydraulic thread to blow out the piston onto the disc pad, locking the disc pad into position.
Tack weld the mounting plate into position.
If you are happy with the location of the mount, remove the caliper and rotor to finish welding.
Grease the bearings and re-install the disc.

Find more Deemaxx parts here.

Additional information

Weight	12 kg
Dimensions	30 × 30 × 15 cm
SKU	RTR/HUB-120-MAXX-6
Brand	DeeMaxx
Stud Pattern	6S Landcruiser (6 x 139.7mm) (1/2")
Stud Centre	68.85mm
Caliper Brake Type	DeeMaxx, Kodiak
Disc Diameter	304.80mm (12")
Disc Thickness	22mm
Rust Protection	DeeMaxx Dacromet Coating
