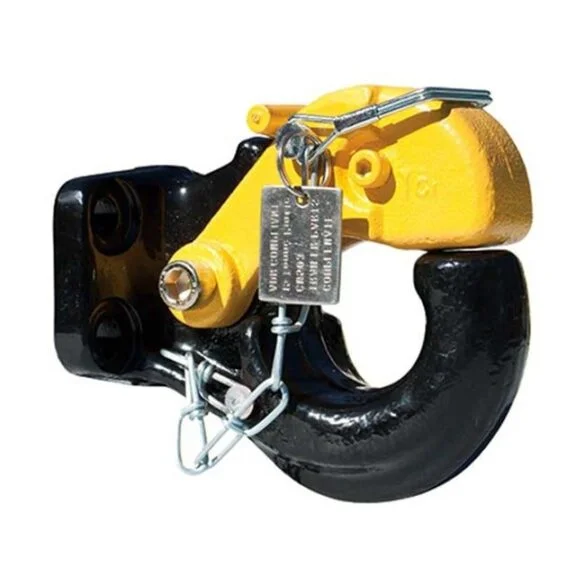

16.5t Truck Pintle Hook CTA-045955
Price
$275.00 Inc.GST
- 16.5t Truck Pintle Hooks towing capacity is 84kN.
- All Pintle Hooks are tested, approved and supplied with CTA certification.
- Note: Buyers should be aware of fake Couplemate products for sale claiming ADR Compliance with no testing data. Ask your supplier for a CTA number or verify the product you buy is a Couplemate Genuine product and safe. These products can have a Gold Top.
Shipping

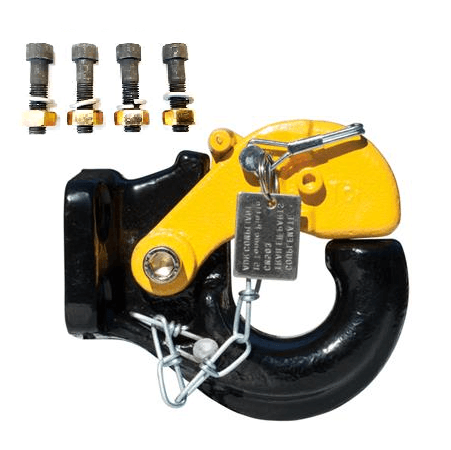

16.5t Truck Pintle Hook – 84kN
Couplemate 16.5t truck pintle hook ratings are 84kN, and your invoice includes all the required ADR certification details.
An example of a rating is a 10-t trailer towed by a 10-truck; the D-value is 49kn. (Refer to the table below for the calculation of your towing combination.)
Another example is a 20-ton truck that can tow a 6-ton trailer; the D-value is 45kN. The table below shows variable towing capacities.
What is the new Australian RVS Legislation?
Road vehicle regulation in Australia started a new era on 1 July 2021.
Read more about the new laws here.
What weight can a pintle hook carry?
2 forces are acting on a pintle hook; they are
- D-value is the horizontal force of towing a trailer.
- S-value is the downward vertical force on the trailer tow bar.
Important: Select the correct pintle hitch for your truck from our calculator below.
CTA Road Vehicle Component Type Approval
This component is approved under section 177 of the Road Vehicles Standards Rules 2019 and fully complies with the applicable national road vehicle standards.
CTA Approval is available for download upon purchase. Vehicle inspectors may want to see this certificate for registration and certifications. Read more on CTAs here.
How Does a Pintle Hook Work?
- Attain Trailer Weight
- Attain Truck GVM
- Select the correct D-value from the chart below
- Install the Pintle Hook into the 85mm x 45mm hole spacings.
- Failure to select the correct D-Value to match your truck/trailer combination will result in excessive component wear.
Attach couplings to a tow bar or directly to the truck chassis via standard mounts (85mm x 45mm).
Standard American Equipment (SAE) does not satisfy Australian Standard testing requirements.
Specifications
- CM502 – D-Value 49kN (10t) – CTA 045738
- CM504 – D-Value 84kN (16.5t) – CTA 045955
D -Value for Pintle Hooks
When selecting the proper pintle hitch, the towing capacity of pintle hitches has long been a mystery.
Towing capacity for Pintle Hooks is critical when selecting the correct pintle hook because the towing capacity changes depending on your truck and trailer weight.
Mismatched towing components wear and break prematurely.
Purchase similar Truck Pintle Hooks, Adaptors and Rings
- 6t Pintle Ring Coupling D-Value 47.5kN
- 75mm x 2t Ring Override Coupling
- 3.5t Combination Pintle Hook – 6t Ring Coupling
- Pintle Hook Tow Bar Adaptor (Cast)
- Pintle Towbar Adaptor
- 10t Truck Pintle Hook CTA-045738
Finally, the hitch rating is a force measurement due to dynamic testing (2,000,000 cycles at full load) where maximum pressure is applied to the pintle hitch. In the case of a Couplemate 10t pintle hook pintle ring on the right-hand side image, the “D-Value” is 49kN.
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
