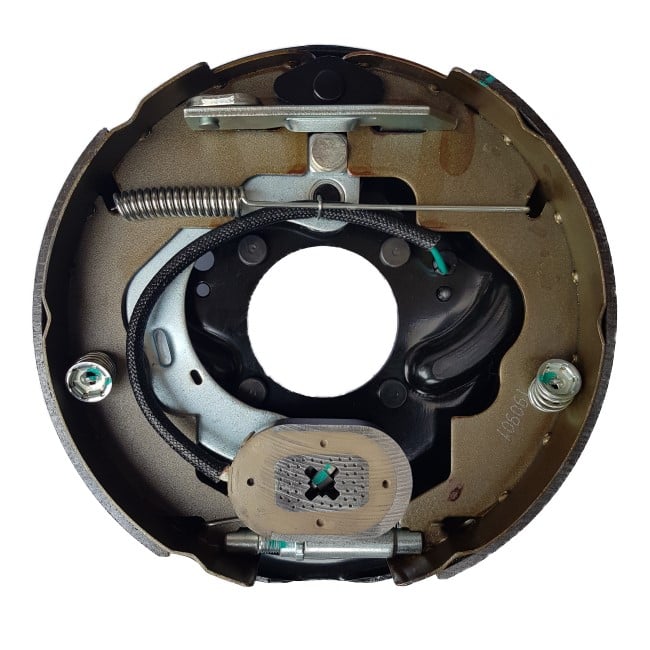

10-inch Electric Brake Backing Plate

SKU: N/A Category: Electric Backing Plate Brakes Brand: HongJ

Price

$76.50 Inc.GST

Side

Clear

Shipping

Select delivery location

Replacement 10 Inch Electric Brake Backing Plate

Electric drum brakes, like those employed in the automotive sector, are reliable and effective. 10 Inch Electric Brake Backing Plates are built to handle wet and dry highway conditions, suitable for caravans and trailers alike. Equipped with a specially crafted single-slit magnet, these brakes are designed to withstand rugged, uneven terrain.

The 10 Inch Electric Brake Backing Plate assembly arrives fully equipped, streamlining mounting on the bracket and offering convenience over replacing individual parts. Opting for high-quality brake parts is crucial for safety, as inferior backing plates can generate excessive heat, leading to overheated bearings and grease issues. Couplemate™ has been using these reliable backing plates for years, ensuring a safe choice for your trailer.

10 Inch Electric Brake Backing Plate Assembly Includes:

backing plate (one side)
brake magnet
brake shoes
retainer spring & clip
lever arm
brake adjuster nut & screw
brake adjuster socket

Key Features: 10 Inch Electric Brake Backing Plate

Easy Installation: Simplify the installation process with our 10″ Electric Backing Plate.
Low Maintenance: Designed for minimal upkeep, providing a reliable solution with less hassle.
Pre-Assembled: Brake shoes, magnet, and park brake lever come pre-assembled, streamlining the setup process.
Fits 10″ and 12-inch Brake Drums: Specifically engineered to suit 10″ and 12-inch brake drums, making it a perfect fit for your caravan’s braking system.

Highway Backing Plates are available for comparison below

Off-Road Backing Plates are available for comparison below

Do’s: Installation & Care

✔ Verify Side Orientation: Ensure you install the specific left-hand or right-hand plate on the correct side, as the park brake levers are direction-specific.
✔ Align Shoes & Adjusters: Ensure your brake shoe notches align perfectly with the brake adjuster to avoid drum overheating.
✔ Check Magnet Wear: Routinely check the built-in wear depth indicator holes on the magnet face; if they aren’t visible, replace the magnet.
✔ Match Compatibility: Verify your backing plate style (e.g., AL-KO or Dexter lever configurations) matches your existing hub drums.

Don’ts: Common Mistakes

✖ Don’t Tap Taillight Wires: Avoid wiring your brake magnets directly to the taillight circuit, as thin cables cause severe voltage drops.
✖ Don’t Ignore Uneven Wear: Do not patch-fix isolated parts; if one element of the backing plate is heavily worn, the rest are likely ready to fail.
✖ Don’t Force Off-Centre Shoes: Never complete an assembly if the shoes look distorted or off-centre from the main backing plate base.
✖ Don’t Overload the Axle: Do not exceed the recommended maximum axle capacity (typically 1600kg per pair for a standard 10″ setup).

Additional information

Weight	6 kg
Dimensions	30 × 30 × 10 cm
Bolt Holes	4 x 72mm
Brake Type	Electric
Stud Thread	7/16" UNF – 490200
Side	Drivers Side, Passengers Side
